DKM-260 User Manual
DKM-260
DESCRIPTION

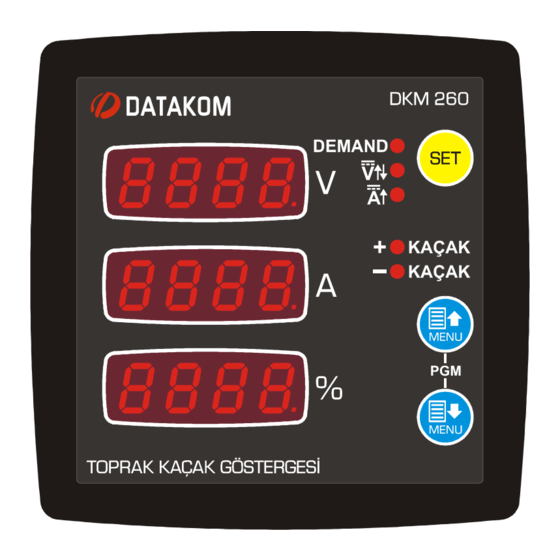

The DKM-260 is a precision instrument
designed for monitoring the status of earth
leakage in a DC supply busbar. It also
measures, displays and remote monitors
various DC parameters of a DC distribution
box.
The unit features a 32-bit ARM core
microcontroller.
The unit is supplied from the busbar voltage.
It accepts from 19 to 150VDC busbar
voltage.
The current input of the unit is isolated from
the rest of the circuit and has different circuit
options:
● External current shunt (standard)
● Internal current shunt
● Hall Effect sensor input
The relay output is programmable for its
function.
Thanks to its isolated RS-485 Modbus RTU
comport, the device is free from ground
potential difference issues and data are
safely transferred to automation and
monitoring systems. Program parameters
may be uploaded to the unit through the RS-
485 port.
FEATURES
● Indicates ground leakage in %
● DC analyzer functionality
● Programmable relay output
● Various current input options
● Demand records
● Fully isolated RS-485 serial port
● MODBUS-RTU communications
● Front panel programming
● Wide operating temperature range
● Sealed front panel (IP65 with gasket)
● Two part connection system
1
V-1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DKM-260 and is the answer not in the manual?

Questions and answers

Summary of Contents for Datakom DKM-260

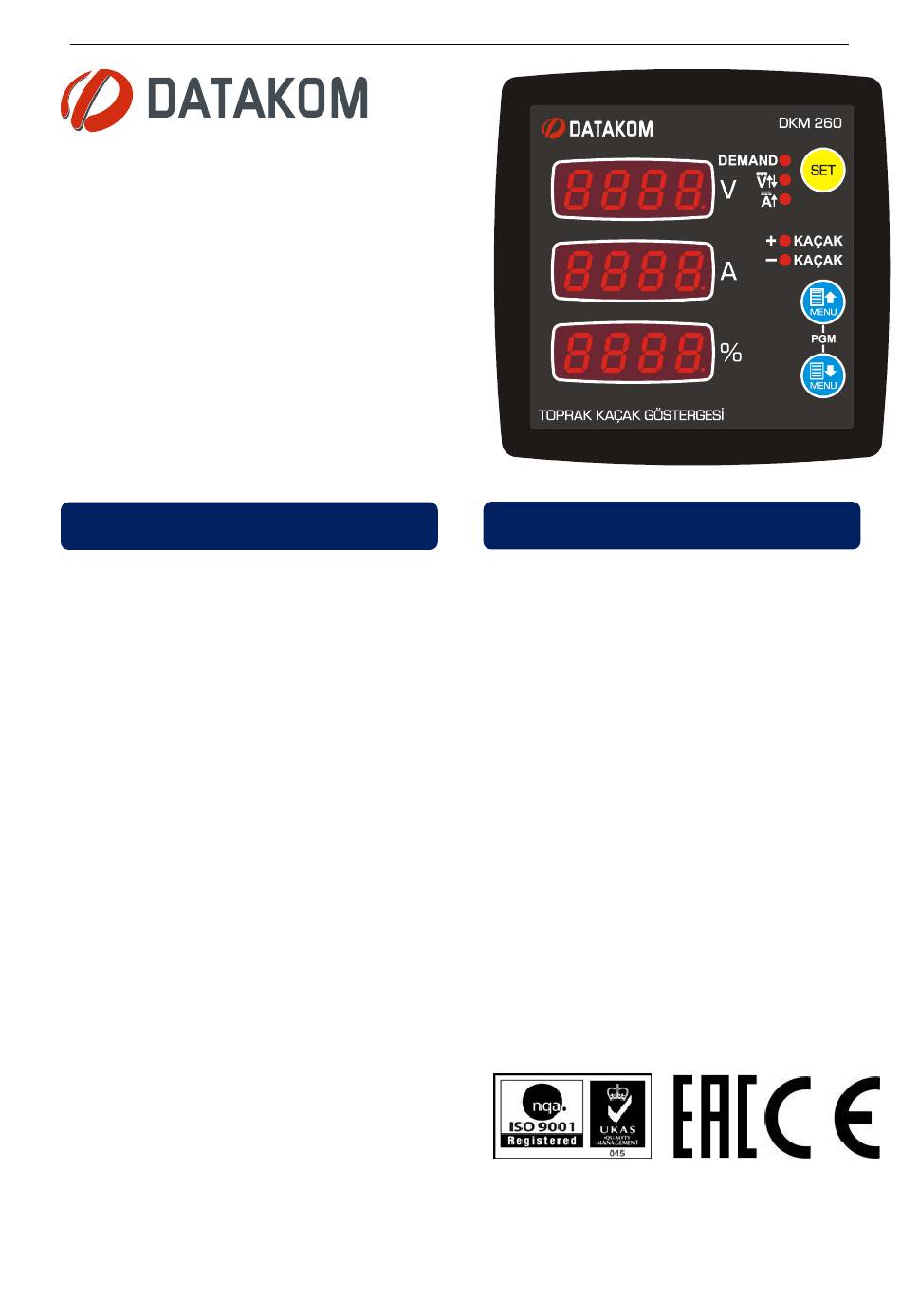

  • Page 1 V-1.0 DKM-260 DESCRIPTION FEATURES ● Indicates ground leakage in % The DKM-260 is a precision instrument designed for monitoring the status of earth ● DC analyzer functionality leakage in a DC supply busbar. It also ● Programmable relay output measures, displays and remote monitors various DC parameters of a DC distribution ●...
  • Page 2 DKM-260 User Manual V-1.0 SAFETY NOTICE Failure to follow below instructions will result in death or serious injury Electrical equipment should be installed only by qualified specialist. No responsibility is assured by the manufacturer or any of its subsidiaries for any consequences resulting from the non-compliance to these instructions.
  • Page 3: Table Of Contents

    DKM-260 User Manual V-1.0 TABLE OF CONTENTS Section 1. INSTALLATION INSTRUCTIONS 1.1 FRONT AND BACK PANELS 1.2 ELECTRICAL INSTALLATION 1.3 INSTALLATION DIAGRAM 2. PUSHBUTTON FUNCTIONS 3. SCREEN NAVIGATION 4. PROGRAMMING 4.1 ENTERING THE PROGRAMMING MODE 4.2 RESETTING DEMANDS 4.3 RESETTING ALARMS 4.4 ADJUSTING CURRENT MEASUREMENT INPUT...
  • Page 4: Installation Instructions

    DKM-260 User Manual V-1.0 INSTALLATION INSTRUCTIONS Before installation: Read the user manual carefully, determine the correct connection diagram. Remove all connectors and mounting brackets from the unit, then pass the unit through the mounting opening. Put mounting brackets and tighten. Do not tighten too much, this can damage the enclosure.
  • Page 5: Front And Back Panels

    DKM-260 User Manual V-1.0 1.1 FRONT AND BACK PANELS...
  • Page 6: Electrical Installation

    DKM-260 User Manual V-1.0 1.2 ELECTRICAL INSTALLATION Do not install the unit close to high electromagnetic noise emitting devices like contactors, high current busbars, switchmode power supplies and the like. Although the unit is protected against electromagnetic disturbance, excessive disturbance can affect the operation, measurement precision and data communication quality.
  • Page 7: Installation Diagram

    DKM-260 User Manual V-1.0 1.3 INSTALLATION DIAGRAM...
  • Page 8: Pushbutton Functions

    DKM-260 User Manual V-1.0 2. PUSHBUTTON FUNCTIONS Programlama ve ölçüm ekranlarına ön paneldeki 3 adet buton sayesinde ulaşılır. BUTTON FUNCTION PROGRAMMING: Save adjusted parameter and exit adjusting mode. Enter adjusting mode. Switch to the upper screen. PROGRAMMING: increase value Switch to the lower screen.
  • Page 9: Screen Navigation

    DKM-260 User Manual V-1.0 3. SCREEN NAVIGATION Buttons allow navigation between measurement values. The first screen displays voltage in volts (V), second screen displays current in amperes (A) and the third screen displays earth leakage in percantage (%) unit. If no led is on then it means that these are instantaneous measured values.
  • Page 10: Programming

    DKM-260 User Manual V-1.0 4. PROGRAMMING 4.1 ENTERING THE PROGRAMMING MODE In order to offer the maximum flexibility to the customer, the module has several programmable parameters. Measurement configurations Demand reset Alarm reset Current shunt configuration Alarm high/low limit adjustments...
  • Page 11: Resetting Demands

    DKM-260 User Manual V-1.0 4.2 RESETTING DEMANDS Parameter value 0: No operation 1: Reset demand counters Setting this parameter to 1 causes demand and max_demand values to be reset. The parameter value is not saved and always reads 0. 4.3 RESETTING ALARM...
  • Page 12: Adjusting Current Measurement Input

    DKM-260 User Manual V-1.0 4.4 ADJUSTING CURRENT MEASUREMENT INPUT This parameter adjusts the rated value of the current shunt in amperes. The factory set value is 40A Adjustement range is between 1 and 3200amperes This parameter adjusts the rated voltage of the current shunt in milivolts.
  • Page 13: Adjusting Current High Limit

    DKM-260 User Manual V-1.0 4.6 ADJUSTING VOLTAGE LOW AND HIGH LIMITS This parameter adjusts the upper limit of the high voltage alarm. If this parameter is set to 300 then high voltage is not monitored and no alarm occurs. Factory set value is 300V Adjustment range is between 0 and 300V This parameter adjusts the lower limit of the low voltage alarm.
  • Page 14: Adjusting The Demand Period

    DKM-260 User Manual V-1.0 4.8 ADJUSTING THE DEMAND PERIOD This parameter determines the demand period for voltage, current and power measurements. The average value is calculated during the demand period and at the end of the period new demand values overwrite older values.
  • Page 15: Alarm Configuration

    DKM-260 User Manual V-1.0 4.10 ALARM CONFIGURATION This parameter determines the delay between an earth leakage alarm condition occurs and the alarm given. Factory set value is 10. Adjustment range is 0 to 255 seconds. 0: Earth leakage alarm lock disabled...
  • Page 16 DKM-260 User Manual V-1.0 Adjustment range is 0 to 1. This parameter determines the delay between a high current alarm condition occurs and the alarm given. Factory set value is 3. Adjustment range is 0 to 255 seconds. 0: High current alarm lock disabled...
  • Page 17: Modbus Parameters

    DKM-260 User Manual V-1.0 4.11 MODBUS PARAMETERS This parameter determines the Modbus node address of the unit. Every unit in the same Modbus loop must have a different node address. Factory set value is 1. Adjustment range is 0 to 245.
  • Page 18: Displaying The Firmware Version

    DKM-260 User Manual V-1.0 4.12 DISPLAYING THE FIRMWARE VERSION end , End” The firmware version is displayed in te second line of the “end screen. Any inquiry to the manufacturer must state the firmware version in question. 4.13 CALIBRATION The unit leaves the production in a calibrated status.
  • Page 19 DKM-260 User Manual V-1.0 In the first current input sensitivity calibration mode, the first display will show “1CUR”. The second screen will display the measured instantaneous current from the input. The third display will display the calibration coefficient (high 4 digits only) Adjust UP and DOWN menu buttons until the value displayed in the second screen is correct.
  • Page 20: Lamp Test

    DKM-260 User Manual V-1.0 4.14 LAMP TEST When programming is over, hold pressed UP and DOWN MENU buttons for 2 seconds. The unit will exit program mode and will turn on all lights for lamp testing purpose. Check that all lights are on.
  • Page 21: Modbus Communications

    DKM-260 User Manual V-1.0 5. MODBUS COMMUNICATIONS 5.1. DESCRIPTION The unit offers serial data communication port allowing it to be integrated in automation systems. The serial port is of RS-485 MODBUS-RTU standard. It is fully isolated from power supply and measurement terminals for failure-free operation under harsh industrial conditions.
  • Page 22 DKM-260 User Manual V-1.0 The checksum value in the above message may be used for the verification of checksum calculation algorithm. The normal response will be: Byte Description Value Controller address same as in the query Function code Data lenght in bytes (L)
  • Page 23 DKM-260 User Manual V-1.0 Here is the sequence to write the value 0010h to the register 40h (64 decimal): 01 06 00 40 00 10 89 D2 (each byte is expressed as 2 hexadecimal characters) The checksum value in the above message may be used for the verification of checksum...
  • Page 24: Commands

    DKM-260 User Manual V-1.0 Error codes Only 3 error codes are used: 01: illegal function code 02: illegal address 10: write protection (attempt to write a read_only register) Data types Each register consists of 16 bits (2 bytes) If the data type is a byte, only the low byte will contain valid data. High byte is don’t care.
  • Page 25: Program Parameters

    DKM-260 User Manual V-1.0 5.3. PROGRAM PARAMETERS Program parameters of the unit may be read from below registers or program parameters may be set by writing to these registers. COEF ADRESS NAME DESCRIPTION DIMENS DATA TYPE Shunt max current Explained ch 4.4...
  • Page 26: Measurements And Controller Records

    DKM-260 User Manual V-1.0 5.4. MEASUREMENTS AND CONTROLLER RECORDS ADRESS NAME DESCRIPTION DIMENS DATA TYPE COEFF Voltage measured from 8192 32 BIT unsigned long 0.01 SUPPLY input (V) 8194 Current (A) 32 BIT unsigned long 0.01 Earth Leakage Voltage unsigned...
  • Page 27 DKM-260 User Manual V-1.0 Alarm status record is 16 bit long. Each bit indicates the existence of one alarm. DESCRIPTION + Earth Leakage (Alarm 0) - Earth Leakage (Alarm 1) High voltage (Alarm 2) Low voltage (Alarm 3) Overcurrent (Alarm 4)
  • Page 28: Technical Specifications

    Installation: Flush mounting with rear brackets Dimensions: 102x102x53mm (WxHxD) Panel Cutout: 92x92mm Weight: 200 gr EU Directives: Reference Standards: 2014/35/EC (LVD) EN 61010 (safety) 2014/30/EC (EMC) EN 61326 (EMC) DATAKOM Elektronik Ltd. Tel: +90-216-466 84 60 Fax: +90-216-364 65 65 e-mail: datakom@datakom.com.tr http: www.datakom.com.tr...
