Then use the 4 screws from step 1 to secure the IPS on the baseboard.
2.3.5
Replace the IPS Battery
1.
Remove the screws of IPS top cover.
2.
Open the top cover, remove the cable connector and pick up the battery. Take a
new battery replace it, then insert the battery cable connector, and secure the
top cover.

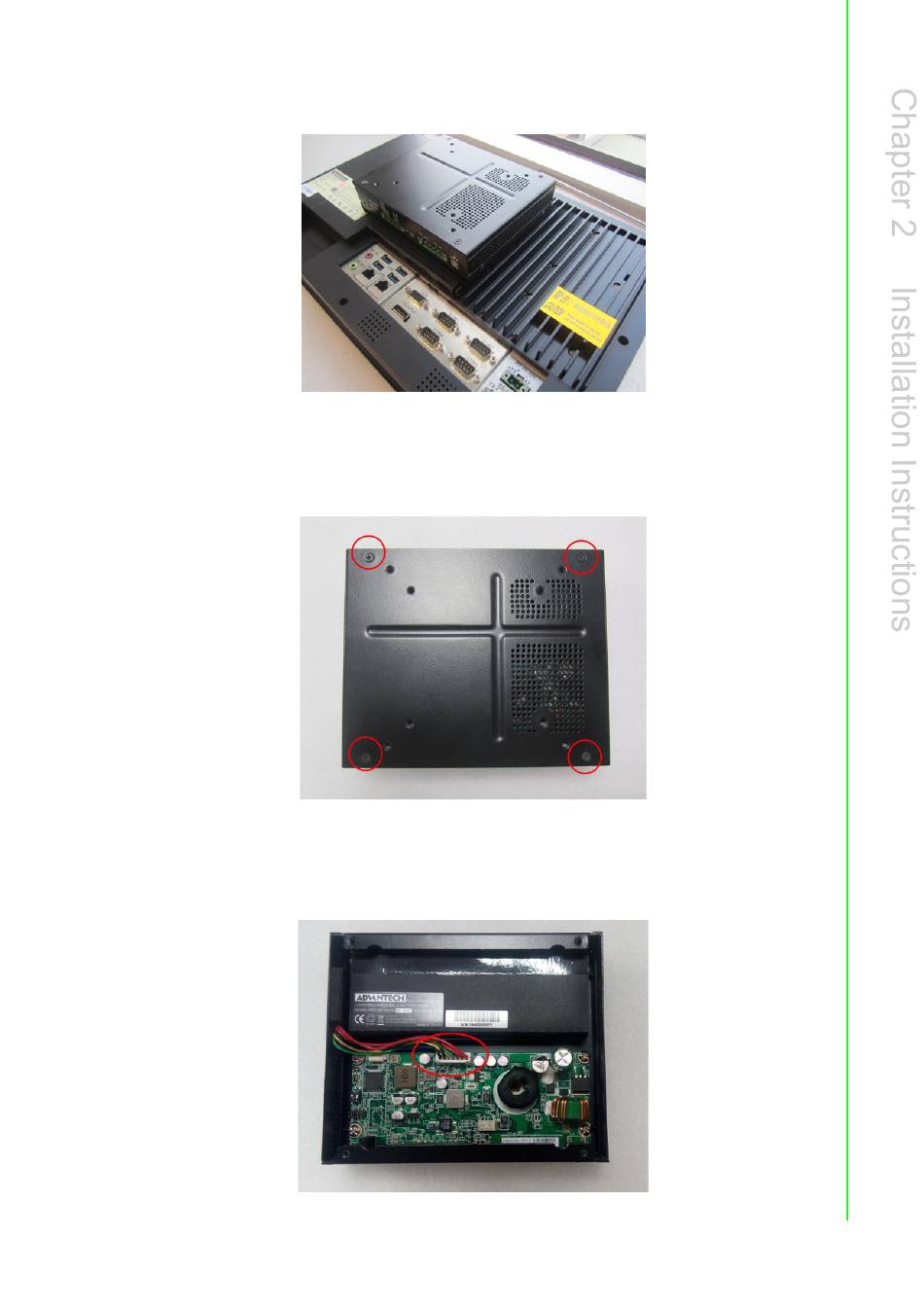

Figure 2.23 IPS on the backplate
Figure 2.24 Top cover screw positions
Figure 2.25 Open IPS Power connector position
19
PPC-IPS User Manual
