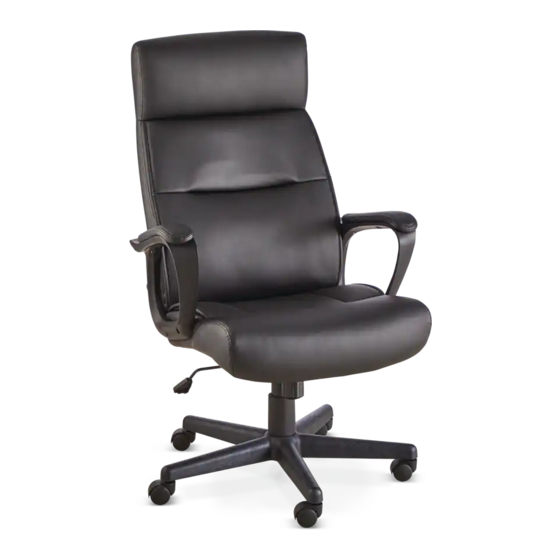

Executive faux leather office chair
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
EXECUTIVE FAUX LEATHER
OFFICE CHAIR
Product No. 168-0101-2
Assembly Instructions
NEED HELP? GIVE US A CALL!
WE'RE HERE FOR YOU.
TOLL-FREE:
1-877-483-6759
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 168-0101-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for for Living 168-0101-2

Summary of Contents for for Living 168-0101-2

  • Page 1 EXECUTIVE FAUX LEATHER OFFICE CHAIR Product No. 168-0101-2 Assembly Instructions NEED HELP? GIVE US A CALL! WE’RE HERE FOR YOU. TOLL-FREE: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
  • Page 2 From your first apartment to downsizing your family home, For LIVING ® is a great place to start. Uncomplicate your life with timeless style and reliable quality that delivers everyday solutions for your home. Let us know how our products work for you.

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions Technical Data Parts List Troubleshooting Exploded Parts Caring for Your Item Hardware List Warranty Before You Begin Assembly Step-by-step Guide Warning! Please use your furniture correctly and safely. Improper use can cause safety hazards or damage to your furniture or household items.

  • Page 4: Parts List

    Parts List Description Item Thumbnail Quantity Castor Base Gas Lift Telescopic Cover Seat Plate Seat Cushion Back Cushion Armrest (Left and Right) EXECUTIVE FAUX LEATHER OFFICE CHAIR...

  • Page 5: Exploded Parts

    Exploded Parts EXECUTIVE FAUX LEATHER OFFICE CHAIR...

  • Page 6: Hardware List

    Hardware List Item Description Thumbnail Quantity 5/16x32 mm Bolt 5/16x22 mm Bolt 1/4x25 mm Bolt Caps Hex Key EXECUTIVE FAUX LEATHER OFFICE CHAIR...

  • Page 7: Before You Begin Assembly

    Place packing materials back in the box. Do not dispose of packaging materials until assembly is complete. Read Each Step Carefully Make sure you understand each step. If you have any questions, call the For LIVING ® customer service centre at 1-888-660-6684 (toll free).

  • Page 8: Step-By-Step Guide

    Step-by-step Guide Step 1 Place the base (2) upside down on the ground. Insert the five castors (1) into the base. NOTE: Please make sure all castors are firmly inserted. EXECUTIVE FAUX LEATHER OFFICE CHAIR...
  • Page 9 Step-by-step Guide Step 2 Remove the cap on top of the gas lift (3). Turn the base (2) right side up, insert the gas lift (3) into the centre hole of base (2), and place the telescopic cover (4) over the gas lift (3).
  • Page 10 Step-by-step Guide Step 3 Attach the seat plate (5) to the base of the seat cushion (6) using bolts (A) and (B) and tightening with hex key (E). Note : Do not tighten screws all the way until you’ve assembled the chair.
  • Page 11 Step-by-step Guide Step 4 Carefully lower the seat plate (5) onto the gas lift (3). EXECUTIVE FAUX LEATHER OFFICE CHAIR...
  • Page 12 Step-by-step Guide Step 5 Attach the left and right armrests (8) to each side of the seat cushion (6) with bolts (C) and tighten 80% with the hex key (E). DO NOT fully tighten. Note : Do not tighten screws all the way until you’ve assembled the chair.
  • Page 13 Step-by-step Guide Step 6 Attach the back cushion (7) to the armrests (8) with bolts (C) and using the hex key (E). DO NOT fully tighten. Note : Do not tighten screws all the way until you’ve assembled the chair. Once assembly is complete, tighten each screw.
  • Page 14 Step-by-step Guide Step 7 Lift the back cushion (7) up and insert bolts (C) into each upper hole of armrests (8) and into the back cushion (7). Tighten bolts with hex key (E). EXECUTIVE FAUX LEATHER OFFICE CHAIR...
  • Page 15 Step-by-step Guide Step 8 Tighten all bolts using hex key (E). Place the caps (D) over the bolt holes in the armrests (8) — four caps per side. The assembly is complete. Note : Ensure all bolts are securely tightened using the hex key (E) before using this chair.

  • Page 16: Technical Data

    Technical Data 45 5/8 – 49 1/2'' (115.8 – 125.8 cm) 28 9/16'' (72.5 cm) 28 5/16'' (72 cm) Specifications Assembled Dimensions (W x D x H) 28 5/16 x 28 9/16 x 45 5/8 – 49 1/2'' 72 x 72.5 x 115.8 – 125.8 cm Assembled Weight 32.0 lb 14.5 kg...

  • Page 17: Troubleshooting

    Troubleshooting Need help? 1-877-483-6759 Give us a call! We’re here for you. Toll-free: Before returning your Call us first! If you have questions regarding your product product to store or require warranty assistance, please call our customer service helpline. Caring for Your Item Always keep children under close supervision while they are using or around this product.

  • Page 18: Warranty

    This product is not guaranteed against wear or breakage due to misuse and/or abuse. Model No. 168-0101-2 Made in China Imported by Trileaf Distribution Trifeuil Toronto, Canada M4S 2B8...
