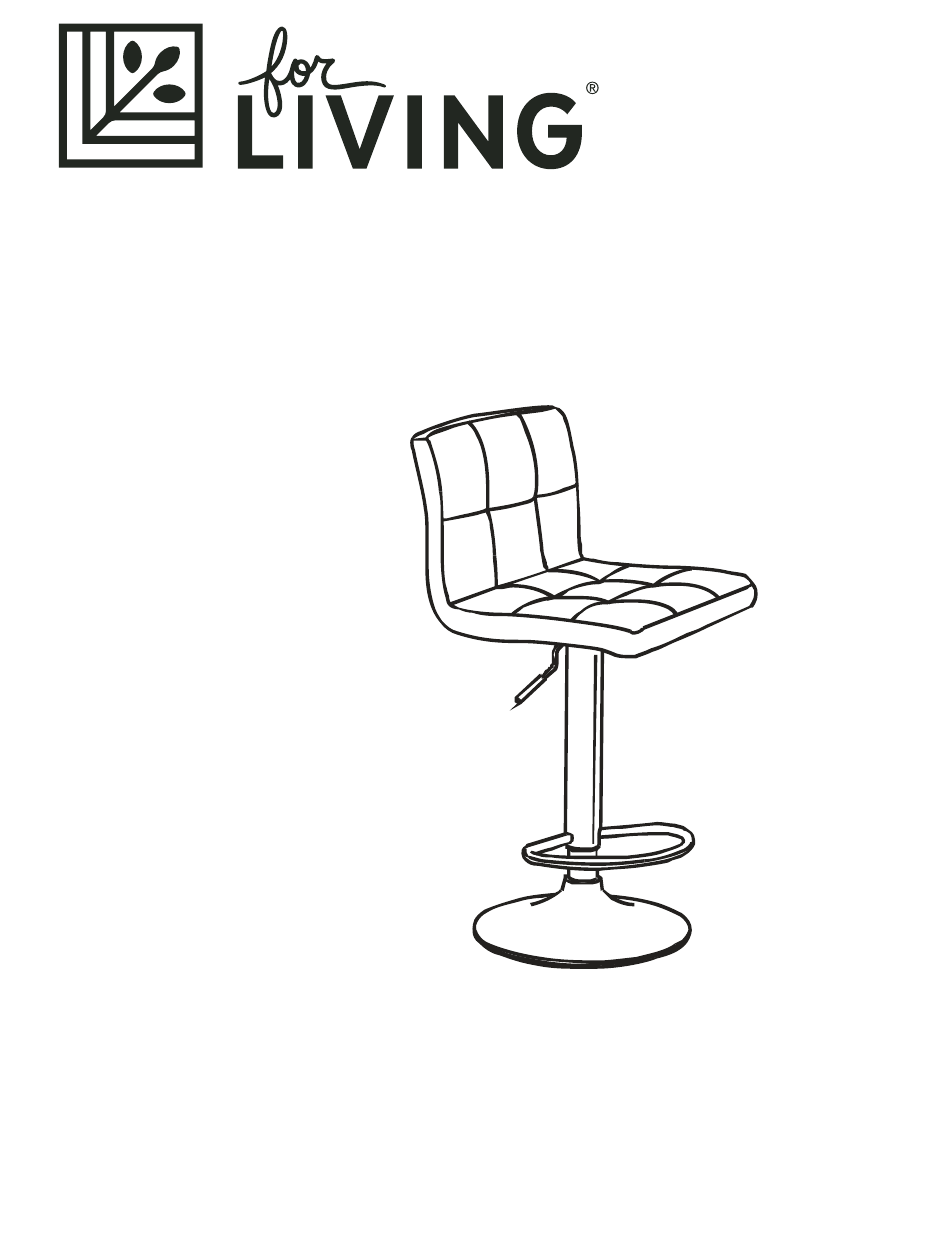

- Page 1 Tufted Bar Stool Product No. 068-7925-8 Model No. H-6302BK Assembly Instructions Toll free:1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.
- Page 2 When it comes to products for your home, it's essential they stand up to the realities of everyday family life. Designed with your family in mind, For Living™ products combine timeless style and family- friendly features. Now you can focus on what's important—creating lasting memories with your family.
- Page 3 Table of Contents Important Safety Instructions Part List Assembly Technical Specification Warranty Warning! To reduce the risk of serious injury, read the following safety instructions before assembling and using the chair. Caution! Always keep children under close supervision while they are using or around this product. Never leave children unattended.
- Page 4 Product No.068-7925-8 Model No. H-6302BK • Seat A-1 Footrest B-1 Gaslift C-1 Base D-1 6X18mm Seat bolt E-4...
- Page 5 Caution! • Keep children away during assembly. This product contains small parts which can be swallowed by children. • Keep fingers away from the places where they can be pinched or trapped. • Do not attempt to assemble the chair if any parts are missing. Let us help you! DO NOT RETURN YOUR PRODUCT TO THE STORE.
- Page 6 Product No. 068-7925-8 Model No. H-6302BK • Step 1 Requires C,D Remove the cap from the gas lift C .Insert gas lift C into base D as shown. Step 2 Requires A,B,E Align footrest B over pre-drilled holes on the underside of seat A with sector facing the front of the seat.Attach footrest B to seat with bolts E as shown.
- Page 7 Step 2 - requires C, W, X Step 3 Step 2 - requires C, W, X Place footrest B on gas lift C . Push down firmly until connection is secure. Step 3 - requires D, W, X Step 3 - requires D, W, X Step 3 - requires D, W, X Step 4 - requires J, W, X Step 12 - r...
- Page 8 Step 6 - requires Product No. 068-7925-8 Model No. H-6302BK • Step 7 Dimensions (L x W x H) 51 x 45 x 90-111 cm 20x17 1/2x35 1/2-43 1/2'' Product weight 7.5 kg 16 lb 8 1/2 oz Step 7 Maximum weight capacity 225 lb(102 kg) Step 8 - requires Q, R, S, W...
