for Living 168-0133-6 Assembly Instructions Manual

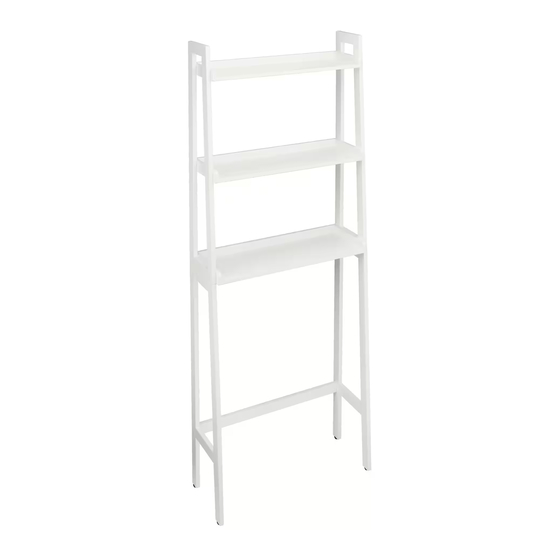

A-frame bathroom space saver
Hide thumbs

Advertisement

Quick Links

Download this manual
A-Frame Bathroom Space Saver
Product No. 168-0133-6
Assembly Instructions
NEED HELP? GIVE US A CALL!
WE'RE HERE FOR YOU.
TOLL-FREE:
1-877-483-6759
IMPORTANT: Please read this manual carefully
before beginning assembly of this product.
Keep this manual for future reference.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 168-0133-6 and is the answer not in the manual?

Questions and answers

Related Manuals for for Living 168-0133-6

Summary of Contents for for Living 168-0133-6

  • Page 1 A-Frame Bathroom Space Saver Product No. 168-0133-6 Assembly Instructions NEED HELP? GIVE US A CALL! WE’RE HERE FOR YOU. TOLL-FREE: 1-877-483-6759 IMPORTANT: Please read this manual carefully before beginning assembly of this product. Keep this manual for future reference.

  • Page 3: Table Of Contents

    Table of Contents Parts List Troubleshooting Caring for Your Item Before You Begin Assembly Step-by-step Guide Warranty Technical Data Warning! Please use your furniture correctly and safely. Improper use can cause safety hazards, or damage to your furniture or household items.

  • Page 4: Parts List

    Parts List Thumbnail Quantity Description Item Upper Left Frame Upper Right Frame Lower Left Frame Lower right Frame Top Shelf Middle Shelf Bottom Shelf Support rail Rail A-Frame Bathroom Space Saver...
  • Page 5 Exploded Parts A-Frame Bathroom Space Saver...
  • Page 6 Hardware List Thumbnail Quantity Item Description Hex Screws Hex Screws Wood Dowels Adjustable Feet Round Head Screws Round Head Screws Round Head Screw Round Head Screw Anti-tip Bracket Wall Anchor Hex Key S-shaped Hex Key Coated Paper Sticker A-Frame Bathroom Space Saver...

  • Page 7: Before You Begin Assembly

    Place packing materials back in the box. Do not dispose of packaging materials until assembly is complete. Read Each Step Carefully Make sure you understand each step. For any questions, contact For Living customer ® service centre at 1-888-670-6684 (toll-free).

  • Page 8: Step-By-Step Guide

    Step-by-step Guide Step 1 Insert one round head screw (H) through anti-tip bracket into the middle shelf (6). Tighten the round head screw. A-Frame Bathroom Space Saver...
  • Page 9 Step-by-step Guide Step 2 Insert six hex screws (A) through top shelf (5), middle shelf (6) and bottom shelf (7) into the upper right frame (2). Use the hex key (K) to tighten all hex screws. A-Frame Bathroom Space Saver...
  • Page 10 Step-by-step Guide Step 3 Insert six hex screws (A) through top shelf (5), middle shelf (6) and bottom shelf (7) into the upper left frame (1). Use the hex key (K) to tighten all hex screws. A-Frame Bathroom Space Saver...
  • Page 11 Step-by-step Guide Step 4 Insert one wood dowel (C) into the support rail (8). Insert three hex screws (B) through lower left frame (3) into support rail (8) and rail (9). Use the S-shape hex key (L) to tighten all hex screws. A-Frame Bathroom Space Saver...
  • Page 12 Step-by-step Guide Step 5 Insert one wood dowel (C) into the support rail (8). Insert three hex screws (B) through lower right frame (4) into support rail (8) and rail (9). Use the S-shape hex key (L) to tighten all hex screws. Screw four adjustable feet (D) into the bottom of lower left frame (3) and lower right frame (4).
  • Page 13 Step-by-step Guide Step 6 Insert six wood dowels (C) into the upper left frame (1), upper right frame (2) and bottom shelf (7). Insert two round head screws (E) through lower left frame (3) into upper left frame (1). Insert two round head screws (E) through lower right frame (4) into upper right frame (2). Insert two round head screws (F) through support rail (8) into the bottom shelf (7).
  • Page 14 Step-by-step Guide Step 7 Using the anti-tip bracket (I) as a guide, mark one spot on the wall. Drill a hole at the mark and hammer one wall anchor (J) into the wall. Fasten the anti-tip bracket (I) to the wall by screwing one round head screw (G) into the wall anchor (J). Tighten the screw.

  • Page 15: Technical Data

    Technical Data Specifications Assembled Dimensions (W x D x H) 25 x 10 x 66“ 63.5 x 25.5 x 168 cm Assembled Weight 16 1/2 lb 7.5 kg Maximum Weight Capacity (Each Shelf) 33 lb 15 kg A-Frame Bathroom Space Saver...

  • Page 16: Troubleshooting

    Assembly Troubleshooting Need help? 1-877-483-6759 Give us a call! We’re here for you. Before returning your If you have questions regarding your product product to store or require warranty assistance, please call our customer service helpline. Caring for Your Item Always keep children under close supervision while they are using or around this product.

  • Page 17: Warranty

    Warranty Warranty This For Living product carries a one (1) year warranty against defects in workmanship and materials. Trileaf Distribution agrees to replace the defective product free of charge within the stated warranty period, when returned by the original purchaser with proof of purchase.
