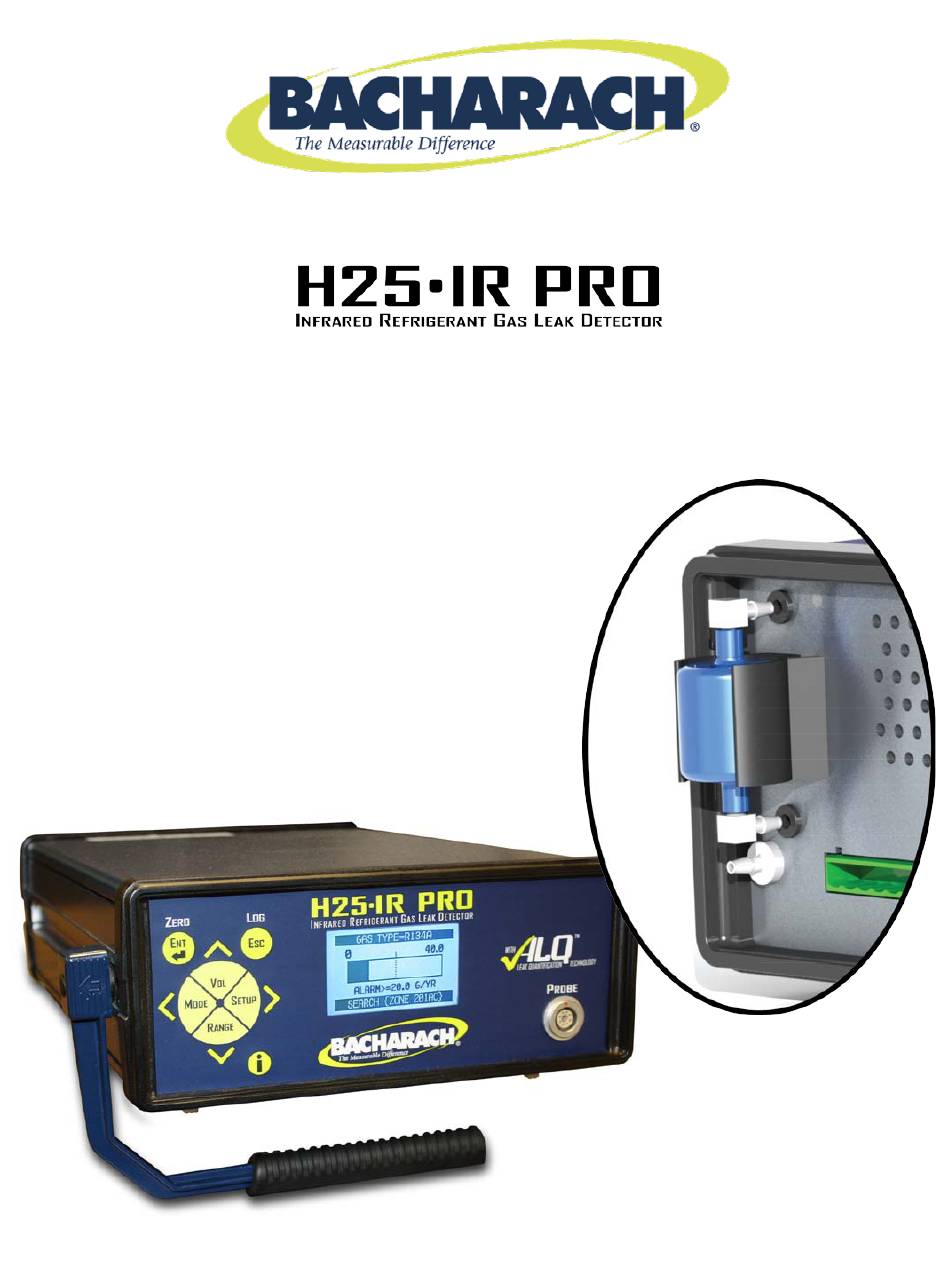

- Page 1 External Filter Retrofit Instruction 3015-9004 Revision 0 September 2014 Product Leadership • Training • Service • Reliability...
-
Page 2: Section 1: Introduction

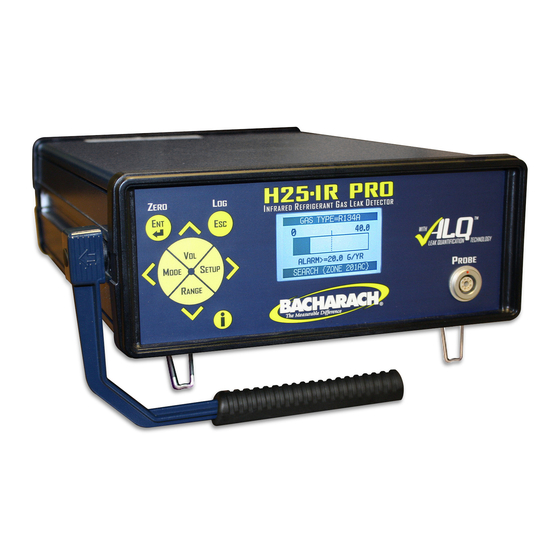

The previous generation of the H25-IR Pro leak detector had an internal filter that required disassembly for replacement. This was changed in the newer model of the H25-IR Pro to an external filter found at the rear of the instrument. The purpose of this document is to explain the procedure for upgrading an older-style H25-IR Pro leak detector to include the newer external filter. - Page 3 H25-IR PRO External Filter Retrofit 1.3. Retrofit Kit Contents The H25-IR PRO External Filter Retrofit Kit (P/N 3015-5817) comes with all required new components to adapt the H25-IR Pro to use the new external filter. Part Number Description 3015-5815 New rear panel; includes 1 new filter (P/N 3015-5816)
-
Page 4: Section 2: Replacement Process
H25-IR PRO External Filter Retrofit SECTION 2: REPLACEMENT PROCESS 2.1. Rear Plate Removal Step Description Unplug the AC power cord. Unplug the probe assembly. Remove the front and rear bezel by gently pulling at the left or right center point. - Page 5 H25-IR PRO External Filter Retrofit Step Description Disconnect the AC power entry module wires, noting the wire color and position. Remove the two lower chassis screws. Carefully pull the rear plate away from the back of the chassis. Locate the exhaust tube port inside the instrument, where it exits.
- Page 6 H25-IR PRO External Filter Retrofit Figure 2-1. Internal Tubing Comparison of Previous and Current Generations of the H25-IR Pro P/N: 3015-9004 Rev 0...
- Page 7 H25-IR PRO External Filter Retrofit Step Description Disconnect the sample inlet tubing from the inlet fitting by pulling gently. Locate the 17” (432 mm) long piece of tubing preinstalled on the new rear plate / external filter. The tubing is entering near the top of the ear plate, and has no other fitting attached.
-
Page 8: Section 3: Maintenance
As the top of the filter enters the clip it will be strongly pulled in. Double check the tubing, ensuring it is fully seated on the elbow fittings and is not kinked or pinched. Figure 3-1. Back Panel of the H25-IR Pro Showing the External Filter P/N: 3015-9004 Rev 0... -
Page 9: Service Centers
H25-IR PRO External Filter Retrofit 3.2. Service Centers Service and replacement parts can be obtained by contacting one of the following Bacharach Service Centers. United States Canada Bacharach, Inc. Bacharach of Canada, Inc. 621 Hunt Valley Circle 20 Amber St. Unit #7... - Page 10 H25-IR PRO External Filter Retrofit Headquarters: 621 Hunt Valley Circle, New Kensington, PA 15068 Website: www.mybacharach.com • E-mail: help@mybacharach.com Printed in U.S.A. ® Registered Trademark of Bacharach Inc. P/N: 3015-9004 Rev 0...
