Bacharach MGS-410 Quick Start Manual

Refrigerant gas detector for machinery rooms, cold rooms & freezers
Hide thumbs Also See for MGS-410:
Table of Contents

Advertisement

Quick Links

See also: User Manual
Refrigerant Gas Detector
for Machinery Rooms, Cold Rooms & Freezers
Refrigerant Leak Detection
O/N: 1100-2290 | November 2018 Revision 0
Quick Start
Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MGS-410 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bacharach MGS-410

Summary of Contents for Bacharach MGS-410

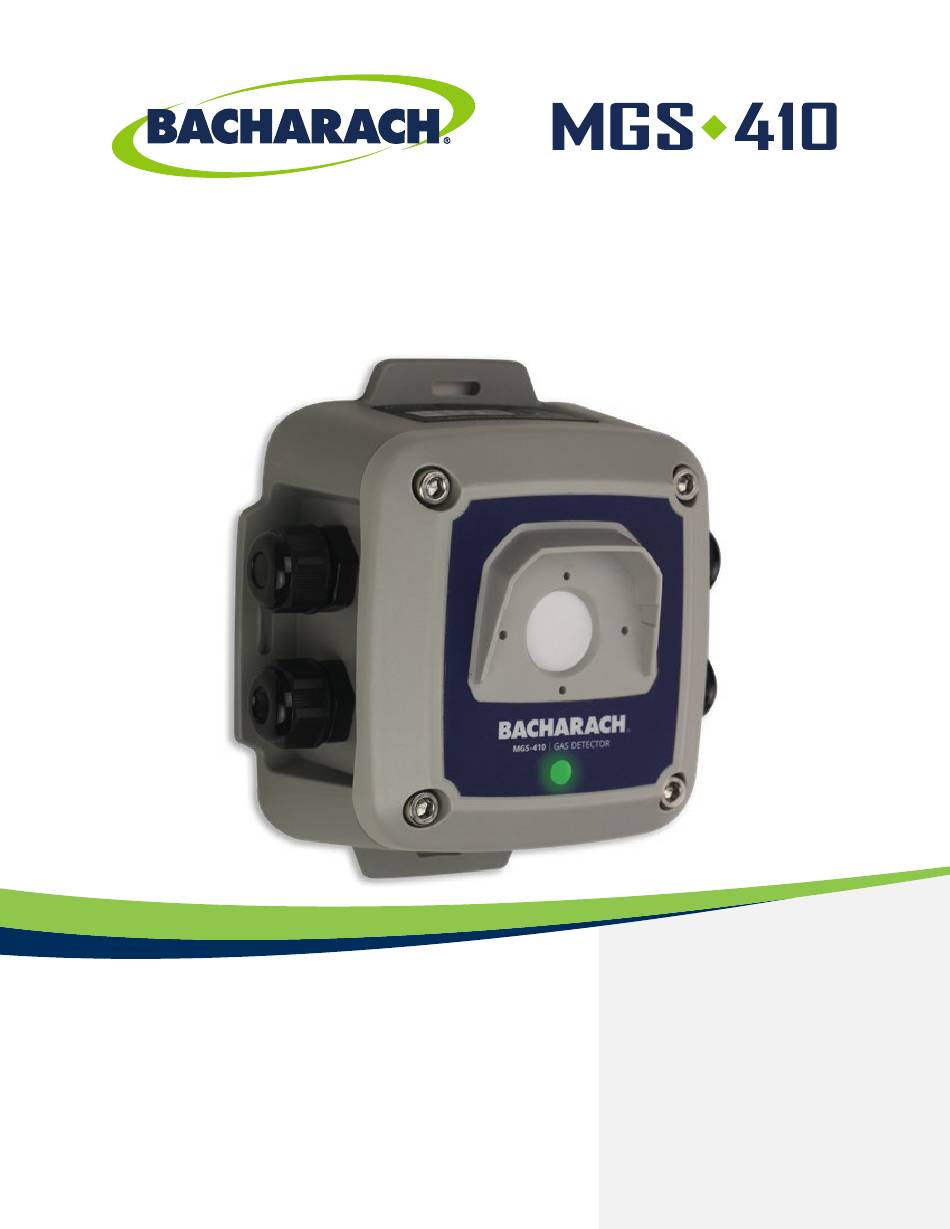

  • Page 1 Refrigerant Gas Detector for Machinery Rooms, Cold Rooms & Freezers Refrigerant Leak Detection Quick Start Guide O/N: 1100-2290 | November 2018 Revision 0...

  • Page 2: Safety Instructions

    1. Introduction The MGS-410 refrigerant gas detector is designed for use in refrigeration applications and may be used as a standalone device, connected to the MGS-408 controller, or connected to a facility’s BMS / BAS. It enables compliance with refrigerant safety codes (ASHRAE 15 and EN 378) and features audible and visual alarms to alert personnel in the event of a refrigerant leak.

  • Page 3: Component Overview

    Operators should be aware of the regulations and standards in their industry / locality for the operation of the MGS-410. TECHNICIAN USE ONLY: The MGS-410 must be installed by a suitably qualified technician who will install this unit in accordance with these instructions and the standards in their particular industry / locality.

  • Page 4: Key Specifications

    MGS-410 Quick Start Guide COMPONENT DESCRIPTION M16 Cable Glands (×4) Rubber Gasket Digital Connection / Modbus (In) Digital Connection / Modbus (Out) Tactile Switch #1 Tactile Switch #2 Ribbon Cable Connection (To Sensor) Power Connection (In) Internal Alarm Buzzer Power Connection (Out)
  • Page 5 MGS-410 Quick Start Guide Modbus: Connection: RS-485 terminal block Baud Rate: 9,600 (default) or 19,200 Data Bits: 8 Parity: None (default), odd or even Stop Bits: 1 (default) or 2 Retry Time: 500 ms (minimum) Power Supply: 19.5 to 28.5 VDC or 24 VAC ±20%; 4W...

  • Page 6: Installation

    MGS-410 Quick Start Guide 5. Installation IMPORTANT: The manufacturer of this product requires that a bump test or calibration be performed following installation to verify instrument functionality. STEP 1 | Mount Gas Detector & Remove Lid WARNING: DO NOT allow the lid / sensor to hang from the ribbon cable.
  • Page 7 MGS-410 Quick Start Guide STEP 2 | Wire Connections WARNING: Ensure that all wiring connections are made BEFORE applying power. IMPORTANT: Cable glands are meant to accomodate one cable. DO NOT use cable glands for more than one cable. 1. Locate connections (Modbus, Power) and remove terminal blocks from the PCBA.
  • Page 8 MGS-410 Quick Start Guide STEP 3 | Reinstall Sensor & Connect Lid WARNING: DO NOT leave excess cable inside of the gas detector housing. Failure to comply may result in damage to the produc IMPORTANT: To achieve proper seal in the IP66 version, the lid screws should be torqued to 15 to 20 lbf in (1.5 to 2.0 Nm.
  • Page 9 MGS-410 Quick Start Guide 6. Connect MGS-410 to MGS-400 App (User Discretion) The MGS-410 uses a smartphone application to allow users to interface with the gas detector. To download the app, scan here or visit www.mybacharach.com/ apps. IMPORTANT: Default alias, passkey and unlock code can be changed via the MGS-400 App’s configuration...

  • Page 10: Operation Overview

    MGS-410 Quick Start Guide 7. Operation Overview OUTPUT STATE Buzzer Warm-up Normal Low Alarm High Alarm Offline Fault Negative Gas Fault Zero Cal. Fault Span Cal. Fault INPUT STATE MAG #1 TRAP MAG #1 HOLD MAG #2 TRAP MAG #2 HOLD Warm-up ―...
  • Page 11 MGS-410 Quick Start Guide 8a. General Calibration Procedure WARNING: The MGS-410 MAY NOT be in an alarm or fault condition during calibration. Acknowledge any alarms or faults BEFORE attempting to begin the calibration process. WARNING: Except for CO2 or O2 sensors, calibration gas must be in a balance of air, not nitrogen (N2).
  • Page 12 MGS-410 Quick Start Guide 8b. Zero Adjustment WARNING: Except for CO2 or O2 sensors, ambient air may be used instead of zero gas if the area is know to be free of the target gas or any gases to which the sensor may be cross-sensitive.
  • Page 13 MGS-410 Quick Start Guide Part Number Serial Number 1100-XXXX Sensor Type YYMM#### GAS: CO2 Max Range 10000 PPM 11. C onfirm the start of calibration: MGS-400 App: press the Start Span button.  Manual: tap within 30-seconds or the instrument will time-out and return MAG#2 ...
  • Page 14 6. Allow sensor to recover / stabilize before the instrument returns to normal operation (green LED). USA Customer Service: +1 724 334 5000 CAN Customer Service: +1 905 882 8985 EU Customer Service: +353 1 284 6388 website: mybacharach.com | email: help@mybacharach.com Copyright © 2018 Bacharach, Inc. All Rights Reserved...
