IMPORTANT
Carefully remove all the parts from the carton and
place them individually on a soft cloth to prevent
scratches or other damage.
Carefully and strictly follow these assembly instructions
to ensure a completed product as designed.
Do not use power tools above 8 volts to assemble.

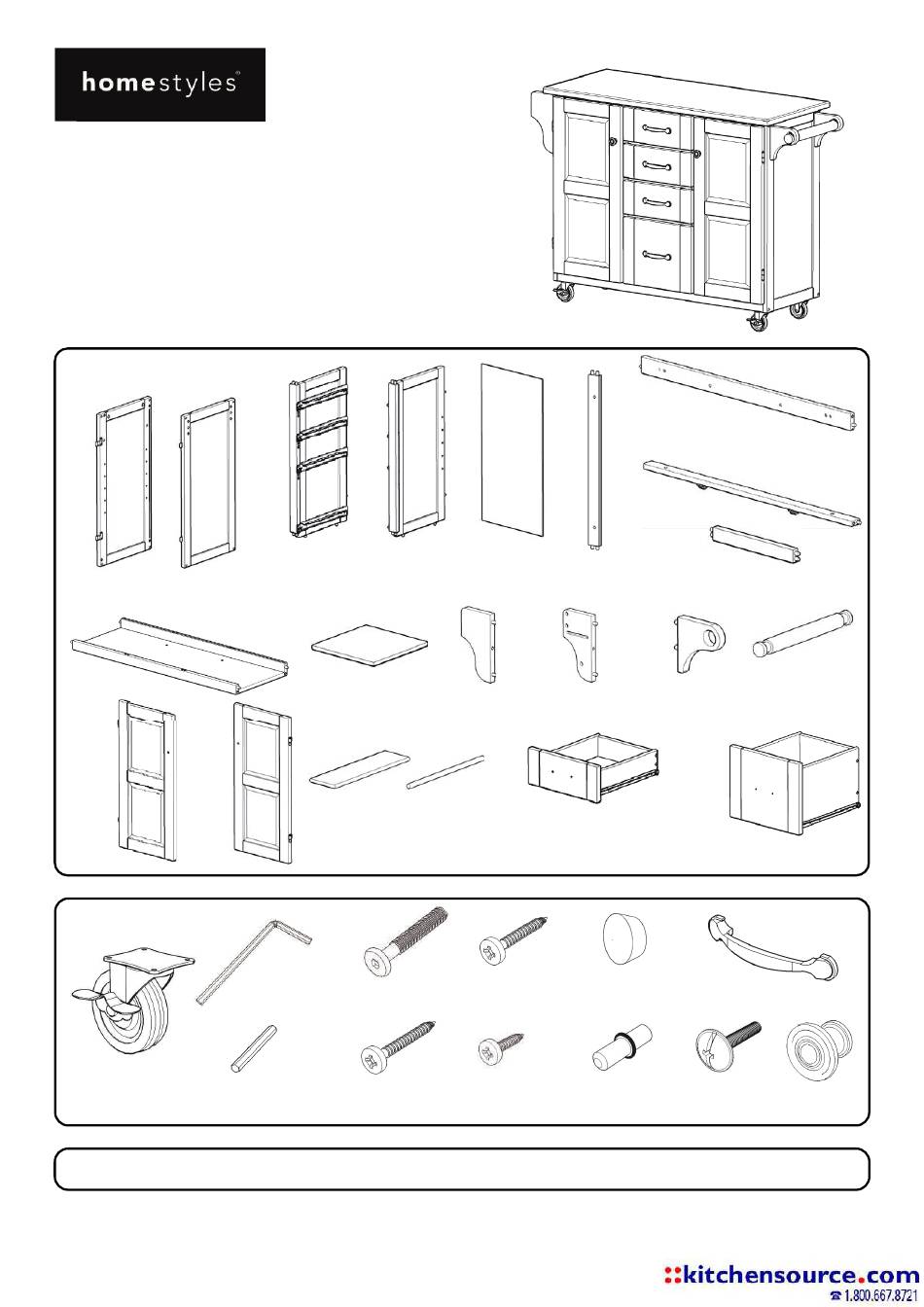

Part List
A.
B.
Side Panel
Side Panel
1 pc.
1 pc.
J.
Base
1 pc.
N.
O.
Door
Door
1 pc.
1 pc.
Hardware List
Hex Wrench
1 pc.
Caster
2 Locking
2 Non-Locking
Small Hex Wrench
4 pcs.
1 pc.
20 09100 Top carton is also needed for assembly.
Tool(s) required for assembly: Phillips screwdriver
Home Styles Customer Service: www.homestyles-furniture.com,
servicedesk@homestyles-furniture.com,
20 09100 001C
Kitchen Cart
C.
D.
Middle Panel
Middle Panel
1 pc.
1 pc.
K.
P.
Shelf
Rack Side
2 pcs.
1 pc.
R.
S.
Rack Base
Pipe
1 pc.
3 pcs.
M6x35
Head Cap Bolt
14 pcs. (+1 extra)
M3.5x25
Wood Screw (long)
32 pcs. (+1 extra)
G.
Back Rail
1 pc.
H.
Front Rail
1 pc.
E.
F.
Back Panel
Back Upright
3 pcs.
2 pcs.
Q.
Rack Side
1 pc.
T.
Drawer
3 pcs.
Refer to later page(s) of these
instructions for drawer assembly.
M4x16
Wood Screw
Wood Plug
16 pcs. (+1 extra)
10 pcs. (+1 extra)
M3.5x13
Wood Screw (short)
Adjustable Pin
24 pcs. (+1 extra)
8 pcs. (+1 extra)
888-680-7460, 877-831-0319
I.
Front Rail
3 pcs.
L.
M.
Arm Handle
Arm
2 pcs.
1 pc.
U.
Drawer
1 pc.
Handle
4 pcs.
M4x25
Machine Screw
Knob
2 pcs.
10 pcs.
