- Page 1 Metcalfe Ti32R Meat Mincer Installation & Operating Instructions 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
-
Page 3: Table Of Contents
Index Your Mincer ………………………………………………………………………………………….. Technical Data …………………………………………………………………………………………. Optional Accessories ………………………..........Installation - Unpacking ..................- Location ................... - Electrical Connection ………………………………………………………………… Operation ………………………………………………………………………………………………….. Cleaning Instructions ..................Troubleshooting ……………………………………………………………………………………….. Spare Parts & Service Contact Details ............Warranty ...................... -
Page 4: Your Mincer

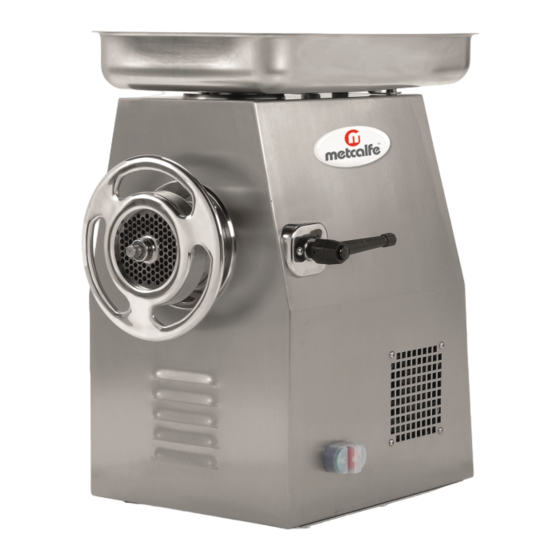

Your Mincer 1. Loading hopper 2. Machine body 3. Control switch ON / OFF 4. Mouth lock lever 5. Locking handwheel Grinding Unit Assembly 1. Grinding mouth/mincing barrel 2. Feed screw 3. Cutting knife 4. Drilled extrusion plate (6mm) 5. Locking handwheel... -
Page 5: Technical Data
Metcalfe Ti32R Meat Mincer The Metcalfe Ti32R is a heavy-duty meat mincer offering excellent performance with an output of up to 600kgs of meat per hour. Features Structured in cast alloy covered entirely in stainless steel • Output of up to 600kg per hour •... -
Page 6: Optional Accessories
Optional Accessories If you require a finer or coarser grind there are a range of different sized extrusion plates available. Please contact our sales department (see page 9 for contact details): Part No. Product Description FM0413/3 Extrusion Plate – 3mm FM0414/3.5 Extrusion Plate –... -
Page 7: Installation
Installation Unpacking Unpack the mincer immediately after receipt. Please inspect the mincer to ensure no damage has occurred in transit and that all parts have been provided. If the machine is found to be damaged, keep all the packaging material and contact us immediately or contact your source of the equipment. Never attempt to operate the machine with damaged parts. -
Page 8: Operation
6. Lock into place using the mouth lock lever 7. Ensure the hopper is in position in the machine neck. The Ti32R is fitted with a safety microswitch which will prevent the machine from working if the hopper is not in position 8. -
Page 9: Cleaning Instructions
If the machine is making unusual noises or traces of oil are found on the feed screw or elsewhere, the machine must be turned off and an engineer visit arranged. WARNING – IF EQUIPMENT DOES NOT WORK, PLEASE ENSURE IT IS SERVICED BY A METCALFE APPOINTED ENGINEER... - Page 11 Spare Parts and Service For more information on Metcalfe spare parts, accessories and service support, including breakdown drawings and parts lists please contact us on the details below. Please always quote the Serial Number of the machine. This can be found on the serial number plate which is located on the rear of the machine.
-
Page 12: Warranty
2 year parts only) and full after sales service. All Metcalfe MP mixers and EC20 chipper are covered by a 3-year warranty (1st year parts and labour, 2nd & 3rd year parts only) and full after sales service. - Page 13 NS Slicers Potato Peelers Ceado Roband 3/2022 Metcalfe Catering Equipment Ltd Haygarth Park Blaenau Ffestiniog Gwynedd, LL41 3PF 01766 830 456 sales@metcalfecatering.com www.metcalfecatering.com...
