INSTRUCTIONS AND MAINTENANCE
MOD. ARGO / ARGO BLOWING 2011
Read the directions carefully before operating.
Don't use the machine differently from following description.
1.
SPECIFICATIONS
MODEL:
POWER SUPPLY:
TOTAL INSTALLED POWER:
IRON POWER:
BOILER POWER:
BOARD POWER:
SUCTION POWER:
BLOWING POWER:
PUMP POWER:
ARM POWER:
BOILER CAPACITY:
IRONING ENDURANCE:
OPERATING STEAM PRESSURE:
WEIGHT:
OVERALL DIMENSIONS:
MADE IN ITALY
Argo 2011 ver.02
ARGO – VACUUM
(2011)
230 V / 50 Hz
4178 W
800 W
2600 W
600 W
0,2 Hp=130 W
---
48 W
150 W (optional)
3 L.
CONTINUOUS
4 BAR
39 kg.
47x137x93 h. cm.
IRONING ARM
TABLE COVER
IRON CONNECT
PLUG
SOLENOID
VALVE
EXHAUST
TAP
HOSE HOLDER
FOR WATER INLET
CABLE SUPPORT
BLOWING PEDAL
VACUUM PEDAL
1
ARGO - VACUUM + BLOWING
(2011)
230 V / 50 Hz
4308 W
800 W
2600 W
600 W
0,2 Hp=130 W
0,2 Hp=130 W
48 W
150 W (optional)
3 L.
CONTINUOUS
4 BAR
42 kg.
47x137x93 h. cm
IRON
IRON REST
AIR EXHAUST
FOR VACUUM
UNIT
FRONT PANEL

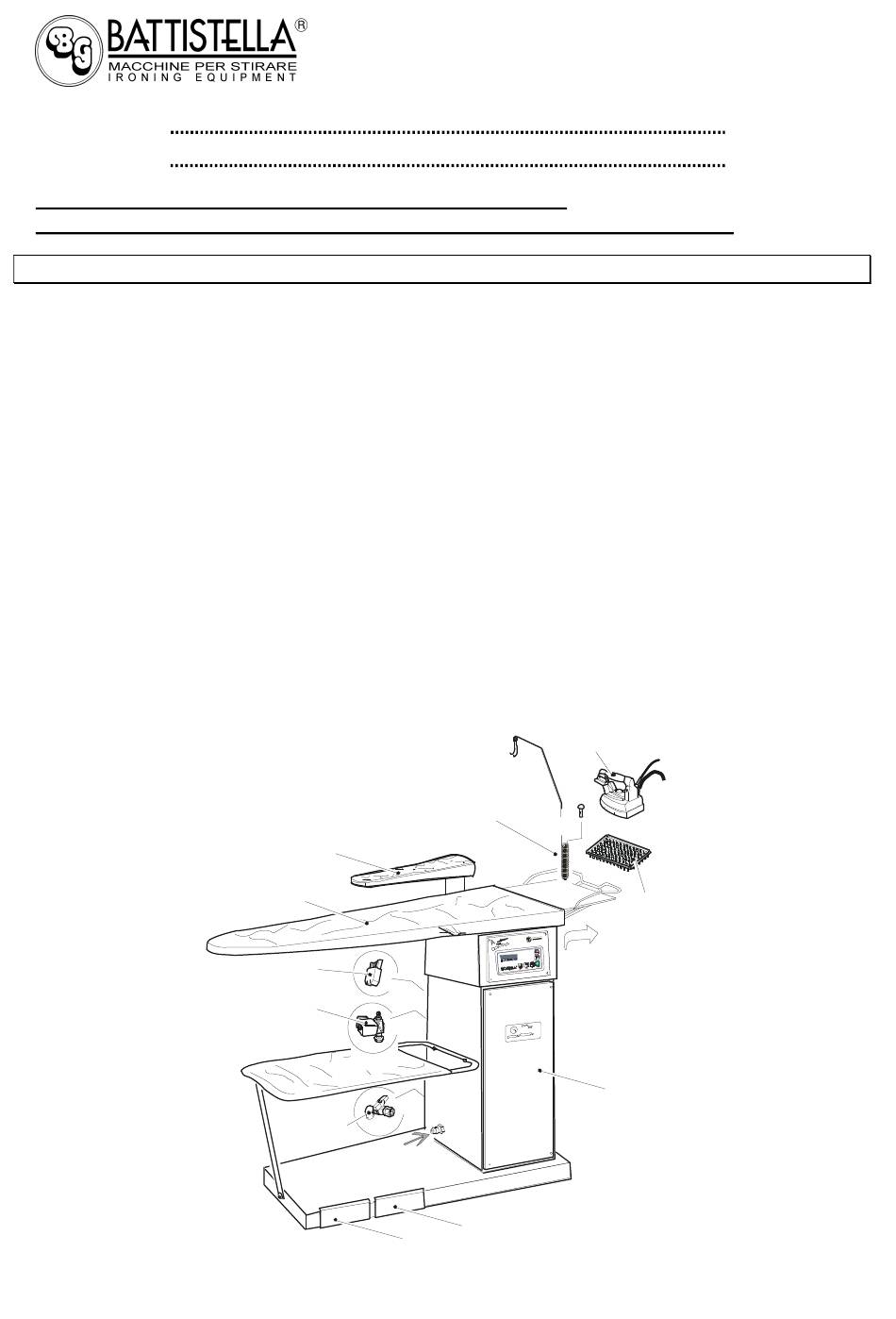

Fig. 1
2011

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARGO and is the answer not in the manual?

Questions and answers

Summary of Contents for battistella ARGO

  • Page 1 INSTRUCTIONS AND MAINTENANCE MOD. ARGO / ARGO BLOWING 2011 Read the directions carefully before operating. Don’t use the machine differently from following description. SPECIFICATIONS MODEL: ARGO – VACUUM ARGO - VACUUM + BLOWING (2011) (2011) POWER SUPPLY: 230 V / 50 Hz...
  • Page 2: Standard Mode

    10 ATM. (diameter of water inlet 8/13 mm); it must be fixed tightly with 2 hose clamps. N.B.: before inserting the rubber tube into ARGO hose holder, you must exhaust a few litres of water in order to clean the conduit;...
  • Page 3: Standby Mode

    Turn off the main switch, wait for 5 seconds and turn the machine on again. If the problem reoccurs, contact Authorized Service Centre Light :Indicates that the maximum number of hours set for the general maintenance of the machine has been exceeded Argo 2011 ver.02 2011...
  • Page 4: Connection And Starting

    5. To adjust the steam flux you must work on the steam adjustment tap (fig. 1: solenoid valve). 6. After this, ARGO is ready for use. During ironing the icon of the boiler may remain intermittent (card is raising steam) or fixed (optimum pressure), indicating that ARGO is working properly.
  • Page 5 KEY TONE To confirm To exit KEY TONE KEY TONE Used to activate or deactivate the acoustic signal when keys are pressed. If you wish the acoustic signal to be activated, press KEY TONE ON. Argo 2011 ver.02 2011...
  • Page 6 4. Never leave hot iron on board. 5. Connect ARGO to suitable protected outlet. 6. After ironing is over, switch ARGO off and close the water; remember to open the water before switching on the machine again (for ARGO connected to the water system).
  • Page 7: Electrical Risks

    6. ARGO is equipped also with a pedal for blowing device: it is used to blow air from the board to garments. THERMOSTAT Fig. 3 Fig. 4 11. ELECTRICAL RISKS The following situations are considered dangerous for the operator: damage of iron cables (fig. 3), loss of water from iron (fig.
  • Page 8 4. replacement of the steam hose: to be done when iron and boiler are turned off and are cold (fig. 2), 5. cleaning of the water inlet filter (fig. 4) and cleaning of the foot valve filter (ARGO with water tank – fig. 1).
  • Page 9: Packing, Storage And Transport

    7 years. 18. PACKING, STORAGE AND TRANSPORT ARGO can be packed with cellophane, on a pallet or in a cardboard box (never turn it upside down!). It is not a stiff package, therefore it is not shock-resistant. We advise you to handle the box with the maximum care.
  • Page 10 (included, without any limitation, consequential damages due to loss or no profit, cutback or any other economical loss) deriving from the use of a BATTISTELLA machine, even in case the Company had been previously informed of such kind of possibility.
