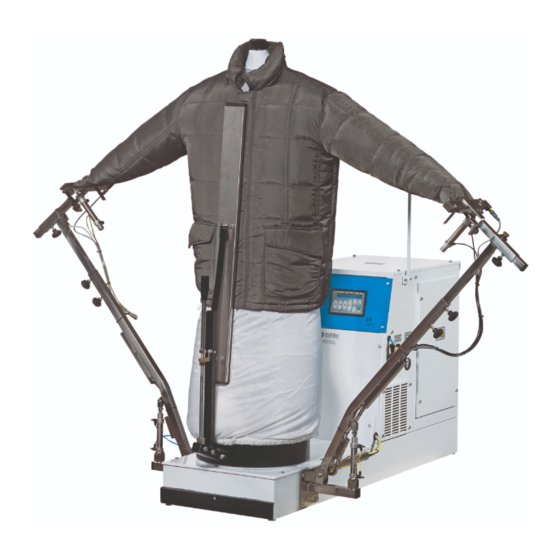

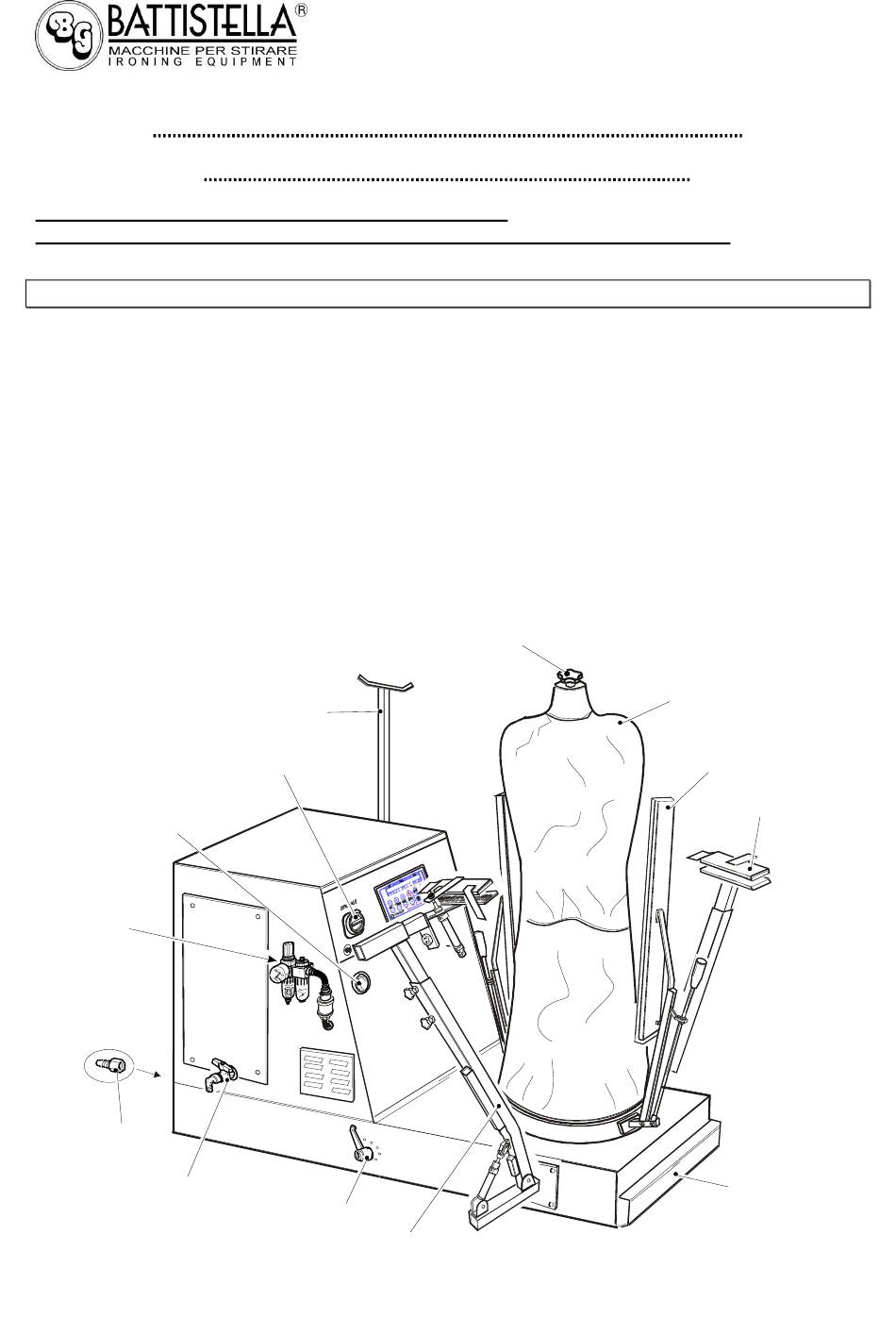

INSTRUCTIONS AND MAINTENANCE
PNEUMATIC ZEUS/A mod. 2009
Read this manual carefully before operating.
Don't use the machine differently from the following instructions.
1. SPECIFICATIONS
MODEL:
POWER SUPPLY:
TOTAL INSTALLED POWER:
BOILER POWER:
VACUUM/BLOWING MOTOR POWER:
PUMP POWER:
BOILER CAPACITY:
IRONING ENDURANCE:
OPERATING STEAM PRESSURE:
WEIGHT:
OVERALL DIMENSIONS:
MADE IN ITALY
BOILER
MANOMETER
AIR
INLET
WATER
INLET
DISCHARGE TAP
PNEUMATIC ZEUS mod. 2009
SUPPORT
MAIN SWITCH
AIR REGISTER
ARM
PNEUMATIC ZEUS/A mod. 2009
V 400 + NEUTRAL
W 11850
W 9000
HP 1,75 / HZ. 50
HP 0,8 / HZ. 50
L. 10
CONTINUOUS
BAR 4,5
KG. 160
cm 150x195x170 h.
KNOB
page 1
COVER
PADDLE
CLAMPS
PEDAL
Fig. 1
January 2009

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PNEUMATIC ZEUS/A and is the answer not in the manual?

Questions and answers

Related Manuals for battistella PNEUMATIC ZEUS/A

Summary of Contents for battistella PNEUMATIC ZEUS/A

  • Page 1 INSTRUCTIONS AND MAINTENANCE PNEUMATIC ZEUS/A mod. 2009 Read this manual carefully before operating. Don’t use the machine differently from the following instructions. 1. SPECIFICATIONS MODEL: PNEUMATIC ZEUS/A mod. 2009 POWER SUPPLY: V 400 + NEUTRAL TOTAL INSTALLED POWER: W 11850...
  • Page 2 2. IMPORTANT Before installing ZEUS, it is necessary to set up the following facilities next to where it will be installed: 1. a water connection (tap with hose holder). ZEUS will be connected to the tap with hose holder named WATER INLET (fig. 1) thanks to a rubber hose with a pressure capacity of at least 10 ATM.
  • Page 3 5. USE OF KEYS - STANDARD MODE Verify that the electronic card is in “standard” mode. “Super-heater temperature” increase/decrease keys. Adjustable from 120°C to 260°C. Upon pressing one of the keys the temperature set by the operator will be displayed (SUPER-HEATER TEMPERATURE). If no key is pressed after 5 °C seconds, the timings for the 3 phases will be displayed (steam, air-steam, air).
  • Page 4 Key which allows you to exit the current function. Key which allows you to scroll up or down. °C DOWN DOWN Key which allows you to reset warnings such as: filter RESET cleaning, probe cleaning, cover changing and zeroing of partial hours.

  • Page 5: Connection And Starting

    Signals that the maximum number of hours set for the cleaning of the boiler’s probe has been exceeded. Clean the probe and reset the warning (see CLEANING OF PROBE - SET & RESET ). Signals an anomalous overheating of the boiler. The type of warning can be read on the display.
  • Page 6 FILTER Reset To exit WARNING RESET COVER RESET PROBE Reset is necessary in order to delete the warnings from the display once maintenance has been done. Example: is displayed. WARNING: PROBE CLEANING NEEDED 1. Gain access to SET, 2. find RESET WARNINGS 3.
  • Page 7 11. USE OF CLAMPS The functioning of clamps and arms is CLAMPS automatic. You just need to insert the SLIT FOR SLEEVE garments sleeves into the special slit; INTRODUCTION as soon as Zeus notices the presence of the sleeves, it will tighten the clamps. If the sleeves are inserted incorrectly, CLAMPS OPENING by pushing for a couple of seconds the...
  • Page 8 14. ARMS AND CLAMPS PRESSURE ADJUSTMENT possible adjust closing pressure of the clamps and the traction ADJUSTMENT (opening) and return (closing) pressure of FOR ARM RETURN the arms by using the special knobs. By ADJUSTMENT increasing the pressure, the force exerted FOR CLAMPS on the garment by clamps and arms CLOSING...
  • Page 9 16. USE OF MEMORIZED IRONING PROGRAMS By pushing the key shown on the left it is possible to choose between the 20 stored ironing programs. The UP, DOWN keys are used to scroll the pre-stored ironing programs as well as a manual personalized °C program.

  • Page 10: Working Cycle

    17. WORKING CYCLE After having started the boiler (when the boiler is under pressure the “steam” icon will turn off), carried out all the adjustments and chosen the program, ZEUS is ready for use. To start the automatic cycle, just insert the sleeves into the clamps. ZEUS will automatically tighten them.

  • Page 11: Electrical Risks

    19. COMPULSORY 1. Use only tap water. 2. Never add additives to water. 3. Empty the boiler once a week, making sure the boiler pressure is not over 0,5 BAR (fig. 1: manometer). To carry out this operation, open the exhaust tap very slowly.
  • Page 12 23. INTERVENTIONS AND SMALL REPAIRS TO BE CARRIED OUT WITH THE MACHINE COLD AND SWITCHED OFF. 1. Replace the dummy cover (fig. 1) every 700 hrs. of operation or maximum 6 months. A dirty or ruined cover reduces the performance of the machine. Wash or replace the dummy cover even earlier if it is ruined (the necessary substitution of the cover is signalled by the icon on the display).

  • Page 13: Motor Overheating

    25. CLEANING OF BOILER PROBE To clean the probe of the boiler, do as follows: PROBE 1. open the rear panel of the machine; 2. find the boiler and the probe; 3. unscrew the probe by using a wrench and take it out; 4.
  • Page 14 230V 315mA 230V 15A Fig. 9 230V 2A 230V 4A 230V 5A 230V 5A 230V 4A 230V 4A 230V 4A 1. Contactor 2. Sleeve stretch. arm 3. Left clamps 4. Right clamps 5. Pump 6. Blowing motor 7. Steam solenoid valve 8.

  • Page 15: Packing, Storage, And Transport

    (included, without any limitation, consequential damages due to loss or no profit, cutback or any other economical loss) deriving form the use of a BATTISTELLA machine, even in case the Company had been previously informed of such kind of possibility.
