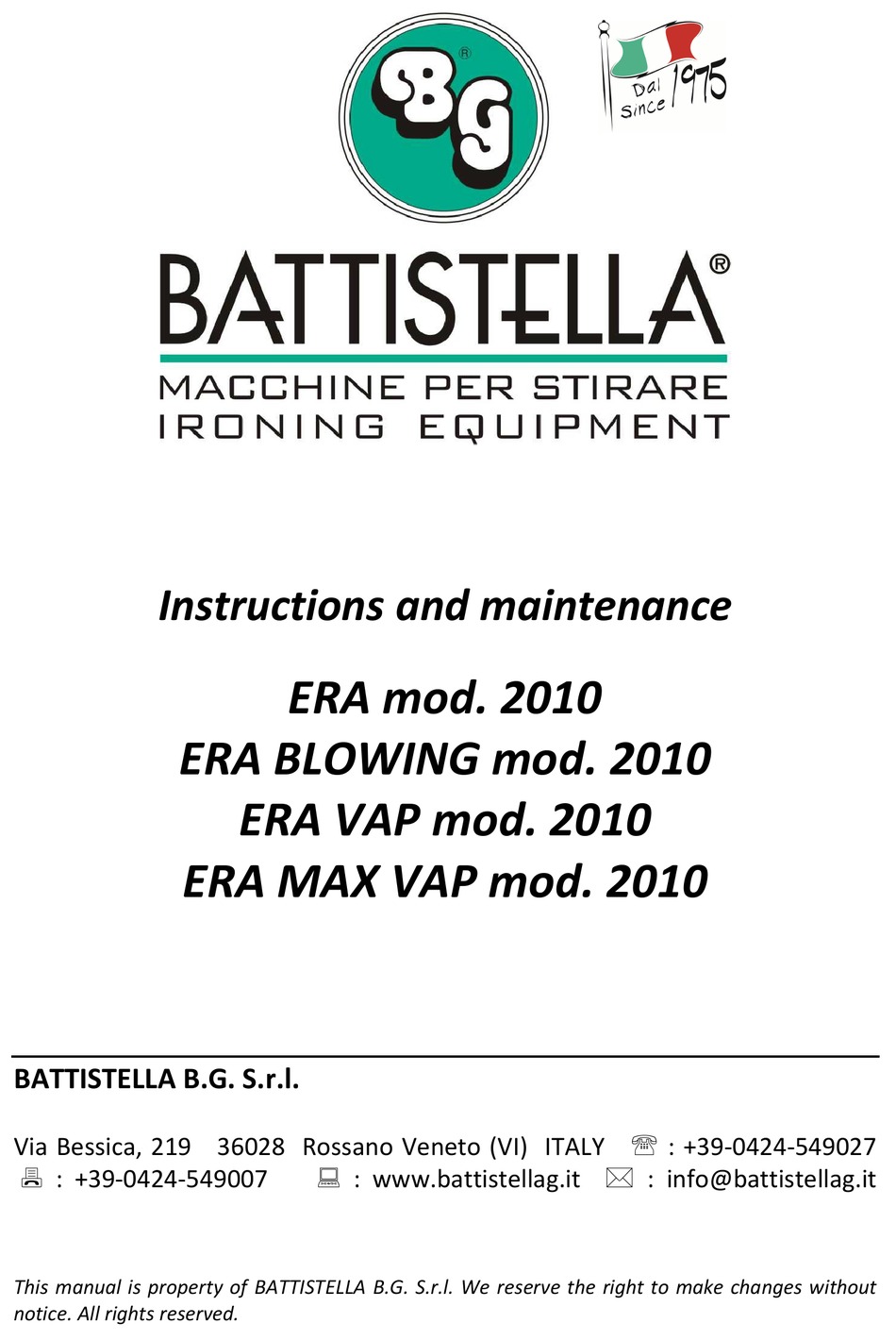

Instructions and maintenance
ERA mod. 2010
ERA BLOWING mod. 2010
ERA VAP mod. 2010
ERA MAX VAP mod. 2010
BATTISTELLA B.G. S.r.l.
Via Bessica, 219 36028 Rossano Veneto (VI) ITALY ℡ : +39-0424-549027
 : www.battistellag.it  : info@battistellag.it
: +39-0424-549007
This manual is property of BATTISTELLA B.G. S.r.l. We reserve the right to make changes without
notice. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ERA 2010 and is the answer not in the manual?

Questions and answers

Related Manuals for battistella ERA 2010

Summary of Contents for battistella ERA 2010

  • Page 1 BATTISTELLA B.G. S.r.l. Via Bessica, 219 36028 Rossano Veneto (VI) ITALY ℡ : +39-0424-549027  : www.battistellag.it  : info@battistellag.it : +39-0424-549007 This manual is property of BATTISTELLA B.G. S.r.l. We reserve the right to make changes without notice. All rights reserved.

  • Page 2: Table Of Contents

    INDEX 1. SPECIFICATIONS ..................2 2. IMPORTANT ....................3 3. OPENING OF PACKAGE ................3 4. WATER CONNECTION ................4 5. ELECTRICAL CONNECTION ................ 4 6. ELECTRONIC CARD OPERATION: “STANDARD” & “STAND-BY” MODE ..5 7. USE OF KEYS ..................... 5 8.

  • Page 3: Specifications

    INSTRUCTIONS AND MAINTENANCE ERA–ERA BLOWING–ERA VAP–ERA MAX VAP Before starting the machine, carefully read this manual and follow the instructions. Never use the product in any way other than that indicated in this manual. 1. SPECIFICATIONS MODEL: ERA VAP ERA MAX VAP BLOWING POWER SUPPLY: 400 V+N-50Hz 400 V+N–50Hz 400 V+N–50Hz 400 V+N–50Hz...

  • Page 4: Important

    LEGENDA Cable support hook Steam pedal (steaming version) Arm socket M Cable support Sleeve ironing arm (upon request) N Rubber iron rest D Iron O Iron socket Cover (Prontotop) Solenoid valve Suction deviation damper (Era vap) Q Solenoid valve knob G Linen support Air/steam discharge H Electronic board control panel...

  • Page 5: Water Connection

    5. Fix the cable support in the specific hole (fig. 1-M), connect the iron plug to the socket (fig. 1-O) and fix the steam hose to the solenoid valve with a hose clamp (fig. 1-P). 6. Fix the iron cables to the cable support hook (fig. 1-A), paying attention to avoid twisting.

  • Page 6: Electronic Card Operation: "Standard" & "Stand-By" Mode

    NEUTRAL BLUE PHASE L1 BROWN PHASE L2 GREY PHASE L3 BLACK GROUND YELLOW/GREEN 6. ELECTRONIC CARD OPERATION: “STANDARD” & “STAND-BY” MODE By turning on the main switch, the machine is in “stand-by” mode (red led on). This mode allows access to the SET menu in order to set functions (e.g.: language, periodical maintenance warnings etc.
  • Page 7 “Vacuum speed” increase and decrease keys. Adjustable from position 0 (motor turned off) to position 5 (maximum speed). will be displayed together with the set speed. “VACUUM SPEED” RESET By pressing the key for 5 seconds the maintenance will be reset. WITHIN THE MENU: it allows to reset the partial hour-counter and other parameters.

  • Page 8: Meaning Of Icons

    8. MEANING OF ICONS ON: it means that the water inside the boiler is being heated in order to obtain the correct operating pressure. OFF: it means that the boiler has reached the optimum pressure. The machine is ready to iron. Indicates that the water is being pumped into the boiler.

  • Page 9: Water Charging Icons

    2. Turn on the electronic card (green key) and activate the required functions. The settings of the electronic card are memorized every time the main switch is turned off. Once the machine is turned on again, it will start with the settings memorized before the machine was turned off (e.g.

  • Page 10: Warnings

    11. WARNINGS The machine completely stops working in the following cases: - abnormal overheating of the boiler or when the safety thermostat does not work properly because it is damaged. will be “WARNING: BOILER OVERHEATING” displayed. - breakdown of the ironing board temperature probe. “WARNING: IRONING BOARD will be displayed.

  • Page 11: Maintenance Reset

    To unblock the menu, contact the authorized service centre or the manufacturer. To set the desired language, see table below: ITALIAN ENGLISH GERMAN To confirm To exit language FRENCH LANGUAGE SPANISH °C PORTUGUESE POLISH DOWN RUSSIAN SLOVENSKI 13. MAINTENANCE RESET The electronic board is set up in order to remind the operator to carry out regularly the maintenance.

  • Page 12: General Warnings

    To gain access to the fuses the main switch must be on pos. “0” and the four screws must be unscrewed from the blue panel. The position of the fuses is indicated in Fig. In order to replace the broken fuses of the electronic board unscrew them by using a screwdriver, exerting a slight pressure and rotate.

  • Page 13: Ironing

    13. Do not place the iron directly on the metal part of the iron rest. Always place the iron on the proper rubber iron rest. 14. Do not iron directly on people. 15. Do not rest or use iron on zippers, hooks, rings, etc ... to avoid scratching the iron plate.

  • Page 14: Boiler Discharge

    The ERA VAP is equipped with one pedal for vacuum and also one pedal for steaming. The steaming function is used to give steam from the ironing surface to thick garments. After steaming has been completed it is recommended to activate vacuum to avoid water stagnation on the ironing board and to dry the fabric dampened by steam.

  • Page 15: Mechanical Risks

    19. MECHANICAL RISKS The following situations are considered dangerous for the operator: 1. using the machine for different purposes other than ironing; 2. when you continue to use the machine after the safety valve has been activated (steam pressure inside the boiler is too high, check the manometer). 20.

  • Page 16: Cleaning Of The Boiler Probe

    To clean the water filter: 1. turn off the main water supply tap; 2. identify the filter, which is close to the water entrance; 3. unscrew the filter plug by using a wrench; 4. take out the filter; 5. by using running water, clean the filter in order to eliminate all impurities;...

  • Page 17: Packing

    25. PACKING The ironing board can be packed with cellophane or in a cardboard box which cannot be turned upside down. As this is not a stiff package it is not shock-resistant. We therefore suggest to handle the packed machine with utmost care and not to use it as a stool or support. Keep away from children any plastic bags, boxes, polystyrene etc.

  • Page 18: Disposal

    S.r.l. will never take the responsibility for any damage (included, without any limitation, consequential damages due to loss or no profit, cutback or any other economical loss) deriving from the use of a BATTISTELLA machine, even in case the Company had been previously informed of such kind of possibility.

This manual is also suitable for:

Era blowing 2010Era vap 2010Era max vap 2010Era 2
