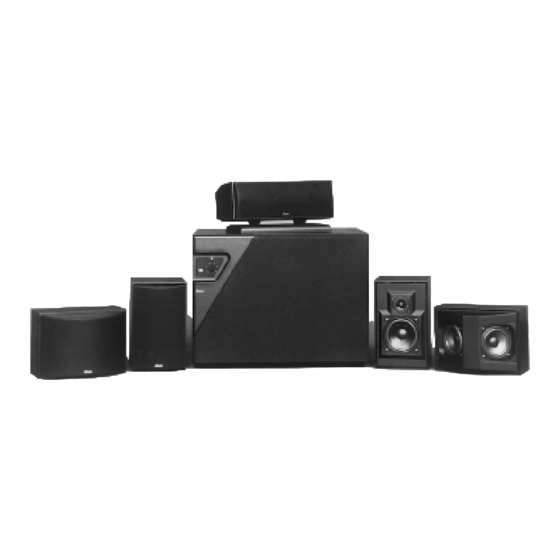

- Page 1 All manuals and user guides at all-guides.com tlantic TECHNOLOGY Instruction Manual System 220 High Performance Loudspeaker System Models 221 LR 223 C 224 SR...
- Page 2 This manual covers the Atlantic Technology System 220 series of speakers for home theater. It will show you how to incorporate the following System 220 compo- nents into your present system, as well as how to set up a complete system. (Except the Model 222 PBM.
- Page 3 Left Surround Speaker Right Surround Speaker Whether your are connecting a complete System 220, or adding one speaker compo- nent to your present system, the wiring should look like the diagram in Figure 2. Before turning on the amplifier, be certain that no stray wire strands are touching across the two terminals as this might damage your amplifier.
- Page 4 TECHNOLOGY Placement The design of the System 220 provides you with maximum flexibility when creating a large, seamless, acoustically accurate soundfield for your home theater or music system. The best placement of the various components will vary from system to system. Use the following placement guidelines and Figure 3 as a starting point.
- Page 5 Begin the adjustment procedure by turning the control knob to the 1 o’clock position. This approximates the Atlantic Technology 221 LR speakers. Next, use your Dolby Pro Logic receiver/decoder’s “test” mode to generate “hiss” from each speaker and adjust the 223’s control for the closest match.
-
Page 6: Listening Levels And Power Handling
The power recommendation for these speaker components assumes that you will not operate your amplifier/receiver in a way that produces distortion. Even rugged speakers like System 220 can be damaged by a moderately powered system if it is producing distortion. - Page 7 7.15lbs; 3.24kg 5.4lbs; 2.45kg Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or designs at any time without notice. Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.
-
Page 8: For Future Reference
All manuals and user guides at all-guides.com For Future Reference Record your speaker(s) serial number(s) and date of purchase here: Model Number Serial Number Date of Purchase Model Number Serial Number Date of Purchase Model Number Serial Number Date of Purchase The serial number is found on the back of the speaker near the connecting terminals.
