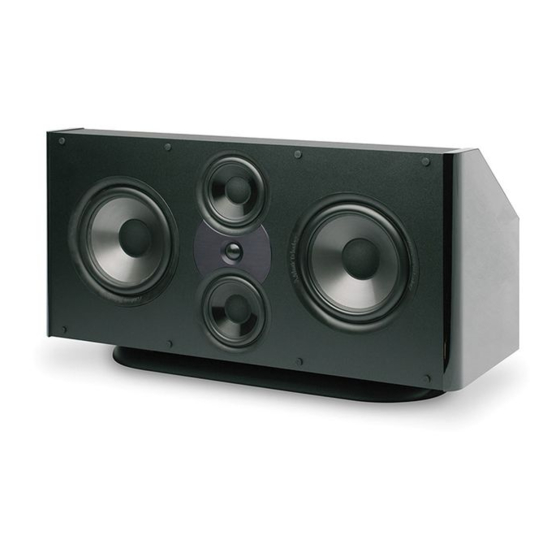

- Page 1 System 8200 THX Ultra2 and System 6200 High Performance C.O.R.E. Technology Loudspeaker Components System 8200 System 6200...
-
Page 2: Table Of Contents
Serial Number Date of Purchase The contents of this manual are Copyright © 2003 by Atlantic Technology International, Corp.,and may not be duplicated or reproduced by any means,whether physical,electronic or otherwise without prior written consent from Atlantic Technology International, Corp. -
Page 3: What's Thx
The Model 8200 LR Front Channel Speakers (Figure 1) are ultra-high per- formance three-way systems intended for use only with a quality subwoofer, such as the Atlantic Technology Model 8200 PedWoofer or 8200 box-type subwoofer. Each speaker contains two GLH (Graphite Loaded Homopoly- mer) 8"... -
Page 4: Acoustic Controls
Satellite Placement Using PedWoofers Under the LR Speakers If you are using Atlantic Technology PedWoofers under the satellite speakers follow the guidelines above for LR placement. Placing the woofers out in the room,away from reflective surfaces is typically not ideal for their performance. -
Page 5: Speaker Placement
Instruction Manual Speaker Placement ���� �������� �������� ������ �� ������ �������� �� ��� ����� �� ��� ������� ���� ��� ������������� � ���� �� ������ ����� ��� ���������� ��� ������ ���� �������� ���� �������� ���� ����� ������� ����� ������ �� ������ �� ����� �� ��� ����� �� ���������... -
Page 6: Stereo Systems
Connecting Your System There are dedicated LEFT and RIGHT model 8200 SR and 6200 SR speak- ers. This is clearly marked on the back of each speaker. Normally, be sure that the Left side surround speaker is placed directly to the left side of the prime listening area (facing the screen) and the Right speaker is directly to the right side.As an easy reference,the Dipole/Bipole switch should always be facing the back of the room.Should you wish to hang them on the wall,... - Page 7 Instruction Manual System Wiring Without Using Bi-Wire Option SURROUND – – – LEFT CENTER RIGHT System Wiring Without Using Bi-Wire Option LEFT RIGHT SURROUND – –...
- Page 8 System Wiring Using Bi-Wire Option System Wiring Using Bi-Wire Option LEFT SURROUND – – – – LEFT CENTER RIGHT System 8200/System 6200 High Performance Loudspeakers RIGHT SURROUND –...
-
Page 9: System Setup
Instruction Manual The terminals themselves are designed to allow the use of very heavy speaker wire or connectors. Be sure to tighten them securely, but don’t over-tighten them. WARNING: To prevent risk of electrical shock or damage to your equipment, always switch off the amplifier or receiver when making any system connections. -
Page 10: Dipole/Bipole Operation Of The Sr Speakers
These systems will play very loudly when provided with enough undistorted power to do so.If necessary,consult your dealer or Atlantic Technology for additional information. System 8200/System 6200 High Performance Loudspeakers... -
Page 11: Specifications
25.0lbs; 11.3kg w/base 20.0lbs; 9.1kg *Height includes tilt base. Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice. THX and THX Ultra 2 are trademarks of THX Inc. Dolby Digital, 5.1, Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation. - Page 12 Atlantic Technology Atlantic Technology ® ® N N O V A T I V E O M E H E A T E R 343 Vanderbilt Avenue Norwood,MA 02062 (781) 762-6300 www.atlantictechnology.com 015-1811...
