High performance in-wall surround speakers

Advertisement

Quick Links

IWTS-14 SR and 30 SR
High Performance In-Wall Surround Speakers

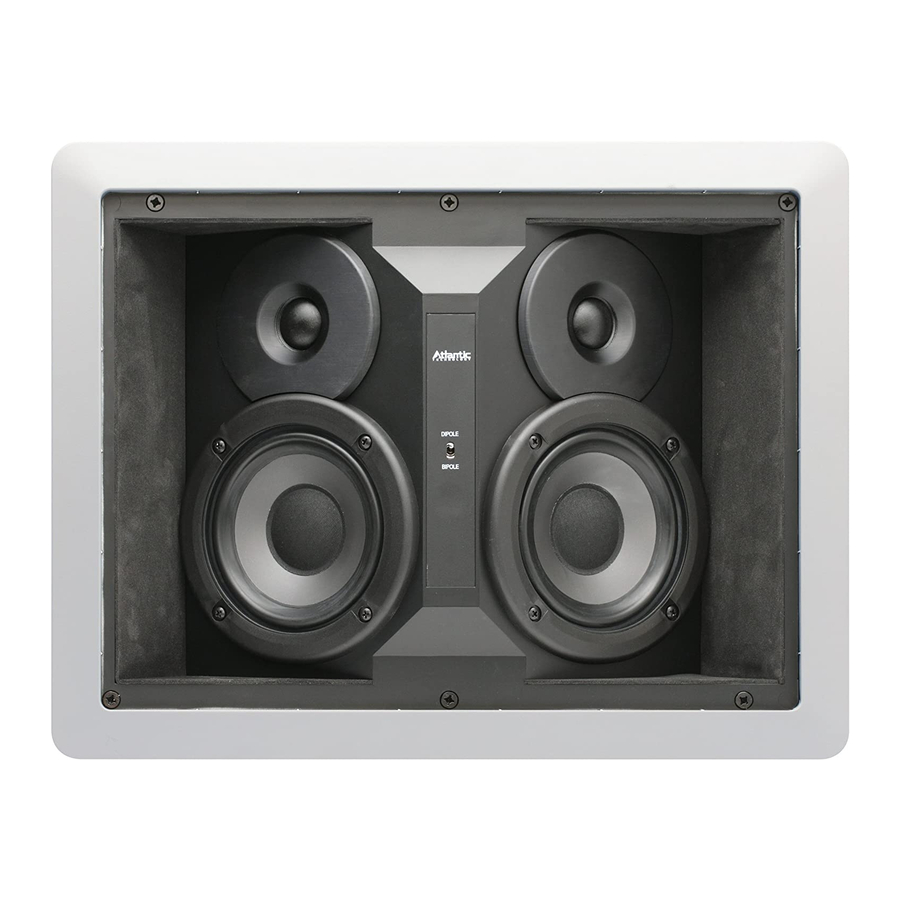

IWTS-14 SR
IWTS-30 SR
DIPOLE/THX
BIPOLE
IWTS- 1 4 SR
DIPOLE/THX
BIPOLE
IWTS-30 SR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IWTS-14 SR and is the answer not in the manual?

Questions and answers

Summary of Contents for Atlantic Technology IWTS-14 SR

  • Page 1 IWTS-14 SR and 30 SR High Performance In-Wall Surround Speakers DIPOLE/THX BIPOLE IWTS- 1 4 SR IWTS-14 SR DIPOLE/THX BIPOLE IWTS-30 SR IWTS-30 SR...
  • Page 2: Table Of Contents

    Serial Number Date of Purchase The contents of this manual are Copyright © 2007 by Atlantic Technology International, Corp., and may not be duplicated or reproduced by any means, whether physical, electronic or otherwise without prior written consent from Atlantic Technology International, Corp.
  • Page 3: Speaker Descriptions

    Speaker Descriptions IWTS-14 SR and 30 SR The IWTS-14 SR and IWTS-30 SR are in-wall surround speakers that deliver spacious, enveloping surround effects for top-grade home theater systems. They feature two angled banks of drivers facing front and rear that fill the listening area with the three-dimensional ambient sound essential for convincing, lifelike theater sound.
  • Page 4: Speaker Setup

    It is important that the speaker is centered on the screen, not off to the side. IWTS-14 SR and 30 SR High Performance In-Wall Surround Speakers Surround Effects and SR Speaker Locations The IWTS SR’s shape allows great flexibility in placement. Due to their swit- chable Dipole/Bipole design, it’s possible to place the speakers almost any-...
  • Page 5: Speaker Placement

    Instruction Manual Speaker Placement Surround Speakers should be placed directly to the sides of the seating area and approximately 3 feet above the listener’s ear level. Dipole is best setting here. Front Speaker Array should be placed as close to ear level as possible.
  • Page 6: Speaker Installation

    But their location or absence is never an assurance that there is not something within the wall cavity. IWTS-14 SR and 30 SR High Performance In-Wall Surround Speakers IWTS-14 SR ⁄ ”...
  • Page 7: Installing The Speaker Assembly

    Graphite Loaded Homopolymer § Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice. THX, and THX Select are trademarks of THX Inc. Dolby Digital, 5.1, Dolby Stereo and Dolby Pro Logic are trademarks of Dolby Laboratories Licensing Corporation.
  • Page 8 343 Vanderbilt Avenue Norwood, MA 02062 (781) 762-6300 www.atlantictechnology.com 015-1305...
