- Page 1 System 10 LCR System 10 InWall Speakers System 10 SR Dipole Surround 343 Vanderbilt Ave. Norwood, MA 02062 (781) 762-6300 www.atlantictechnology.com...
-
Page 2: Important Considerations Before Installation
System 10 InWall Speakers Thank you for purchasing Atlantic Technology products. Our speaker systems have been designed to deliver excep- tional sound and value. We hope you like what you hear from them, and are happy with your decision to buy them. - Page 3 Non-Dipole surrounds If you decide to use a Monopole for the surrounds (like the System 10 LCR) keep the following in mind. With non- Dipole surrounds, the more directly they are aligned with your ears, the more localizable their sound. And since the vast majority of surround information consists of sonic cues that aren’t supposed to be localized, this is particularly...
-
Page 4: Ceiling Mounting
The System 10 LCR speaker can be easily mounted in most any standard wall material, from 1/2 to 1 1/2 inches (12 to 38 mm) thick. Its rotating wall clamps firmly fix it to the wall surface after the proper cutout has been made. Here are some important precautions to take before mounting: Keep the sides of the actual mounting hole at least 1 inch (25 mm) away from beams or studs. -
Page 5: Installing The Mounting Frame
The switch has three settings that adjust the high frequency output from the speaker. We strongly recommend that you try all three settings, using both music and movies (if the System 10 LCR is part of a home theater system). - Page 6 System 10 InWall Speakers There must be a minimum depth behind the wall face of 3 5/8 (92 mm). Be sure to keep the edges of the cutout at least 1 inch (25 mm) away from any stud or obstruction. The speaker assembly itself (the part with the drivers mounted in it, the trimming bezel, etc.) is designed to mount to the Installation Bracket after it has been installed within the wall.
- Page 7 System 10 InWall Speakers Speaker and Cutout Dimensions OutsideDimensions 14 3/8 inches System 10 LCR 8 13/16 inches 7 inches Cutout Dimensions System 10 SR Surround 15 5/8 inches Cutout Dimensions OutsideDimensions 12 1/16 inches...

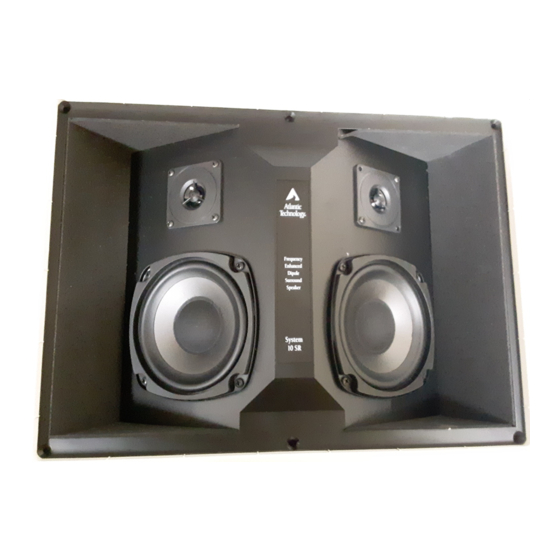

- Page 8 0.5 cu. ft. or greater Horizontal (Landscape) 2 - 4.5" IMG woofers 2 - 3/4" soft dome tweeter Frequency Enhanced Dipole 100 - 20kHz +/- 3dB 88dB 6 Ohms 5000Hz Satellites: System 10 LCR, 171 LR, 271 LR Same as above 010-1164...
