Summary of Contents for Atlantic Technology 251.1 LR
Page 1

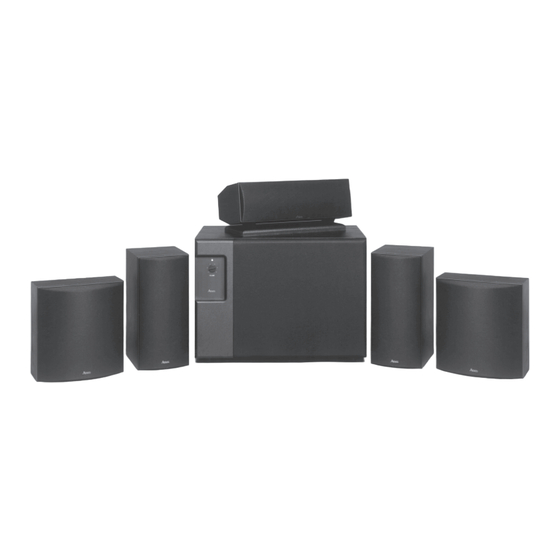

TECHNOLOGY Instruction Manual System 250.1 High Performance Loudspeaker System Models 251.1 LR 253.1 C 254.1 SR...
Page 2
Note: The 254.1 SR is not intended for use as a regular right and left front channel stereo speaker or satellite. Its spatial performance characteristics are not designed for this purpose. In the Atlantic Technology 250.1 Series of components, the Model 251.1 LR fills this role. Connection We recommend that you connect your new System 250.1 speaker components using...
Page 3
Speaker Wiring Terminals the speaker. Look carefully at the wires you are using and note that one of the wires in each pair is marked by either a different color, printing, ridges, or a thread intertwined with the wire strands. By convention, the marked wire is connected to the red (+) terminal.
Figure 3 as a starting point. Feel free to experiment. Home Theater For a home theater system, place your Model 251.1 LR speakers on either side of the television. All of the System 250.1 speakers (except the Model 262 PBM Powered Bass Module) are magnetically shielded so that they will not interfere with your television picture.
Page 5
Channel Speaker. Begin the adjustment procedure by turning both control knobs to the “251.1” position. This approximates the Atlantic Technology 251.1 LR speakers. Next, use your surround sound receiver/decoder’s “test” mode to generate “hiss” from each speaker and adjust the 253.1’s controls for the closest match.
Models 251.1 LR, 253.1 C, and 254.1 SR Mounting The 251.1 LR and the 254.1 SR speakers can be mounted in a variety of ways: On speaker stands. Atlantic Technology 156 ST speaker stands provide an ideal height (29" above the floor) and fit for most rooms. They are available in black or white.
Page 7
12lbs 5.45kg Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or designs at any time without notice. Dolby Stereo and Dolby Digital AC-3 are trademarks of Dolby Laboratories Licensing Corporation.
Page 8
Record your speaker(s) serial number(s) and date of purchase here: Model Number Model Number Model Number Model Number Model Number The serial number is found on the back of the speaker near the connecting terminals. tlantic TECHNOLOGY 343 Vanderbilt Avenue Norwood, MA 02062 (617) 762-6300...
