Summary of Contents for Atlantic Technology Gatecrasher 1

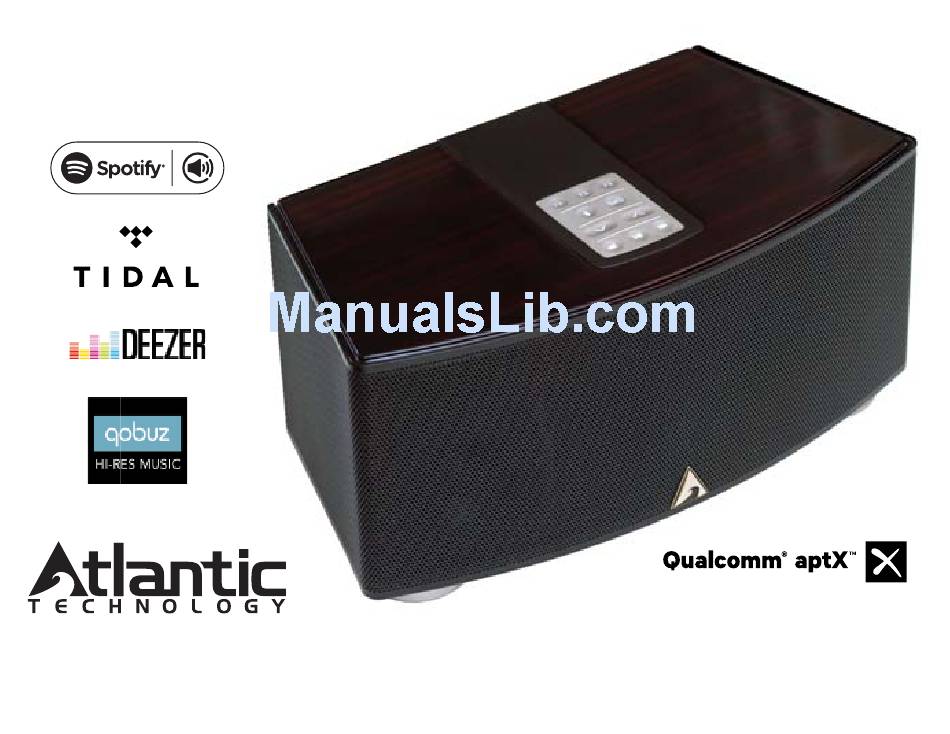

- Page 1 Gate cras her 1 Wi - F i Mul tiroom Lo udsp eaker U SER G U I D E 343 Vanderbilt Avenue Norwood, MA 02062 Telephone: (781) 762-6300 Fax: (781) 762-6868...
-
Page 2: Important Safety Instructions
Use only with the cart, stand, tripod, bracket, or table WARNING specified by the manufacturer, or sold with the apparatus. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION When a cart is used, use caution when moving the cart/ CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED apparatus combination to avoid injury from tip-over. -
Page 3: Fcc Compliance Statement
FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to ● Qualcomm aptX is a product of Qualcomm Technologies International, Ltd. the following two conditions: ● Qualcomm is a trademark of Qualcomm Incorporated, registered in the United States and other countries, used with permission. - Page 4 Carton Content Gatecrasher Music Player Spotify document Power Supply Adapter This User Manual Connection Cable...
- Page 5 Table of Contents Gatecrasher Setup Overview 1 Download the Gatecrasher smart device app from iTunes or Google Play. Carton Content ........i 2 Connect Gatecrasher to AC power. Table of Contents and Overview ....ii 3 Use the Gatecrasher app on your smart device to link Gatecrasher with your Wi-Fi.
- Page 6 Push to go forward Connect an analog audio Pushing this button re- one track playback. one track source to this 3.5mm stores Gatecrasher 1 or selection. or selection. stereo minijack input. to its “out of carton” settings. Choose Stereo output or Connect the DC plug of “L”–...
- Page 7 Once you have downloaded the Gatecrasher smart device (like a phone or a tablet) using app to your smart device, you use app to lo- the Atlantic Technology Gatecrasher app. cate your new Gatecrasher and then establish communication between your Gatecrasher, Download the app to your smart device from your smart device and your local wifi setup.
- Page 8 With the app running on your smart device, connect your Gatecrasher to AC power. Gatecrasher can be connected to any 100 to 240 Volt, 50 or 60 Hz AC power source. FIRST, connect the small DC plug on the AC adapter to the 19VDC power input on the back of Gatecrasher.
- Page 9 Configuring the Gatecrasher app: App STEP 1 After Gatecrasher has been connected to AC power for about 30 seconds, touch the “SETUP AUDIO SYSTEM” button on the app screen. This is an app screen on an Android smart phone. The position of the “Set Up Audio System”...
- Page 10 Configuring the Gatecrasher app, continued The app will begin a scan to locate the When the app locates Gatecrasher, it will Gatecrasher. display the default name for Gatecrasher. Gatecrasher App STEP 2 Gatecrasher App STEP 3 [04]...
- Page 11 The app lets you to rename Gatecrasher. The app next allows you to establish a network connection to Gatecrasher. Gatecrasher App STEP 4 Gatecrasher App STEP 5 [05]...
- Page 12 Configuring the Gatecrasher app, continued Connecting to a Wi-Fi network is the best Selecting a Wi-Fi network. The log-on choice for most users. After selecting Wi- screen for that network appears. Enter the Fi, the app will present you with a list of password for the network.
- Page 13 The app then configures Gatecrasher to Once the Wi-Fi communication link has communicate with your smart device using been established, Gatecrasher will show the chosen Wi-Fi network. the credit screen and the “ ” link. READY TO PLAY SOME MUSIC? Gatecrasher App STEP 8 Gatecrasher App STEP 9 [07]...
- Page 14 Selecting The Source You Want To Hear When opened, the app selects the last Main Source Selection screen: When you music source, like the streaming radio sta- touch , you reach this screen. Touch SOURCE tion example below. Here’s how to choose an entry on the list to select it.
- Page 15 Selecting The Source You Want To Hear, continued BROWSE Streaming Radio example: This screen for Internet Radio screen: Use shows how streaming stations are listed this screen to choose from a variety of sta- when you browse for stations by choosing tions streaming on the internet.
- Page 16 Selecting The Source You Want To Hear, continued Preset Audio Sources screen: Store the Bluetooth Source screen: Shows Bluetooth current source here by touching the + sign (BT) connection status with Gatecrasher (GC). at the end of a rank. To pair a new device, press and hold BT Touch an entry to hear it.
- Page 17 Working with Additional Gatecrashers AUX Source screen: Connect an audio Repeat the “Setup Audio System” routine as signal source to the Gatecrasher AUX IN described on Page 3 with a new Gatecrasher. minijack. You can control playback volume Change the name of the new system to make from Gatecrasher, but other playback func- it easy to identify.
- Page 18 Working with Additional Gatecrashers - cont. Creating a Group: Create a Group to link Select the second device from the Group the two or more Gatecrashers. A Group Setup window, then choose a name for the synchronizes play of any audio source on Group.
- Page 19 Settings Options From the Now Playing screen, touching the Touch Settings to see options that include three dots in the upper right brings up a a Sleep timer and the ability to fine-tune a list with Settings at the top. Gatecrasher’s behavior.
- Page 20 Settings Options From Settings, you can rename a Sleep timer: Swipe up or down on the Gatecrasher and adjust the tone of the Sleep timer screen to choose between 15 device (equalizer). and 120 minutes of playtime before an automatic turn-off. [14]...
- Page 21 Spotify Gatecrasher includes Spotify Connect Listen out loud with Spotify Connect capability built-in. This allows you to 1. Connect Gatecrasher to enjoy Spotify’s broad range of music your wifi network. from Gatecrasher via your WiFi nework. 2. Open up the Spotify app on The Spotify app is available for various your phone, tablet or laptop devices, including iOS and Android plus...
- Page 22 Gatecrasher Specifications Model: BI65-190330-E2 Input: 100-240 VAC, 50/60Hz, 2A Output: 19 VDC, 3.3A Safety Comments The appliance is only suitable for Symbols Used moderate climates. Indoor Use Only The maximum ambient temperature Protection class II appliance during use of the appliance must not (ONLY FOR CLASS II EQUIPMENT) exceed 40°C/105°F.
- Page 23 Gatecrasher Specifications, continued Simplified EU Declaration of Conformity Hereby, ATLANTIC TECHNOLOGYdeclares that this GATECRASHER 1 product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EC. Full text of the EU declaration of conformity is available at https://www.nyne.com/...
- Page 24 343 Vanderbilt Avenue Norwood, MA 02062 Telephone: (781) 762-6300 Fax: (781) 762-6868...
