- Page 1 3.1 HSB High Performance Front Channel Speaker Base with powered H-PAS Subwoofer...
-
Page 2: Table Of Contents

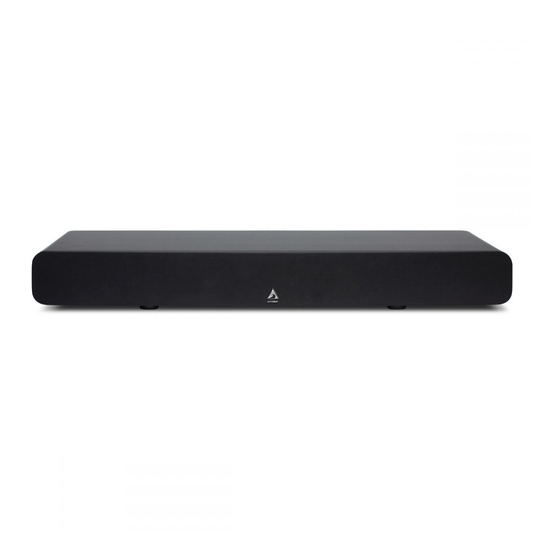

Atlantic Technology 3.1 HSB H-PAS Speaker Base system. It will show you how to incorporate this speaker into your home theater setup. The 3.1 HSB can be used with current and past sound formats from Dolby, DTS and Auro. -
Page 3: Important Safety Information
Instruction Manual Important Safety Information 10. Power Cord Protection. Power-supply cord This product was designed and manufactured to should be routed so that it is not likely to be meet strict quality and safety standards. There are, walked on or pinched by items placed upon however, some installation and operation precau- or against it, paying particular attention to tions which you should be particularly aware of. - Page 4 4 Important Saftey Information (cond't) 3.1 HSB Speaker Base System with H-PAS cabinet has been damaged. equipment does cause harmful interference to radio or television reception, which can be determined f. When the product exhibits a distinct by turning the equipment off and on, the user is...
-
Page 5: Description
Cautions: • The video display's stand or feet must rest fully within the fl at area of the top of the 3.1 HSB speaker base, and not on its grille. This fl at area is 33 x 14 5/8" (838 x 372mm). -
Page 6: Connecting Your System
16 gauge or heavier, connect the speaker wires from the output terminals on the A/V Receiver to the appropriate speaker input terminals on the back of the 3.1 HSB. The lower the gauge number, the heavier the wire. Use heavier gauge wire for runs over 25' (7.62m). - Page 7 U.S. Patent 8,094,855 B2. H-PAS is a trademark of AT Int’l Corp, all rights reserved. Designed in USA. Made in CHINA. POWER SUPPLY A/V RECEIVER LEFT RIGHT SURROUND SURROUND RIGHT CENTER LEFT SUB OUT optional surround speakers (not included) contact Atlantic Technology for recommondations...
-
Page 8: Recommended Setup
We recommend using an initial setting of 125Hz (around 2 o'clock) for the 3.1 HSB, and adjusting from that point. The goal is to obtain a smooth transition between the subwoofer and the front channels, and produce a cohesive and well integrated sound “picture.”... -
Page 9: Care Of Your Speaker
Once your speaker base is set up, you should have many years of maintenance free enjoyment from your system. However, if you should encounter a problem, refer to the following guide to help you fi nd the solution. If a problem persists, you should contact your local authorized Atlantic Technology dealer. Problem Possible Cause... -
Page 10: Specifi Cations
Specifi cations 3.1 HSB Speaker Base System with H-PAS Specifi cations Front Channels Woofers (6) Heavy-duty 3 1/2" (115mm) composite paper cone Tweeters (3) 3/4" (19mm) soft dome, Ferrofl uid cooled Frequency Response 125Hz-20kHz Nominal Impedance 6 Ohms per channel Crossover frequency 3.75kHz, 2nd order... -
Page 11: Warranty
Atlantic Technology products purchased. THIS MUST BE DONE WITHIN 30 DAYS OF PURCHASE. If you purchased multiple Atlantic Technology products you will be able to enter them all using one online form. Model and Serial numbers can be found on the back of each unit and on the outside of their respective boxes. - Page 12 To obtain Warranty service: Please contact your local Atlantic Technology reseller to determine if they are an Authorized Repair Center for Atlantic Technology products. You will need your original Invoice or Bill of Sale to prove Warranty eligibility. If your local dealer is not an Authorized Warranty Center you may contact us at 781- 762-6300 for further help or to send the product to us for service and repair.
