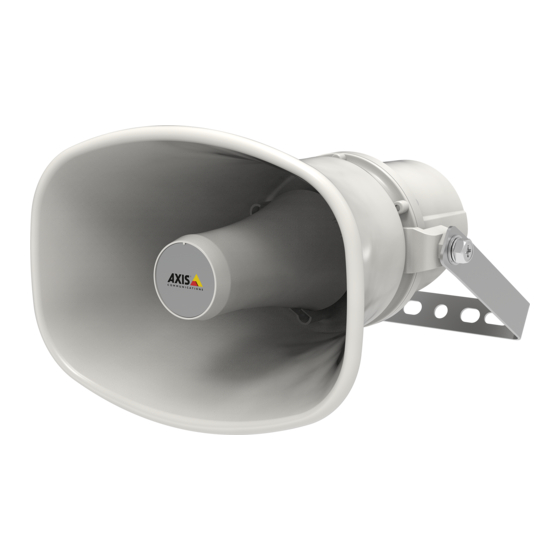

AXIS C1310-E Network Horn Speaker
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1310-E and is the answer not in the manual?

Questions and answers

Related Manuals for Axis C1310-E

Summary of Contents for Axis C1310-E

  • Page 1 AXIS C1310-E Network Horn Speaker User Manual...
  • Page 2 • AXIS Audio Manager Edge — Audio management software for small systems. Comes pre-installed on all audio devices with a firmware equal to or higher than 10.0. AXIS Audio Manager Edge user manual •...
  • Page 3 AXIS C1310-E Network Horn Speaker Installation Installation To watch this video, go to the web version of this document. www.axis.com/products/online-manual/58287#t10153386...

  • Page 4: Find The Device On The Network

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
  • Page 5 Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.
  • Page 6 1. Go to the device interface > Audio > Speaker test. 2. To calibrate the audio device, click Calibrate. Note Once the Axis product is calibrated, the speaker test can be run at any time. 3. To run the speaker test, click Run the test. Note It is also possible to run the calibration by pressing the control button on the physical device.
  • Page 7 AXIS C1310-E Network Horn Speaker Additional settings Note Some email providers have security filters that prevent users from receiving or viewing large attachments, from receiving scheduled emails and similar. Check the email provider’s security policy to avoid delivery problems and locked email accounts.
  • Page 8 AXIS C1310-E Network Horn Speaker Additional settings RTP start port – Enter the port used for the first RTP media stream in a SIP call. The default start port for media transport is 4000. Some firewalls might block RTP traffic on certain port numbers. A port number must be between 1024 and 65535.
  • Page 9 13. Under Action, select Stop playing audio clip. 14. Click Save. Play audio when a camera detects motion This example explains how to set up the audio device to play an audio clip when an Axis network camera detects motion. Prerequisites •...
  • Page 10 12. Under Condition, select a video motion detection alternative. Note If there are no options for video motion detection, then go to Apps and make sure the AXIS Video Motion Detection application is installed and turned on. 13. Under Action, select Send notification through HTTP.

  • Page 11: Session Initiation Protocol (Sip)

    The Session Initiation Protocol (SIP) is used to set up, maintain and terminate VoIP calls. You can make calls between two or more parties, called SIP user agents. To make a SIP call you can use, for example, SIP phones, softphones or SIP-enabled Axis devices.

  • Page 12: Nat Traversal

    NAT traversal Use NAT (Network Address Translation) traversal when the Axis device is located on an private network (LAN) and you want to access it from outside of that network. Note The router must support NAT traversal and UPnP®.
  • Page 13 Locate device: Click to play a sound that helps you identify the speaker. For some products, a LED will flash on the device. Calibrate : Click to calibrate the speaker. Launch AXIS Audio Manager Edge: Click to launch the application.
  • Page 14 AXIS C1310-E Network Horn Speaker The device interface Device settings Input: Turn on or off audio input. Shows the type of input. Gain: Use the slider to change the gain. Click the microphone icon to mute or unmute. Output: Shows the type of output.

  • Page 15: Speaker Test

    AXIS C1310-E Network Horn Speaker The device interface Audio site security CA certificate: Select the certificate to use when you add devices to the audio site when TLS authentication is enabled in AXIS Audio Manager Edge. Save: Click to activate and save your selection.

  • Page 16: Date And Time

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/applications. You need a license code and the Axis product serial number to generate a license key.
  • Page 17 AXIS C1310-E Network Horn Speaker The device interface IPv4 • Automatic IP (DHCP) and DNS (DHCP): The recommended setting for most networks. The current settings are updated automatically. • Automatic IP (DHCP) and manual DNS: Contact your network administrator to configure the manual settings. The current automatic settings are updated automatically.
  • Page 18 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 19 AXIS C1310-E Network Horn Speaker The device interface Password for the account “initial”: Enter the SNMP password for the account named “initial”. Although the password can be sent without activating HTTPS, we don’t recommend it. The SNMP v3 password can only be set once, and preferably only when HTTPS is enabled.
  • Page 20 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 21 AXIS C1310-E Network Horn Speaker The device interface Users Add user: Click to add a new user. You can add up to 100 users. Username: Enter a unique username. New password: Enter a password for the user. Passwords must be 1 to 64 characters long. Only ASCII printable characters (code 32 to 126) are allowed in the password, for example letters, numbers, punctuation, and some symbols.
  • Page 22 AXIS C1310-E Network Horn Speaker The device interface Add a condition: Click to add an additional condition. Action: Select an action from the list and enter its required information. For information about specific actions, see Get started with rules for events.
  • Page 23 AXIS C1310-E Network Horn Speaker The device interface URL: Enter the network address to the HTTP server and the script that will handle the request. For example: http://192.168.254.10/cgi-bin/notify.cgi. Username: Enter the username for the login. Password: Enter the password for the login.
  • Page 24 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 25 AXIS C1310-E Network Horn Speaker The device interface Clean session: Controls the behavior at connection and disconnection time. When selected, the state information is discarded at connect and disconnect. Keep alive interval: The keep alive interval enables the client to detect when the server is no longer available without having to wait for the long TCP/IP timeout.
  • Page 26 AXIS C1310-E Network Horn Speaker The device interface • Property: Send only stateful messages as retained. • All: Send both stateful and stateless messages as retained. QoS: Select the desired level for the MQTT publication. MQTT subscriptions Add subscription: Click to add a new MQTT subscription.
  • Page 27 AXIS C1310-E Network Horn Speaker The device interface • STUN: STUN (Session Traversal Utilities for NAT) is a client-server network protocol that lets the device determine if it is located behind a NAT or firewall, and if so obtain the mapped public IP address and port number allocated for connections to remote hosts.
  • Page 28 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 29 Delete user: Delete the user. You can’t delete the root user. By creating an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. ONVIF media profiles An ONVIF media profile consists of a set of configurations that you can use to change media stream settings.
  • Page 30 AXIS C1310-E Network Horn Speaker The device interface These settings are available for each audio input. Sound level: Adjust the sound level to a value from 0–100, where 0 is the most sensitive and 100 the least sensitive. Use the activity indicator as a guide when you set the sound level.

  • Page 31: Plain Config

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 32 Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys” at axis.com.

  • Page 33: Reset To Factory Default Settings

    Always read the upgrade instructions and release notes available with each new release before you upgrade the firmware. To find the latest firmware and the release notes, go to axis.com/support/firmware. 1. Download the firmware file to your computer, available free of charge at axis.com/support/firmware. 2. Log in to the device as an administrator.

  • Page 34: Technical Issues, Clues And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 35: Performance Considerations

    When setting up your system, it is important to consider how various settings and situations affect the amount of needed bandwidth (the bitrate) required. The following factors are the most important to consider: • Heavy network utilization due to poor infrastructure affects the bandwidth. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the the general performance.

  • Page 36: Product Overview

    AXIS C1310-E Network Horn Speaker Specifications Specifications Product overview Horn Bracket Protective earth terminal Microphone Gasket Network connector Status LED indicator I/O port 10 Control button 11 Microphone disable switch LED indicators Status LED Indication Unlit Unlit for normal operation.
  • Page 37 The product shall be connected using a shielded network cable (STP). All cables connecting the product to the network shall be intended for their specific use. Make sure that the network devices are installed in accordance with the manufacturer’s instructions. For information about regulatory requirements, see the Installation Guide at www.axis.com. I/O connector Use the I/O connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications.
  • Page 38 AXIS C1310-E Network Horn Speaker Specifications DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 25 mA Digital Input 0 to max 30 V DC Connect to pin 1 to activate, or leave floating (unconnected) to deactivate.
  • Page 39 AXIS C1310-E Network Horn Speaker API commands API commands VAPIX® is Axis’ own open API (Application Programming Interface). You can control almost all functionality available in Axis devices through VAPIX®. To get access to the complete VAPIX® documentation, join Axis Developer Community at axis.com/developer-community Enter the commands in a web browser, and replace <deviceIP>...
  • Page 40 AXIS C1310-E Network Horn Speaker API commands Disable FTP Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.FTP.Enabled=no Example Enable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=yes Example Disable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=no...
  • Page 41 User Manual Ver. M8.5 AXIS C1310-E Network Horn Speaker Date: April 2022 © Axis Communications AB, 2020 - 2022 Part No. T10145506...
