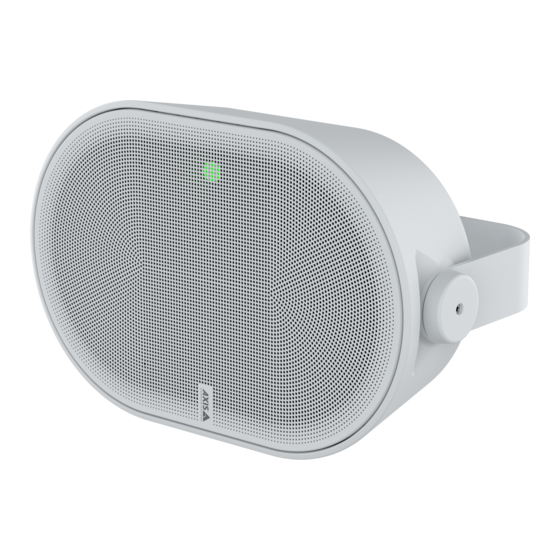

AXIS C1111-E Cabinet Speaker
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis C1111-E

Summary of Contents for Axis C1111-E

  • Page 1 AXIS C1111-E Cabinet Speaker User manual...

  • Page 2: Table Of Contents

    AXIS C1111-E Cabinet Speaker Table of Contents Solution overview ......... . .

  • Page 3: Solution Overview

    • AXIS Audio Manager Edge — Audio management software for small systems. Comes pre-installed on all audio devices with a firmware equal to or higher than 10.0. AXIS Audio Manager Edge user manual •...

  • Page 4: Installation

    AXIS C1111-E Cabinet Speaker Installation Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=83278&section=solution-overview...

  • Page 5: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.
  • Page 6 Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 7: Additional Settings

    1. Go to the device interface > Audio > Speaker test. 2. To calibrate the audio device, click Calibrate. Note Once the Axis product is calibrated, the speaker test can be run at any time. 3. To run the speaker test, click Run the test. Note It is also possible to run the calibration by pressing the control button on the physical device.

  • Page 8: Set Up Sip Through A Server (Pbx)

    AXIS C1111-E Cabinet Speaker Additional settings 6. Under Audio, select at least one audio codec with the desired audio quality for SIP calls. Drag-and-drop to change the priority. 7. Under Additional, select additional options. UDP-to-TCP switching – Select to allow calls to switch transport protocols from UDP (User Datagram Protocol) to TCP (Transmission Control Protocol) temporarily.
  • Page 9 AXIS C1111-E Cabinet Speaker Additional settings To learn more, check out our guide Get started with rules for events. Send an email if a speaker test fails In this example the audio device is configured to send an email to a defined recipient when a speaker test fails. The speaker test is configured to be performed 18:00 every day.
  • Page 10 Enter a subject and a message, and click Save. Play audio when a camera detects motion This example explains how to set up the audio device to play an audio clip when an Axis network camera detects motion. Prerequisites •...
  • Page 11 AXIS C1111-E Cabinet Speaker Additional settings 1. Go to System > SIP > SIP settings. 2. Make sure Enable SIP is turned on. If you need to turn it on, remember to click Save afterwards. 3. Go to SIP accounts.
  • Page 12 AXIS C1111-E Cabinet Speaker Additional settings 4. In the list of states, select Ringing. 5. In the list of actions, select Play audio clip. 6. In the list of clips, select the audio clip you want to play. 7. Select how many times to repeat the audio clip. 0 means “play once”.

  • Page 13: Learn More

    The Session Initiation Protocol (SIP) is used to set up, maintain and terminate VoIP calls. You can make calls between two or more parties, called SIP user agents. To make a SIP call you can use, for example, SIP phones, softphones or SIP-enabled Axis devices.

  • Page 14: Nat Traversal

    NAT traversal Use NAT (Network Address Translation) traversal when the Axis device is located on an private network (LAN) and you want to access it from outside of that network. Note The router must support NAT traversal and UPnP®.

  • Page 15: The Web Interface

    • About: View device information, including firmware version and serial number. Status Audio system info This information is only shown for devices that belong to an AXIS Audio Manager Edge site. AXIS Audio Manager Edge: Launch AXIS Audio Manager Edge. Locate device Shows the locate device information, including serial number and IP address.

  • Page 16: Audio

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.
  • Page 17 AXIS C1111-E Cabinet Speaker The web interface Device settings Input: Turn on or off audio input. Shows the type of input. Gain: Use the slider to change the gain. Click the microphone icon to mute or unmute. Input type : Select the type of input.

  • Page 18: Light

    AXIS C1111-E Cabinet Speaker The web interface Shows the configured storage for the device. To configure the storage, you need to be logged in as an administrator. Audio enhancement Input Ten Band Graphic Audio Equalizer: Turn on to adjust the level of different frequency bands within an audio signal. This feature is for advanced users with audio configuration experience.

  • Page 19: Recordings

    AXIS C1111-E Cabinet Speaker The web interface Create: Click to create a profile. • Preview/Stop preview: Start or stop a preview of the profile before you save it. Note You can’t have two profiles with the same name. • Name: Enter a name of the profile.

  • Page 20: Apps

    Export: Export the whole or a part of the recording. Apps Add app: Install a new app. Find more apps: Find more apps to install. You will be taken to an overview page of Axis apps. Allow unsigned apps : Turn on to allow installation of unsigned apps.

  • Page 21: System

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.
  • Page 22 AXIS C1111-E Cabinet Speaker The web interface Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks. IP address: Enter a unique IP address for the device. Static IP addresses can be assigned at random within isolated networks, provided that each address is unique.
  • Page 23 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: This is the default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 24 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 25 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 26 To install test firmware or other custom firmware from Axis on the device, you need a custom signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 27 AXIS C1111-E Cabinet Speaker The web interface Allow anonymous viewing: Turn on to allow anyone access the device as a viewer without logging in with an account. Allow anonymous PTZ operating : Turn on to allow anonymous users to pan, tilt, and zoom the image.
  • Page 28 AXIS C1111-E Cabinet Speaker The web interface A rule defines the conditions that triggers the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 29 The SFTP client supports SFTP servers using SSH-2 with RSA, DSA, ECDSA, and ED25519 host key types. RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both...
  • Page 30 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 31 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 32 AXIS C1111-E Cabinet Speaker The web interface Device topic prefix: Used in the default values for the topic in the connect message and LWT message on the MQTT client tab, and in the publication conditions on the MQTT publication tab.
  • Page 33 AXIS C1111-E Cabinet Speaker The web interface Add subscription: Click to add a new MQTT subscription. Subscription filter: Enter the MQTT topic that you want to subscribe to. Use device topic prefix: Add the subscription filter as prefix to the MQTT topic.
  • Page 34 AXIS C1111-E Cabinet Speaker The web interface Note The selected codecs must match the call recipient codec, since the recipient codec is decisive when a call is made. • Audio direction: Select allowed audio directions. Additional • UDP-to-TCP switching: Select to allow calls to switch transport protocols from UDP (User Datagram Protocol) to TCP (Transmission Control Protocol) temporarily.
  • Page 35 AXIS C1111-E Cabinet Speaker The web interface • Certificate (only with transport mode TLS): Select a certificate. • Verify server certificate (only with transport mode TLS): Check to verify the server certificate. • Secondary SIP server: Turn on if you want the device to try to register on a secondary SIP server if registration on the primary SIP server fails.
  • Page 36 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 37 AXIS C1111-E Cabinet Speaker The web interface Unmount: Click to unmount the network share. Mount: Click to mount the network share. Write protect: Turn on to stop writing to the network share and protect recordings from being removed. You can’t format a write-protected network share.
  • Page 38 When you create an ONVIF account, you automatically enable ONVIF communication. Use the account name and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add accounts: Click to add a new ONVIF account.
  • Page 39 AXIS C1111-E Cabinet Speaker The web interface • Select configuration: Select a user-defined configuration from the list and adjust the audio settings. The configurations in the drop-down list correspond to the device's audio inputs. If the device has one audio input, it's user0.
  • Page 40 AXIS C1111-E Cabinet Speaker The web interface Supervised : Turn on to make it possible to detect and trigger actions if someone tampers with the connection to digital I/O devices. In addition to detecting if an input is open or closed, you can also detect if someone has tampered with it (that is, cut or shorted).

  • Page 41: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.

  • Page 42: Troubleshooting

    Always read the upgrade instructions and release notes available with each new release before you upgrade the firmware. To find the latest firmware and the release notes, go to axis.com/support/device-software. 1. Download the firmware file to your computer, available free of charge at axis.com/support/device-software. 2. Log in to the device as an administrator.

  • Page 43: Technical Issues, Clues And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 44: Performance Considerations

    When setting up your system, it is important to consider how various settings and situations affect the amount of needed bandwidth (the bitrate) required. The following factors are the most important to consider: • Heavy network utilization due to poor infrastructure affects the bandwidth. • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the general performance.

  • Page 45: Specifications

    AXIS C1111-E Cabinet Speaker Specifications Specifications Product overview Mesh cover Audio connector on page 46 Microphone disable switch on page 46 Network connector on page 46 Status LED, see LED Indicators on page 45 Control button on page 46 I/O connector on page 47...

  • Page 46: Sd Card Slot

    The product shall be connected using a shielded network cable (STP). All cables connecting the product to the network shall be intended for their specific use. Make sure that the network devices are installed in accordance with the manufacturer’s instructions. For information about regulatory requirements, see the Installation Guide at www.axis.com. Audio connector •...
  • Page 47 AXIS C1111-E Cabinet Speaker Specifications Ground Balanced microphone (with or without phantom power) Balanced microphone (with or without phantom or line, “hot” signal power) or line, “cold” signal Digital signal Ring power if selected Ground Ground Stereo unbalanced microphone (with or without electret Stereo unbalanced microphone (with or without power) or line, “left”...
  • Page 48 AXIS C1111-E Cabinet Speaker Specifications DC ground DC output 12 V, max 50 mA I/O configured as supervised input I/O configured as output...
  • Page 49 AXIS C1111-E Cabinet Speaker API commands API commands VAPIX® is Axis’ own open API (Application Programming Interface). You can control almost all functionality available in Axis devices through VAPIX®. To get access to the complete VAPIX® documentation, join Axis Developer Community at axis.com/developer-community Enter the commands in a web browser, and replace <deviceIP>...
  • Page 50 AXIS C1111-E Cabinet Speaker API commands Disable FTP Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.FTP.Enabled=no Example: Enable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=yes Example: Disable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=no...
  • Page 51 User manual Ver. M1.8 AXIS C1111-E Cabinet Speaker Date: January 2024 © Axis Communications AB, 2024 Part no. T10201639...
