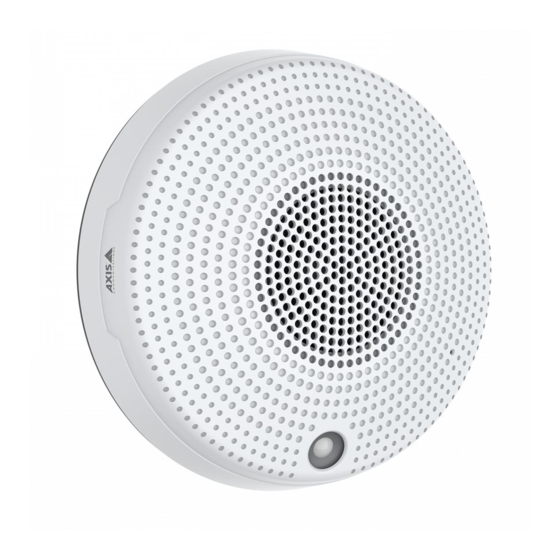

AXIS C1410 Mk II Network Mini Speaker
User manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1410 Mk II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Axis C1410 Mk II

Summary of Contents for Axis C1410 Mk II

  • Page 1 AXIS C1410 Mk II Network Mini Speaker User manual...

  • Page 2: Table Of Contents

    AXIS C1410 Mk II Network Mini Speaker Table of Contents Solution overview ......... . .

  • Page 3: Solution Overview

    • AXIS Audio Manager Edge — Audio management software for small systems. Comes pre-installed on all audio devices with a firmware equal to or higher than 10.0. AXIS Audio Manager Edge user manual •...

  • Page 4: Installation

    AXIS C1410 Mk II Network Mini Speaker Installation Installation To watch this video, go to the web version of this document. help.axis.com/?&piaId=&section=installation-video...

  • Page 5: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 6: Secure Passwords

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 46.

  • Page 7: Configure Your Device

    1. Go to the device interface > Audio > Speaker test. 2. To calibrate the audio device, click Calibrate. Note Once the Axis product is calibrated, the speaker test can be run at any time. 3. To run the speaker test, click Run the test. Note It is also possible to run the calibration by pressing the control button on the physical device.

  • Page 8: Set Up Sip Through A Server (Pbx)

    AXIS C1410 Mk II Network Mini Speaker Configure your device 6. Under Audio, select at least one audio codec with the desired audio quality for SIP calls. Drag-and-drop to change the priority. 7. Under Additional, select additional options. UDP-to-TCP switching – Select to allow calls to switch transport protocols from UDP (User Datagram Protocol) to TCP (Transmission Control Protocol) temporarily.
  • Page 9 AXIS C1410 Mk II Network Mini Speaker Configure your device To learn more, check out our guide Get started with rules for events. Send an email if a speaker test fails In this example the audio device is configured to send an email to a defined recipient when a speaker test fails. The speaker test is configured to be performed 18:00 every day.
  • Page 10 Enter a subject and a message, and click Save. Play audio when a camera detects motion This example explains how to set up the audio device to play an audio clip when an Axis network camera detects motion. Prerequisites •...
  • Page 11 AXIS C1410 Mk II Network Mini Speaker Configure your device 1. Go to System > SIP > SIP settings. 2. Make sure Enable SIP is turned on. If you need to turn it on, remember to click Save afterwards. 3. Go to SIP accounts.
  • Page 12 AXIS C1410 Mk II Network Mini Speaker Configure your device 4. In the list of states, select Ringing. 5. In the list of actions, select Play audio clip. 6. In the list of clips, select the audio clip you want to play.

  • Page 13: The Web Interface

    • About: View device information, including firmware version and serial number. Status Audio system info This information is only shown for devices that belong to an AXIS Audio Manager Edge site. AXIS Audio Manager Edge: Launch AXIS Audio Manager Edge. Locate device Shows the locate device information, including serial number and IP address.

  • Page 14: Audio

    Shows what kind of access to the device that is active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Link to AXIS OS Hardening guide where you can learn more about cybersecurity on Axis devices and best practices.
  • Page 15 AXIS C1410 Mk II Network Mini Speaker The web interface Device settings Input: Turn on or off audio input. Shows the type of input. Gain: Use the slider to change the gain. Click the microphone icon to mute or unmute.

  • Page 16: Light

    AXIS C1410 Mk II Network Mini Speaker The web interface Shows the configured storage for the device. To configure the storage, you need to be logged in as an administrator. Audio site security CA certificate: Select the certificate to use when you add devices to the audio site. You have to enable TLS authentication in AXIS Audio Manager Edge.

  • Page 17: Recordings

    AXIS C1410 Mk II Network Mini Speaker The web interface • Priority: Set the priority of an activity to a number between 1 and 10. Activities with priority numbers higher than 10 can’t be removed from the status list. There are three activities with higher priority than 10; Maintenance (11), Identify (12), and Health check (13).

  • Page 18: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.

  • Page 19: System

    AXIS C1410 Mk II Network Mini Speaker The web interface System Time and location Date and time The time format depends on the web browser’s language settings. Note We recommend you synchronize the device’s date and time with an NTP server.
  • Page 20 AXIS C1410 Mk II Network Mini Speaker The web interface Fallback to static IP address if DHCP isn’t available: Select if you want to add a static IP address to use as fallback if DHCP is unavailable and can’t assign an IP address automatically.
  • Page 21 AXIS C1410 Mk II Network Mini Speaker The web interface ® Bonjour : Turn on to allow automatic discovery on the network. Bonjour name: Enter a friendly name to be visible on the network. The default name is the device name and MAC address.
  • Page 22 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 23 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 24 To install test firmware or other custom firmware from Axis on the device, you need a custom signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 25 AXIS C1410 Mk II Network Mini Speaker The web interface Allow anonymous viewing: Turn on to allow anyone access the device as a viewer without logging in with an account. Allow anonymous PTZ operating : Turn on to allow anonymous users to pan, tilt, and zoom the image.
  • Page 26 AXIS C1410 Mk II Network Mini Speaker The web interface A rule defines the conditions that triggers the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 27 The SFTP client supports SFTP servers using SSH-2 with RSA, DSA, ECDSA, and ED25519 host key types. RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both...
  • Page 28 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 29 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management software (VMS).
  • Page 30 AXIS C1410 Mk II Network Mini Speaker The web interface Device topic prefix: Used in the default values for the topic in the connect message and LWT message on the MQTT client tab, and in the publication conditions on the MQTT publication tab.
  • Page 31 AXIS C1410 Mk II Network Mini Speaker The web interface Add subscription: Click to add a new MQTT subscription. Subscription filter: Enter the MQTT topic that you want to subscribe to. Use device topic prefix: Add the subscription filter as prefix to the MQTT topic.
  • Page 32 AXIS C1410 Mk II Network Mini Speaker The web interface Use NAT (Network Address Translation) traversal when the device is located on an private network (LAN) and you want to make it available from outside of that network. Note For NAT traversal to work, the router must support it. The router must also support UPnP®.
  • Page 33 AXIS C1410 Mk II Network Mini Speaker The web interface • Answer automatically: Select to automatically answer an incoming call. • Prioritize IPv6 over IPv4 : Select to prioritize IPv6 addresses over IPv4 addresses. This is useful when you connect to peer-to-peer accounts or domain names that resolve in both IPv4 and IPv6 addresses. You can only prioritize IPv6 for domain names that are mapped to IPv6 addresses.
  • Page 34 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share since each device gets its own folder.
  • Page 35 When you create an ONVIF account, you automatically enable ONVIF communication. Use the account name and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add accounts: Click to add a new ONVIF account.
  • Page 36 AXIS C1410 Mk II Network Mini Speaker The web interface Add media profile: Click to add a new ONVIF media profile. Profile name: Add a name for the media profile. Video source: Select the video source for your configuration. • Select configuration: Select a user-defined configuration from the list. The configurations in the drop-down list correspond to the device's video channels, including multiviews, view areas and virtual channels.
  • Page 37 AXIS C1410 Mk II Network Mini Speaker The web interface These settings are available for each audio input. Sound level: Adjust the sound level to a value from 0–100, where 0 is the most sensitive and 100 the least sensitive. Use the activity indicator as a guide when you set the sound level.

  • Page 38: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.

  • Page 39: Session Initiation Protocol (Sip)

    The Session Initiation Protocol (SIP) is used to set up, maintain and terminate VoIP calls. You can make calls between two or more parties, called SIP user agents. To make a SIP call you can use, for example, SIP phones, softphones or SIP-enabled Axis devices.

  • Page 40: Nat Traversal

    NAT traversal Use NAT (Network Address Translation) traversal when the Axis device is located on an private network (LAN) and you want to access it from outside of that network. Note The router must support NAT traversal and UPnP®.
  • Page 41 This ensures no data stored in the file system can be extracted or tampered with when the device is not in use, unauthenticated access to the device is achieved and/or the Axis device is stolen. During the secure boot process, the read-write filesystem is decrypted and can be mounted and used by the Axis device.

  • Page 42: Specifications

    AXIS C1410 Mk II Network Mini Speaker Specifications Specifications Product overview Network connector Microphone switch Status LED indicator Control button PIR sensor and front-facing LED Cover LED indicators Indication Status LED Unlit Unlit for normal operation. Green Steady green for normal operation.

  • Page 43: Buttons

    The device shall be connected using a shielded network cable (STP). All cables connecting the device to the network shall be intended for their specific use. Make sure that the network devices are installed in accordance with the manufacturer’s instructions. For information about regulatory requirements, see the Installation Guide at www.axis.com.
  • Page 44 AXIS C1410 Mk II Network Mini Speaker API commands API commands VAPIX® is Axis’ own open API (Application Programming Interface). You can control almost all functionality available in Axis devices through VAPIX®. To get access to the complete VAPIX® documentation, join Axis Developer Community at axis.com/developer-community Enter the commands in a web browser, and replace <deviceIP>...
  • Page 45 AXIS C1410 Mk II Network Mini Speaker API commands Disable FTP Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.FTP.Enabled=no Example: Enable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=yes Example: Disable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=no...

  • Page 46: Troubleshooting

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 47: Technical Issues, Clues, And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...

  • Page 48: Performance Considerations

    To access the device externally, we recommend you to use one of the following applications for Windows • AXIS Companion: free of charge, ideal for small systems with basic surveillance needs. • AXIS Camera Station: 30-day trial version free of charge, ideal for small to mid-size systems. For instructions and download, go to axis.com/vms.
  • Page 49 User manual Ver. M1.6 AXIS C1410 Mk II Network Mini Speaker Date: April 2024 © Axis Communications AB, 2024 Part no. T10208067...
