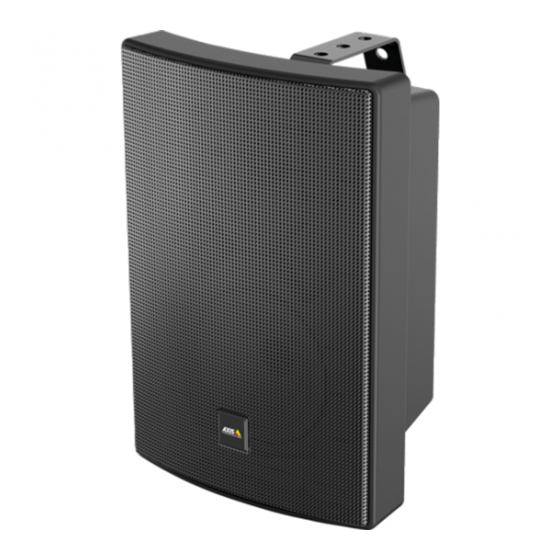

AXIS C1004-E Network Cabinet Speaker

User Manual

Advertisement

Table of Contents
loading

Related Manuals for Axis C1004-E

Summary of Contents for Axis C1004-E

  • Page 1: User Manual

    AXIS C1004-E Network Cabinet Speaker User Manual...

  • Page 2: Solution Overview

    AXIS C1004-E Network Cabinet Speaker Solution overview Solution overview To watch this video, go to the web version of this document. www.axis.com/products/online-manual/25379 An overview of how network audio works.

  • Page 3: Find The Device On The Network

    Find the device on the network Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 4: Access The Device

    Secure passwords Important Axis devices send the initially set password in clear text over the network. To protect your device after the first login, set up a secure and encrypted HTTPS connection and then change the password. The device password is the primary protection for your data and services. Axis devices do not impose a password policy as they may be used in various types of installations.

  • Page 5: Additional Settings

    1. Go to Audio > System overview. 2. Use the slider System under Volume to set the system volume. Axis Audio Player 1. Go to Services and apps and open Axis Audio Player. 2. Set the volume level for system, announcements and music. Note The maximal volume for announcements and music can never be higher than the maximal volume for the system.
  • Page 6 1. Go to Audio > Device settings. 2. Click Calibrate to calibrate the audio device. Once the Axis product is calibrated, the speaker test can be run at any time: 1. Go to Audio > Audio settings. 2. Click Test to run the speaker test.
  • Page 7 AXIS C1004-E Network Cabinet Speaker Additional settings 4. Set the number of seconds before timeout for incoming calls. 5. Click Save. 6. In Port settings, enter the SIP port number and SIP TLS port number. Note • SIP port – for SIP sessions. Signalling traffic through this port is non-encrypted. The default port number is 5060.
  • Page 8 AXIS C1004-E Network Cabinet Speaker Additional settings Stop audio with DTMF This example explains how to: • Configure DTMF on a device. • Set up an event to stop the audio when a DTMF command is sent to the device.

  • Page 9: Axis Audio Player

    Enter a subject and a message and click OK. AXIS Audio Player Use AXIS Audio Player to add, manage and schedule music playlists, streams and prerecorded announcements. To find AXIS Audio Player, go to the device webpage and click Overview.
  • Page 10 AXIS C1004-E Network Cabinet Speaker Additional settings Create a playlist 1. Click on the plus sign next to Playlists to add a new playlist. 2. Enter a name and click Save. You can now drag and drop music files and announcements from the library to your playlist.
  • Page 11 Integration Integration Play audio when a camera detects motion This example explains how to set up the audio device to play an audio clip when an Axis network camera detects motion. Prerequisites • The Axis audio device and Axis network camera are located on the same network.
  • Page 12 Add an Axis network audio device to AXIS Camera Station and associate it with an Axis network camera. • Create a button in the camera’s live view in AXIS Camera Station, that makes the audio device play an audio clip. NOTICE...
  • Page 13 4.13 Enter a Name for the rule and click Finish. In the camera’s live view in AXIS Camera Station, there is now a button labelled Staff to till. When you click the button, the audio device plays the audio clip.

  • Page 14: Learn More

    The Session Initiation Protocol (SIP) is used to set up, maintain and terminate VoIP calls. You can make calls between two or more parties, called SIP user agents. To make a SIP call you can use, for example, SIP phones, softphones or SIP-enabled Axis devices.

  • Page 15: Nat Traversal

    NAT traversal Use NAT (Network Address Translation) traversal when the Axis device is located on an private network (LAN) and you want to access it from outside of that network. Note The router must support NAT traversal and UPnP®.
  • Page 16 IP address. Applications AXIS Camera Application Platform (ACAP) is an open platform that enables third parties to develop analytics and other applications for Axis products. To find out more about available applications, downloads, trials and licenses, go to axis.com/applications.

  • Page 17: Troubleshooting

    AXIS C1004-E Network Cabinet Speaker Troubleshooting Troubleshooting If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support. Reset to factory default settings Important Reset to factory default should be used with caution. A reset to factory default resets all settings, including the IP address, to the factory default values.

  • Page 18: Technical Issues, Clues And Solutions

    Axis device. Check all cabling and reinstall the device. Possible IP address conflict The static IP address in the Axis device is used before the DHCP server sets a dynamic address. with another device on the...
  • Page 19 AXIS C1004-E Network Cabinet Speaker Troubleshooting • Running multiple AXIS Camera Application Platform (ACAP) applications simultaneously may affect the the general performance.

  • Page 20: Specifications

    AXIS C1004-E Network Cabinet Speaker Specifications Specifications To find the latest version of the product’s datasheet, go to the product page at axis.com and locate Support & Documentation. Product overview Bracket Logotype (rotatable) Hatch LED Indicators on page 20 Network connector...

  • Page 21: Sd Card Slot

    The product shall be connected using a shielded network cable (STP). All cables connecting the product to the network shall be intended for their specific use. Make sure that the network devices are installed in accordance with the manufacturer’s instructions. For information about regulatory requirements, see the Installation Guide at www.axis.com.

  • Page 22: Api Commands

    AXIS C1004-E Network Cabinet Speaker API commands API commands VAPIX® is Axis’ own open API (Application Programming Interface). You can control almost all functionality available in Axis devices through VAPIX®. To get access to the complete VAPIX® documentation, join Axis Developer Community at axis.com/developer-community Enter the commands in a web browser, and replace <deviceIP>...
  • Page 23 AXIS C1004-E Network Cabinet Speaker API commands Disable FTP Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.FTP.Enabled=no Example Enable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=yes Example Disable SSH Request http://<deviceIP>/axis-cgi/param.cgi?action=update&Network.SSH.Enabled=no...
  • Page 24 User Manual Ver. M2.4 AXIS C1004-E Network Cabinet Speaker Date: March 2019 © Axis Communications AB, 2018 - 2019 Part No. T10133225...
