Ne+ Electronics; Q-Logic Electronics - Pride J6 with NE Electronics Technical Troubleshooting Manual

NE+ Electronics

Symptoms:
The J6 powers on but the NE+ joystick module (1)
allows no other functions.
The NE+ joystick module (1) displays a key icon to the
right of the battery gauge.
The batteries are fully charged.
All electrical components are properly connected.
Diagnosis:
The power chair is in System Lock mode.
NOTE: System Lock must be enabled (ON) in order to lock
out the NE+ joystick module (1). Refer to the program-
ming text. See figure 10.
Solution:
Use the following procedure to release the NE+ joystick mod-
ule (1) from System Lock mode:
1. Turn on the power to the NE+ joystick module (1).
2. Deflect the joystick to the full forward position until an
audible beep is heard.
3. Deflect the joystick to the full rearward position until an
audible beep is heard.
4. Release the joystick. The LCD screen returns to normal.
To lock the controller:
1. Press and hold both profile keys until the system shuts off. The system is now locked.

Q-Logic Electronics

Symptoms:
The J6 powers on, but the Q-Logic joystick module (1) allows no other functions.
The Q-Logic joystick module (1) displays the message "System Lock."
The batteries are fully charged.
All electrical components are properly connected.
Diagnosis:
The power chair is in System Lock mode.
10 www.pridemobility.com J6 with NE, NE+, and Q-Logic Electronics Technical Troubleshooting Guide
1a

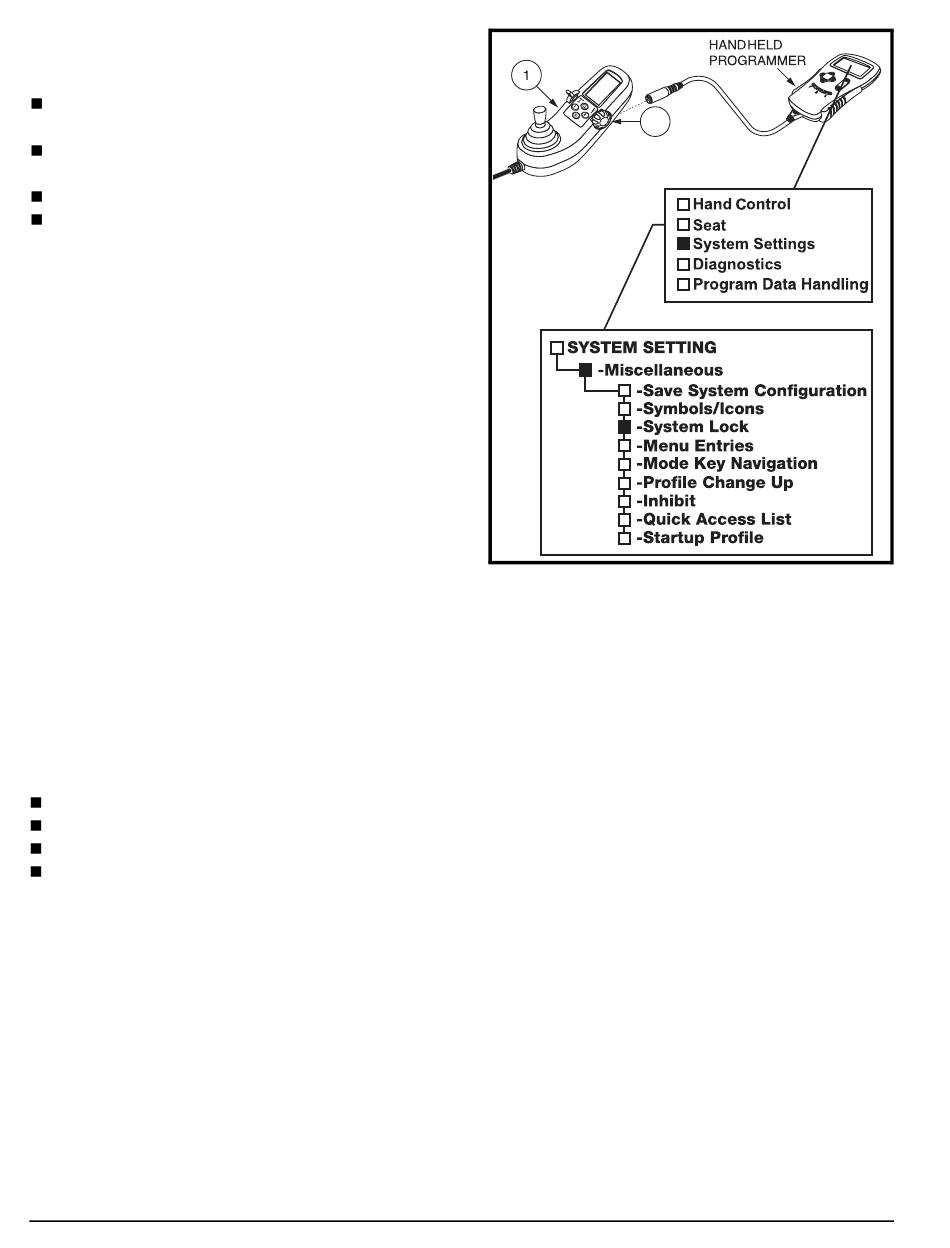

Figure 11. System Lock Controller Programming
(Q-Logic)
