YOUR ULTIMATE ALLY IN POWER

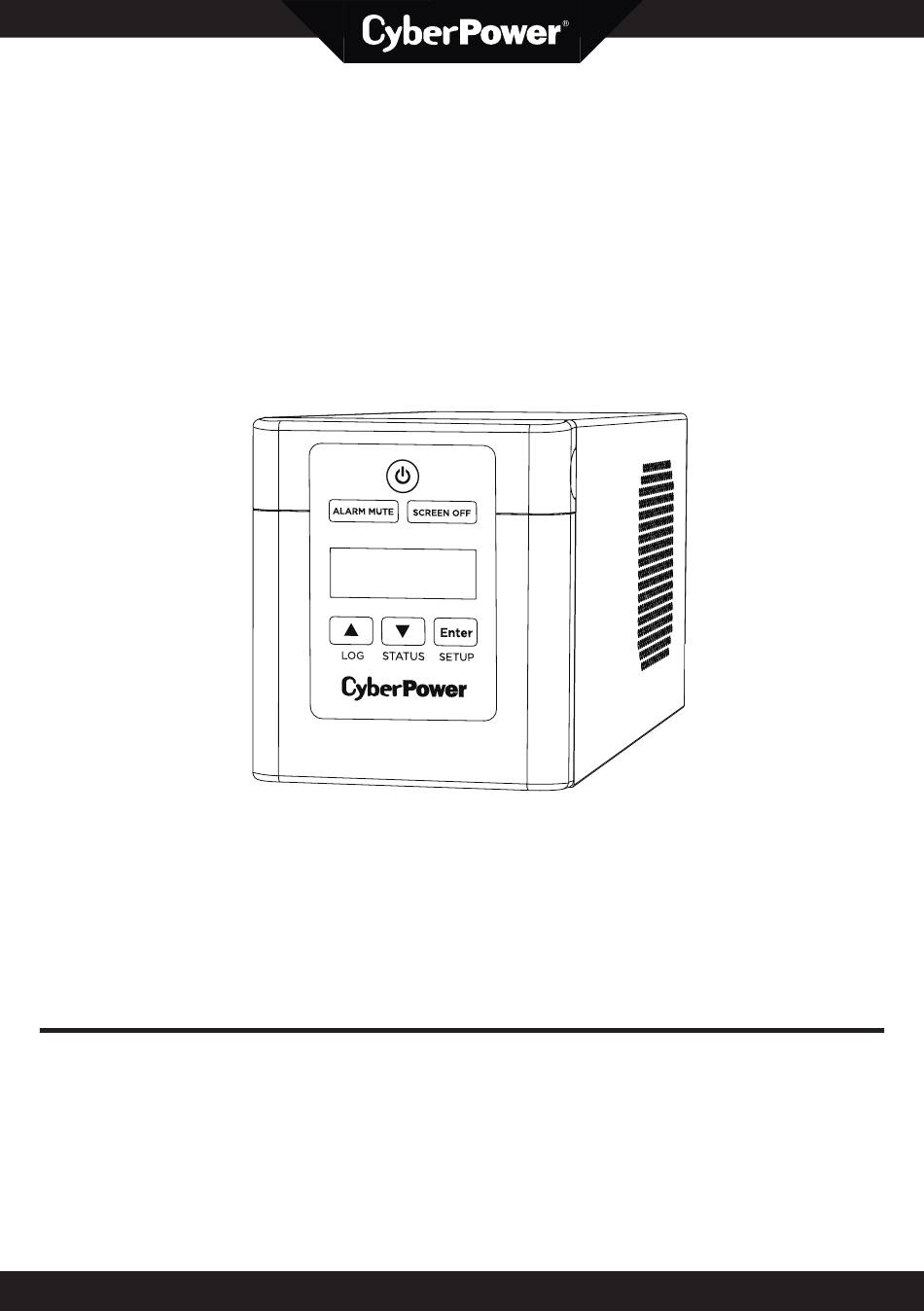

MEDICAL GRADE UPS SERIES
M550L/M750L/M1100XL
USER MANUAL
INTENDED USE OF UPS SYSTEM
CyberPower Medical Grade UPS systems are intended to support and protect non-medical and
medical computer devices that require leakage current reduction, surge protection, voltage
regulation, line noise filtering and battery backup during power outages and generator testing,
both inside and outside patient care vicinities. CyberPower Medical Grade UPS Systems come
with medical-grade receptacles and plugs that reduce the leakage.
Cyber Power Systems (USA), Inc.
4241 12th Avenue East, Suite 400 | Shakopee, MN 55379 | CyberPowerSystems.com
Advertisement
Table of Contents
Related Manuals for CyberPower M550L
Summary of Contents for CyberPower M550L
- Page 1 USER MANUAL INTENDED USE OF UPS SYSTEM CyberPower Medical Grade UPS systems are intended to support and protect non-medical and medical computer devices that require leakage current reduction, surge protection, voltage regulation, line noise filtering and battery backup during power outages and generator testing, both inside and outside patient care vicinities.
-
Page 2: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a CyberPower product. This UPS is designed to provide unsurpassed power protection, operation, and performance during the lifetime of the product. Please take a few minutes to register your product at: www.CyberPowerSystems.com/registration. Registration certifies your product’s warranty, confirms your ownership in the event of a product loss or theft, and entitles you to free technical support. -
Page 3: Installing Your Ups System
AUTOMATIC VOLTAGE REGULATOR Note: This UPS is designed with a safety feature to keep the system from being The M550L/M750L/M1100XL stabilizes incon- turned on during shipment. The first time sistent utility power voltage to nominal levels you turn the UPS on, you will need to have that aresafe for equipment. -
Page 4: Basic Operation
INSTALLING YOUR UPS SYSTEM 5. To maintain optimal battery charge, leave battery every three months to ensure the UPS plugged into an AC outlet at all battery life. times. 7. Insure the wall outlet and UPS are located 6. To store the UPS for an extended period, near the equipment being attached for cover it and store with the battery fully proper accessability. -
Page 5: Back Panel
11. Input / Output Circuit Breaker The unit has several battery powered and surge protected outlets (4 outlets for Located on the back of the UPS, the M550L and 6 outlets for M750L/M1100XL) circuit breaker provides overload and for connected equipment to ensure fault protection. -
Page 6: Battery Replacement
CAUTION! For UPS which is equipped with REMINDER: Batteries are considered extended battery connector, only connect to HAZARDOUS WASTE and must be disposed CyberPower extended battery pack. Contact of properly. Most retailers that sell lead-acid CyberPower Systems about extended battery batteries collects used batteries for recycling, pack. -
Page 7: Status Menu
DEFINITIONS FOR ILLUMINATED LCD DISPLAY STATUS MENU ➢ Operation Mode ➢ Load Energy ➢ Input ➢ Load Power ➢ Estimated Runtime ➢ Output ➢ Load VA ➢ Battery Information ➢ Date & Time ➢ Load Amps LOGS MENU ➢ Event- Transfer (X1-X10) ➢... - Page 8 LCD FUNCTION SETUP GUIDE Function Options Default Description O/P Voltage Range This determines when the UPS will switch to Normal Battery Mode. If the utility power is Good, the Good unit will go to Battery Mode more often. If the Utility Power Poor Normal...
- Page 9 LCD FUNCTION SETUP GUIDE Function Options Default Description Battery Menu The audible alarm will sound when the Low Battery 0~1800s 300s remaining runtime is less than the value Warning selected. Extended Set up the quantity of the extended batteries. Battery* * Only M1100XL supports Extended Battery.
-
Page 10: Troubleshooting
Recharge the battery by leaving the UPS charged. plugged in. The UPS does not perform expected runtime. Contact CyberPower Systems about replace- Batteries are worn out. ment batteries. The on/off switch is de- signed to prevent damage Turn the UPS off. Wait 10 seconds and then from rapidly turning it off turn the UPS on. -
Page 11: Technical Specifications
TECHNICAL SPECIFICATIONS Model M550L M750L M1100XL Capacity (VA) 1100 Capacity (Watts) INPUT Input Voltage Range 90Vac – 150Vac Input Frequency Range 50/60Hz ± 3Hz Auto-sensing Input Plug Type NEMA 5-15P OUTPUT Output Receptacles NEMA 5-15R (Hospital Grade) Output Voltage 120Vac ± 5% Output Frequency 50/60Hz ±... -
Page 12: Fcc Compliance Statement
Goods is expressly excluded. CyberPower is the warrantor under this Limited Warranty. For further information please feel free to contact CyberPower at: CyberPower Systems (USA), Inc. 4241 12th Ave E., STE 400, Shakopee, MN 55379; call us at (877) 297-6937; or send us an e-mail message at claims@cyperpowersystems.com.
