Summary of Contents for CyberPower MBS63AHVHWW

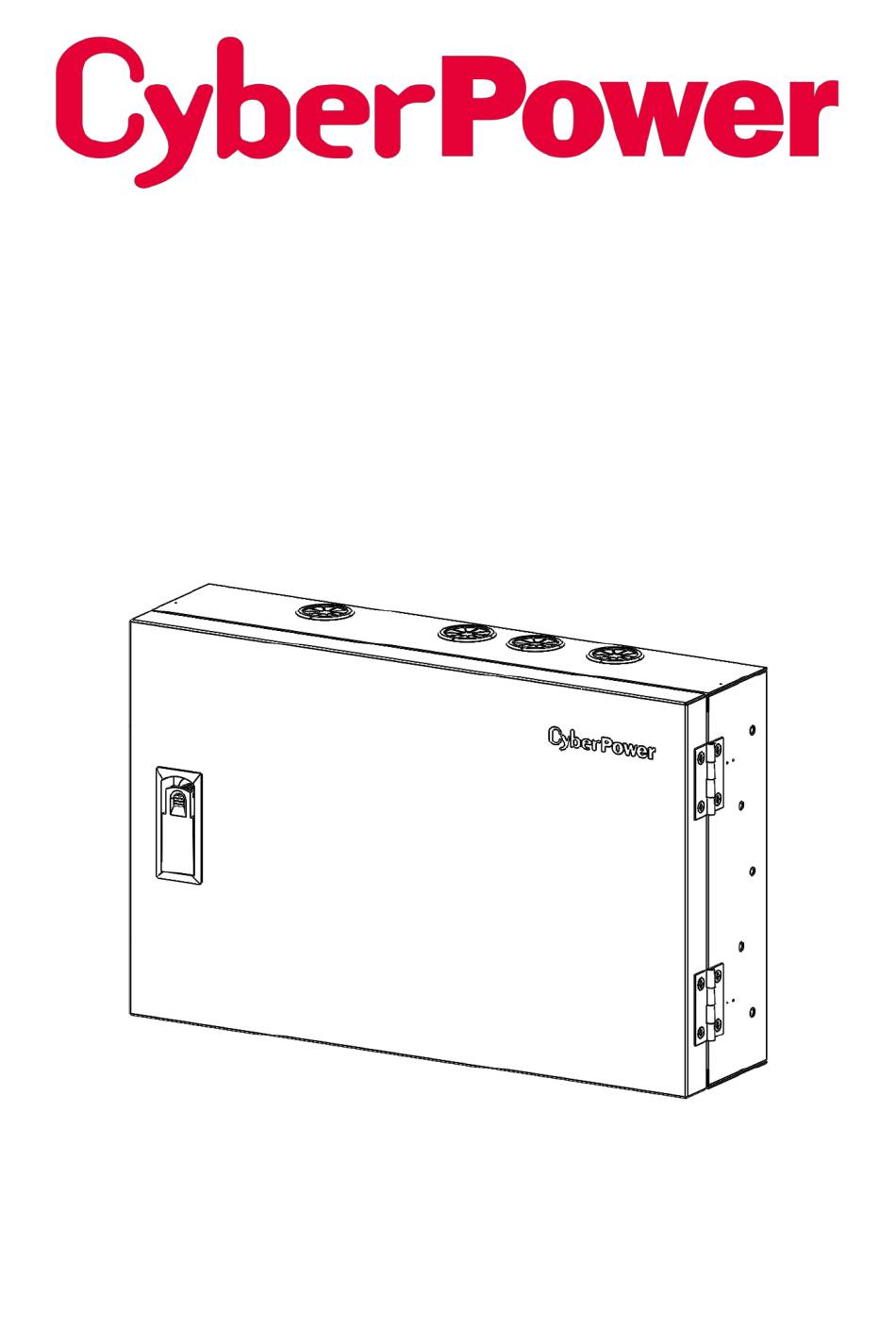

- Page 1 Installation Manual MBS63AHVHWW K01-0000767-01...
-
Page 2: Table Of Contents
Contents 1. Package Contents ................1 2. MBS Configuration ................2 3. MBS Operation Panel Description ............3 4. Cable Gland Replacement Instructions ..........4 5. Two Types of Installation ..............5 5-1. Wall-Mount ................5 5-2. Rack-Mount ................5 6. -
Page 3: Package Contents
1. Package Contents Table.1: The package should contain the following items: Quantity Item (PCS) MBS (Maintenance Bypass Switch) Product Ear Bracket M5*7mm Flat Screw Cable Gland Installation Manual... -
Page 4: Mbs Configuration
2. MBS Configuration External breaker Output breaker Load UPS Output Maintenance breaker UPS Dry Contact Input External breaker Bypass breaker Bypass Power Source UPS Bypass Input External breaker Input breaker Main Power Source UPS Main Input Fig.1: Normal positions for the MBS breakers External breaker Output breaker Load... -
Page 5: Mbs Operation Panel Description
3. MBS Operation Panel Description MBS operation panel description as shown in Fig.3. Inverter Button Maintenance Cover (Transfer to Inverter) (Transfer to Bypass) Maintenance Input Breaker Breaker Bypass Outrput Breaker Breaker Dry Contactor 1,2: INV Signal (J6-2) 3,4: BYP Signal (J7) 1 2 3 4 MBS operation panel Fig.3:... -
Page 6: Cable Gland Replacement Instructions
4. Cable Gland Replacement Instructions Please comply with local regulations or user requirements for installation. Unscrew and remove the inner panel on the MBS. Fig.4: Screw position on the MBS Press the clips on both sides and remove the bushing outwards. -
Page 7: Two Types Of Installation
5. Two Types of Installation 5-1. Wall-Mount Unscrew and remove the inner panel on the MBS. Choose a location on the wall and using the recommend screws to install the MBS product. (Recommend screws: Metric M6 self-tapping screws, 2/8” expansion screws, and wood screws No.12) Step1 Step2 Fig.7: Screws position of the rack-mount... -
Page 8: Wiring Configuration For Single/Dual Input
6. Wiring Configuration for Single/Dual Input Please follow step 1 in Chapter 5-1 to remove the inner panel. The connection configuration for the single/dual input each shown in Fig.9 and Fig.10: Outrput Breaker Input Breaker Bypass Breaker Maintenance Breaker Fig.9: Wiring configuration for the single input Outrput Breaker Input Breaker Bypass Breaker... -
Page 9: Power Cables Connect
6-1. Power Cables Connect Turn off the external breaker and UPS unit to ensure that the MBS has no power support. External breaker Output breaker Load UPS Output Maintenance breaker UPS Dry Contact Input External breaker Bypass breaker Bypass Power Source UPS Bypass Input External breaker Input breaker... - Page 10 Run the power wire (Cable lugs) through the black bushing, then into the terminal locations of the breaker, and then tighten the screw until snug. Fig.13: Power wire connection Connect ground wire. Fig.14: Position of the grounding...
-
Page 11: Dry Contact Connection (Option)
6-2. Dry Contact Connection (Option) Table. 3: Dry contact descriptions Name Function Push the button, and then UPS transfers to 1, 2 J6-2 the Inverter mode. SIGNAL (Push Button, Normally Open) Remove the maintenance cover, and then 3, 4 UPS transfers to the Bypass mode. SIGNAL (Micro Switch, Normally Short) UPS (RT33030KE) - Page 12 Table.4: Dry contact descriptions Name Function Push the button, and then UPS transfers to 1, 2 J7-2, J7-1 the Inverter mode. SIGNAL (Push Button, Normally Open) Remove the maintenance cover, and then 3, 4 J6-2, J7-1 UPS transfers to the Bypass mode. SIGNAL (Micro Switch, Normally Short) UPS (HSTP3T SERIES)
-
Page 13: Product Specification
7. Product Specification Table.5: The MBS product specification Environmental Characteristics Items Unit Requirements Acoustic noise level 56.0 at 1 meter ≤ 1000m Load De-rated 1% Operating Elevation per 100m from 1000m and 2000m Operating Relative Humidity 0 ~ 95%, non-condensing Operating Temperature °C 0 ~ 40... -
Page 14: Contacts
8. Contacts If there have any technical problems with the product, please contact the installer or CyberPower. During inquiring, please provide the below information: Model Name Serial Number Detailed Issue Description Taiwan, United Kingdom Cyber Power Systems, Inc. 11F., No.26, Jinzhuang Rd., Neihu Dist., Taipei City 114, Taiwan... - Page 16 K01-0000767-01...
