- Page 1 WL-35 Disk Size Motherboard...
- Page 2 Copyright © 2021 Shenzhen Maxtang Computer Co., Ltd. All rights reserved. No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of Shenzhen Maxtang Computer Co., Ltd (hereinafter referred to as “Maxtang”).
- Page 3 Shenzhen Maxtang Computer Co., Ltd WL35 Motherboard User Manual (Version 1.0) Version: Description Issue Date: Initial version (EN) 2021/4/9 V1.0 Updated to support 12V/19V DC-in power supply 2021/10/28...
-
Page 4: Table Of Contents
Shenzhen Maxtang Computer Co., Ltd Contents Chapter 1 Product Introduction ............................ 3 1.1 Brief Introduction ............................3 1.2 Parameters ..............................3 1.3 Connector Diagram ............................ 4 Chapter 2 Hardware ....................5 2.1 Jumper Setting ............................5 2.2 Memory Slots ............................. 5 2.3 Display Interfaces ............................ -
Page 5: Chapter 1 Product Introduction

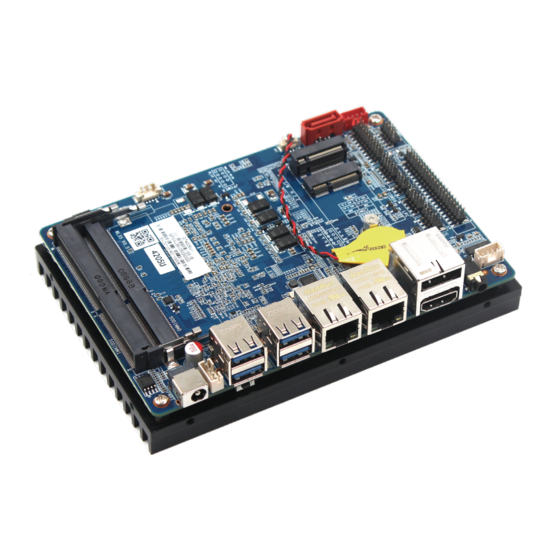

Shenzhen Maxtang Computer Co., Ltd Chapter 1 Product Introduction 1.1 Brief Introduction The WL35 motherboard is a 3.5" SBC (Single Board Computer) based on the Intel Whiskey Lake-U platform, small formed with low power consumption and high performance. 1.2 Parameters CPU: ⚫... -
Page 6: Connector Diagram
Shenzhen Maxtang Computer Co., Ltd 1.3 Connector Diagram AUDIO HDMI+DP LAN1 USB3.0 USB3.0 PWR2 DC_IN JAUD USB2.0 COM14 SO-DIMM COM56 GPIO M.2_WIFI JPOWER M.2_SSD/4G PWSATA SATA CPU_FAN... -
Page 7: Chapter 2 Hardware
Shenzhen Maxtang Computer Co., Ltd Chapter 2 Hardware 2.1 Jumper Setting Please configure the jumpers according to your requirements before installing the hardware. How to identify the first header of jumpers and pins: Observe the mark beside the jumper or pins and find the header marked by “1”... -
Page 8: Usb Interface
Shenzhen Maxtang Computer Co., Ltd 2.6 USB Interface 4 standard USB3.1 Gen2, 2 built-in USB2.0 interfaces (2.0mm pitch pins). The USB3.1 Gen2 rear ports are powered by 5V Standby voltage, which could also supply power to external devices when it is turned off (not when they were powered off): 5V/1A. -
Page 9: Com
Shenzhen Maxtang Computer Co., Ltd 2.9 COM The board provides 4x RS232 and 2xRS485 on-board COM header (2.0mm spacing). The RS232 serial ports are electrified, their voltage is the same as the input voltage of the board. RS232 (screen printing: COM14) -
Page 10: Power Supply (Screen Printing: Pwr1, Pwr2)
Shenzhen Maxtang Computer Co., Ltd 2.10 Power Supply (screen printing: PWR1, PWR2) The board supports 12V/19V DC-in power supply. PWR1: PWR2 (screen printing: PWR2) Signal 2.11 GPIO (screen printing: GPIO) The board is equipped with a set of JGPIO 2x5Pin (2.0mm spacing), supports 8 programmable I/O lanes in total. -
Page 11: Cpu Fan Socket (Screen Printing: Cpu_Fan)
Shenzhen Maxtang Computer Co., Ltd read/write indicator, a power-on indicator. In addition, there was a hard disk read/write indicator (red) and a power-on indicator (blue) on board on the rear IO panel. JPOWER (screen printing: JPOWER) Signal Signal HDD_LED+ PWR_LED+...
