Nocturne
+ C
®
Outdoor crank-operated projection screen

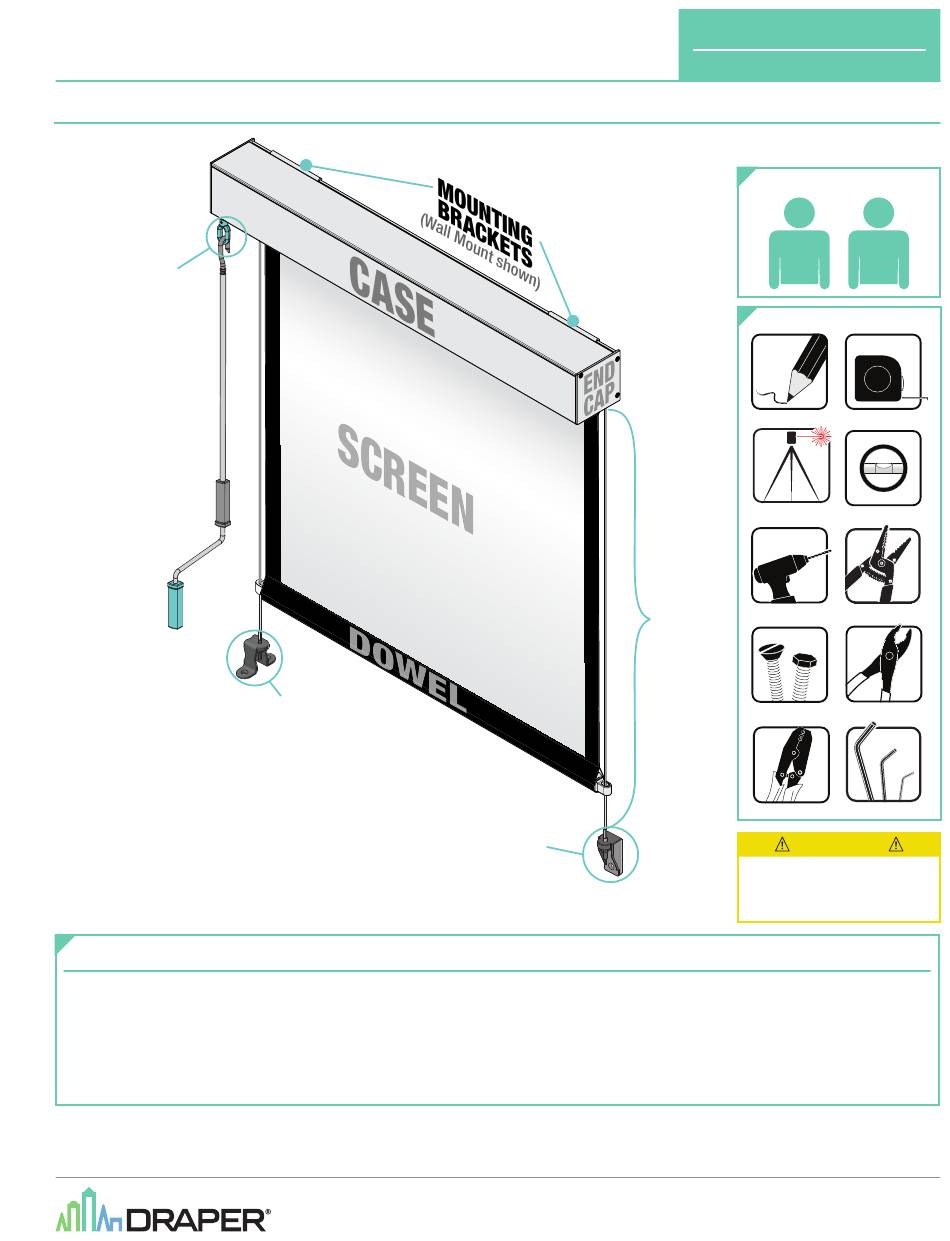

Overview - Components

CRANK
OPERATOR
CRANK
HANDLE
Contents
Overview - Components .......................................................................................1
PLEASE READ - Safety Information ....................................................................2
Section 1 - Preparation for Installation .............................................................2
Section 2 - Mounting Case with Brackets ........................................................3
Section 3 - Mounting Case Directly to Wall ......................................................3
CABLE
MOUNT
(Deck Mount
shown)
CABLE MOUNT
(Wall Mount shown)
SIDE
CABLE
Section 4 - Installing Cable Guides ....................................................................4
Section 5 - Replace Roller Assembly & Fascia .................................................6
Section 6 - Securing Guide Cable ......................................................................7
Section 7 - Dimensions: Components ...............................................................8
Section 8 - Assembled Dimensions .................................................................10
If you have any difficulties installing or servicing your
© 2022 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
PERSONNEL REQUIRED
1
TOOLS REQUIRED
PENCIL
TAPE MEASURE
LASER LEVEL
LEVEL
POWER DRILL
WIRE STRIPPERS
PLIERS
HARDWARE
(by others)
CRIMPING TOOL
HEX WRENCH
CAUTION
Read and understand
all warnings before
beginning installation.
Nocturne+ C, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: NocturnePlus_C_Inst22
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Nocturne + C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Draper Nocturne + C

Summary of Contents for Draper Nocturne + C

  • Page 1: Table Of Contents

    Section 8 - Assembled Dimensions ..............10 If you have any difficulties installing or servicing your Nocturne+ C, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 FORM: NocturnePlus_C_Inst22...

  • Page 2: Please Read - Safety Information

    7. Before testing or operation, carefully inspect the entire area and path 14. Custom products/installations may not be reflected in this manual. Call Draper, (especially of unit to be sure no persons or objects are in the area.

  • Page 3: Section 2 - Mounting Case With Brackets

    Nocturne+ C page 3 of 10 Section 2 - Mounting Case with Brackets Figure 2 Caution: Mounting Brackets required for proper spacing of unit off the wall for Side Channel alignment. 1. Attach Mounting Brackets to the wall using #10 flat head screws installed flush with bracket. Please Note: Be sure to use AT LEAST 2 of the top mounting holes.

  • Page 4: Section 4 - Installing Cable Guides

    Nocturne+ C page 4 of 10 Section 4 - Installing Cable Guides Install Mounting Bracket using appropriate fasteners. (Wall mount option shown.) For Jamb Mount installations PLEASE NOTE: Installer must provide adequate space when screen is set in a window jamb so that hook for the crank clears the wall.
  • Page 5 Trim excess cable as end of cable, above the Cable approximately 1/ 8 " desired. (3mm) Mounting Hole on Endcap. above mark. Please Note: Draper recommends using two crimps per cable. PLEASE NOTE: Draper recommends ® 32-VC:VG Crimper, available from...

  • Page 6: Section 5 - Replace Roller Assembly & Fascia

    Nocturne+ C page 6 of 10 Section 5 - Replace Roller Assembly & Fascia Replace Operator End Replace Idler Mounting Gudgeon of Roller Assembly. on Idler End of Roller Assembly. Replace Quick Release Pin. Replace Fascia. Replace screws on bottom of Case.

  • Page 7: Section 6 - Securing Guide Cable

    Nocturne+ C page 7 of 10 Section 6 - Securing Guide Cable While capturing Dowel of screen, pull cable through Mounting Bracket, until crimped barrels are resting on Cable Replace Washer and Nut on the bottom Mounting Hole on Endcap. bracket and tighten until desired tension (Deck mount option shown) is reached.

  • Page 8: Section 7 - Dimensions: Components

    Nocturne+ C page 8 of 10 Section 7 - Dimensions: Components Side Cable Wall Mount Option Side Cable Ceiling Mount Option " (8mm) 3 " 3 " (92mm) (92mm) 3 " 3 " SCREEN SCREEN (92mm) (92mm) HEIGHT HEIGHT Wall Mounted Deck Mounted Cable Guide Cable Guide...
  • Page 9 Nocturne+ C page 9 of 10 CASE STYLES Case Wall Mounting Bracket Mounting Bracket 3 " 3 " (92mm) (92mm) 4" (102mm) 1" (25mm) 3 " 1 " 3 " 3 " (92mm) (45mm) (92mm) (92mm) " (22mm) 1 " 1 "...

  • Page 10: Section 8 - Assembled Dimensions

    Nocturne+ C page 10 of 10 Section 8 - Assembled Dimensions Overall Case Length = Screen Width + 2 " (29mm) Screen Width 3 " (92mm) (13mm) from end of case to cable SCREEN Cable HEIGHT Guide Length (27mm) from end of case to screen HEM POCKET Dowel Length...
