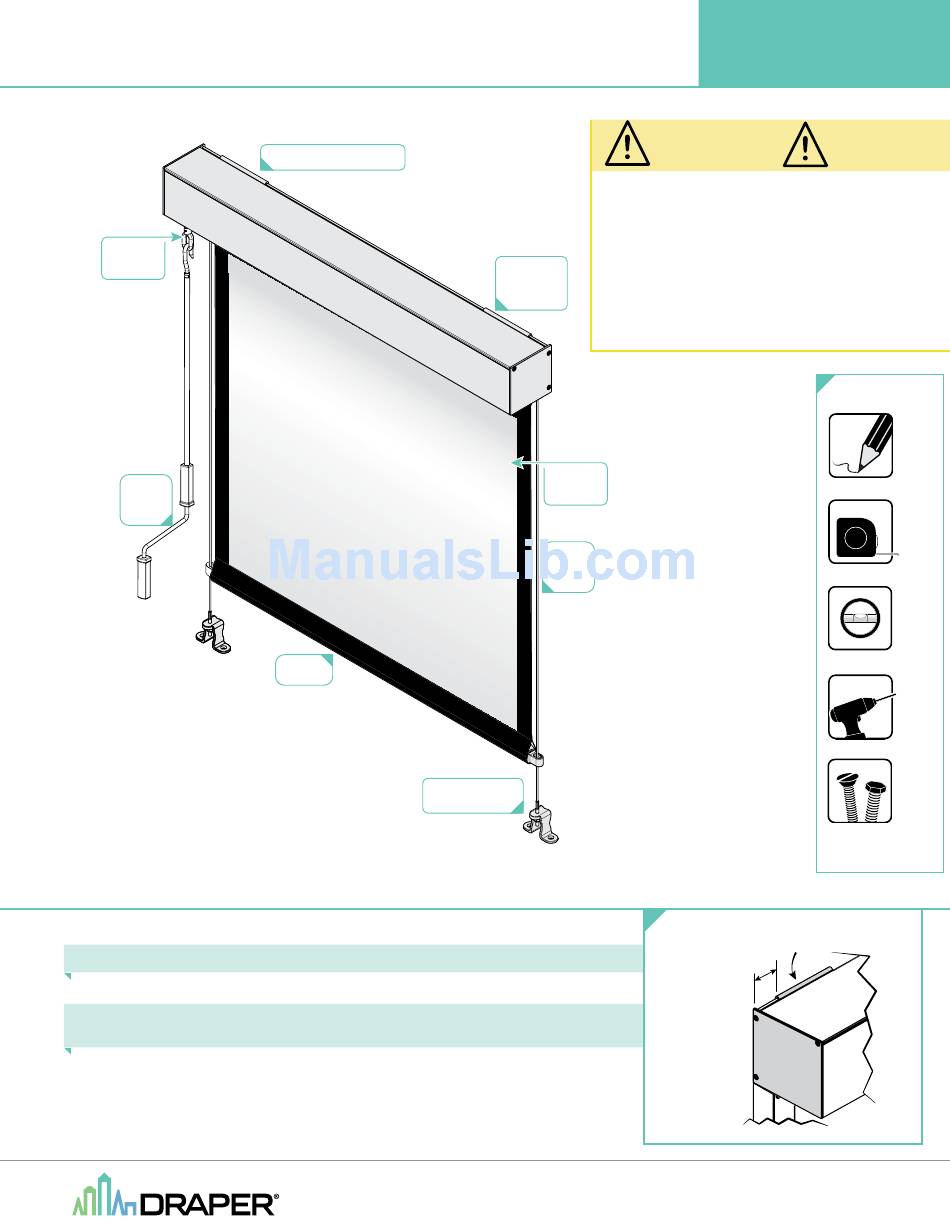

Draper nocturne+ c Installation & Operation Instructions

+
Nocturne C
Crank Operated Exterior Projection Screen
Crank
Operator
Crank
Handle

Section 1 - Preparation of Installation

1. Make sure mounting surface is strong enough to hold the Nocturne+.
Please Note:
It is the responsibility of installer to use appropriate fasteners for the mounting surface.
2. Verify unit measurements, and make sure it will fit in the desired location.
Please Note: The Dowel does not retract into the Case.
This will need to be accounted for if mounting over a swinging window or door.
3. Mounting brackets MUST be installed with a gap of 1¾" (45mm) between the End Cap
and the Mounting Bracket edge (See Fig. 1). Mark wall, jamb or ceiling.
4. Drill small starter holes (if necessary) in mounting surface.
Wall Mounting Bracket
Dowel
Cable Mount
(Deck Mount Shown)
CAUTION
1. Inspect all boxes to make sure you have received the proper screen and parts.
Controls may be shipped separately, or in same carton as screen.
2. Open cartons lengthwise.
3. All hardware must be installed level. Screen must be level and square.
4. It is the installer's responsibility to make sure appropriate fasteners are used
for mounting surface.
Wall
5. Please read the following installation guidelines thoroughly and follow them carefully.
Mounting
Failure to do so invalidates warranty.
Bracket
Please Note: Custom products/installations may not be reflected by this document.
Call Draper, Inc. if you have questions about your installation.
Viewing
Surface
Cable
Guide
Figure (1)
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
© 2017 All Rights Reserved
INSTRUCTIONS
Installation & Operation
TOOLS
REQUIRED
Pencil
Tape Measure
Level
Power Drill
Hardware
(by Others)
MOUNTING
BRACKET
1¾"
(45mm)
E N
D
C A
P
|
FORM: Nocturne_C_Inst17
