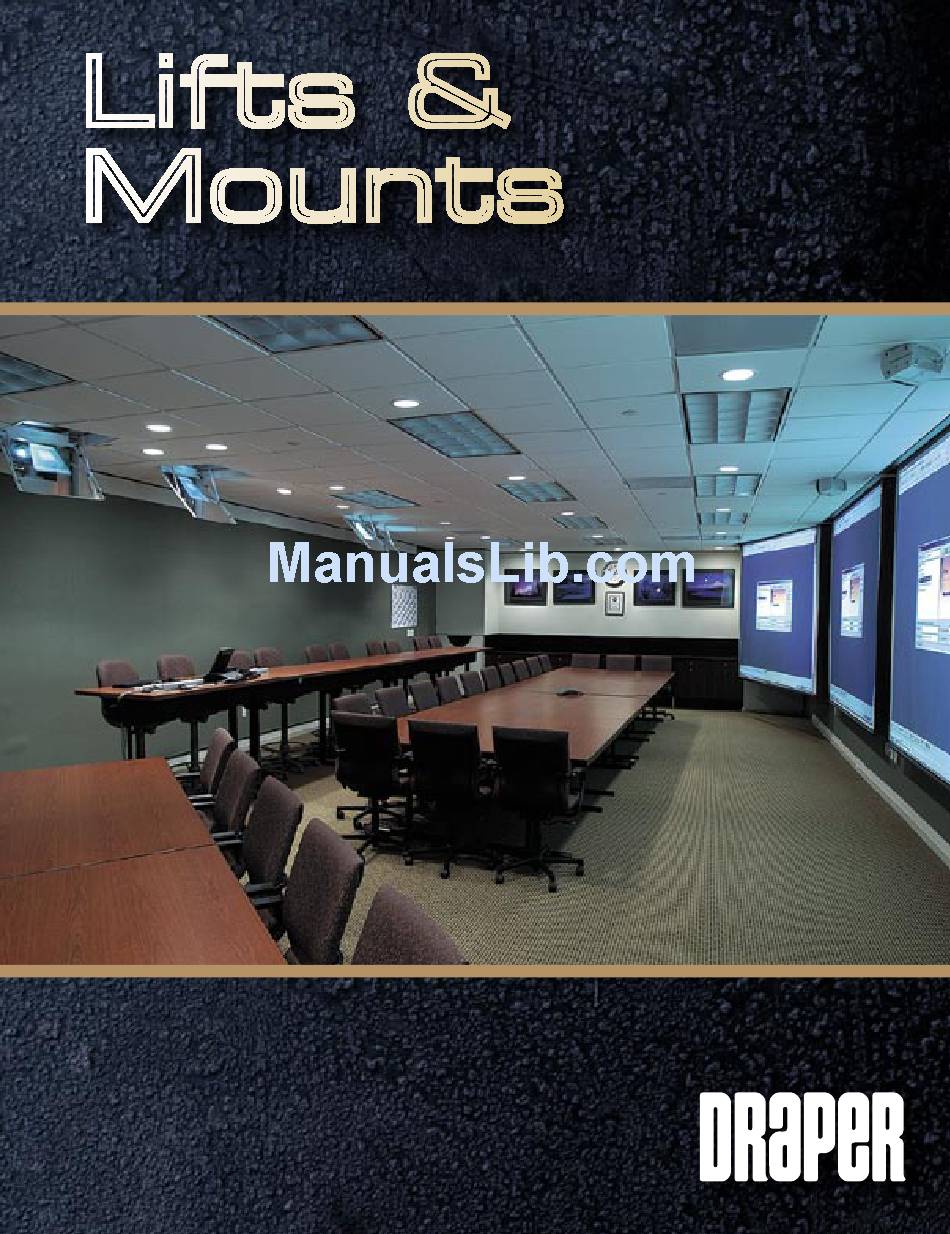

- Page 1 Lifts & Mounts...
- Page 2 The questions below will help guide you to the perfect Draper lift solution. • How large is the projector you are using? All Draper lifts are made to fit a specific size range of projectors. Make sure to verify the dimensions and weight of the projector you wish to use to ensure you select the correct lift.
-
Page 3: Dimensions & Data
You won’t see or hear the projector. The Revelation is totally different from traditional projector lifts and mounts. The Draper Revelation permanently conceals the projector—and its noise—above the ceiling at all times. Other lifts typically lower the whole projector and lift mechanism into the room from a ceiling recess, or lift it into the seating area from a table hideaway. - Page 4 When activated, a trapdoor lowers the projector into your room using a precision actuator. The projector is easily aligned during installation to provide a direct light path onto your Draper projection screen. Phantom positions the projector just below ceiling line.
-
Page 5: Low Profile Mount
extension. The Micro Projector Lift utilizes the same exclusive 3-scissor design as Draper’s popular Scissor Lift (see page 6), but features a compact side-folding scissor. The load is lifted by two wide Kevlar belt provides extra protection. - Page 6 finished in white. Six sizes available. Select size based on maximum size of projector or other equipment being used. See specifications on the Draper website www.draperinc.com/go/ScissorLift.htm. • Ceiling Finish Kit—Ceiling closure panel and ceiling trim ring to finish ceiling opening.
- Page 7 14¹⁄ ₁ ₆ 23⅜ 14⁹⁄ ₁ ₆ x 23⅞ 8¾ x 18 20 14 sec. www.draperinc.com 765-987-7999 AeroLift 25 w/Large AeroLift 50 AeroLift 150 Plenum and Closure 4 6¼ 6¼ 22¼ x 14 28¼ x 15 31¼ x 15⅞...
- Page 8 SMS Mounts for LCD/DLP Projectors Inspired Design Draper SMS Mounts complement the latest generation of LCD and DLP projectors. But more than a shapely column, SMS Mounts have innovative features that simplify installation procedures. Function and Form SMS Mounts combine stylish appearance with unique features, such as infinite height adjustment, built-in cable management and an infinitely...
- Page 9 Fixed and adjustable length column mounts. The Accuset family of LCD/DLP projector mounts dramatically increases the number of installations you can address with Draper mounts. Draper has the solution for any installation—from flush ceiling mounting to of drop. All mounts include the Universal Projector Bracket* (see page 10) to fit any projector designed for inverted mounting with threaded...
- Page 10 Bassett Electronics, Inc., Sebring. Photography: © 2005 Kent Smith, Charlotte, NC. Universal Projector Bracket Draper has solved the projector bracket problem with a bracket that fits virtually any LCD/DLP projector.* The Universal Projector Bracket is now standard on all SMS and Accuset projector mounts.
- Page 11 The perfect marriage of form and function Draper offers one of the broadest lines of mounting solutions for LCD or plasma (flatscreen) displays in the world. Draper’s line of SMS Flatscreen Mounts offer designs which are sleek, unobtrusive and address virtually any installation scenario. To help you find the correct mounting solution quickly and easily the line is divided into 3 categories depending on the size and weight of your flatscreen...
- Page 12 SMS Flatscreen Mounts SMS Flatscreen Mounts SMS Flatscreen Mounts for For displays less than 37˝diagonal and weights less than 66 lbs. Has VESA mounting hole patterns of 75mm x 75mm, 100mm x 100mm, 100mm x 200mm, 200mm x 200mm, 200mm x 400mm or maximum hole pattern separation of 330mm high x 420mm wide.
-
Page 13: Wall Mounts
SMS Flatscreen Mounts for Wall Mounts Whether you need an extremely low profile mount or one that swivels and rotates your display in all directions Draper’s SMS Flatscreen Wall Mounts provide complete flexibility with stylish design. For displays 37˝or greater and weights greater than 66 lbs. - Page 14 Floor Mounts Whether you need to place your mount on the table or floor, or move it from room to room, Draper has the perfect freestanding mount for your needs. Instant portability, sturdy construction and ease of installation make these mounts perfect for your display needs. For displays 37˝or greater and weights greater than 66 lbs.
- Page 15 FH T 1450/2000 Draper’s FH T series mounts blend amazingly clean lines, unsurpassed durability and flexibility for a complete flatscreen display solution. These design conscious floorstands compliment the decor of any lobby, store or home theater. Solid mount construction allows positioning of...
- Page 16 411 S. Pearl St., Spiceland, IN 47385 USA 765-987-7999 Photography: © Barry Champagne, Houston, TX. www.draperinc.com fax 765-987-7142 Copyright © 2007 Draper, Inc. Form L&M2007 Printed in U.S.A. Unless noted otherwise, photos in this publication © Draper, Inc.
