Nocturne
+ C
®
Outdoor crank-operated projection screen

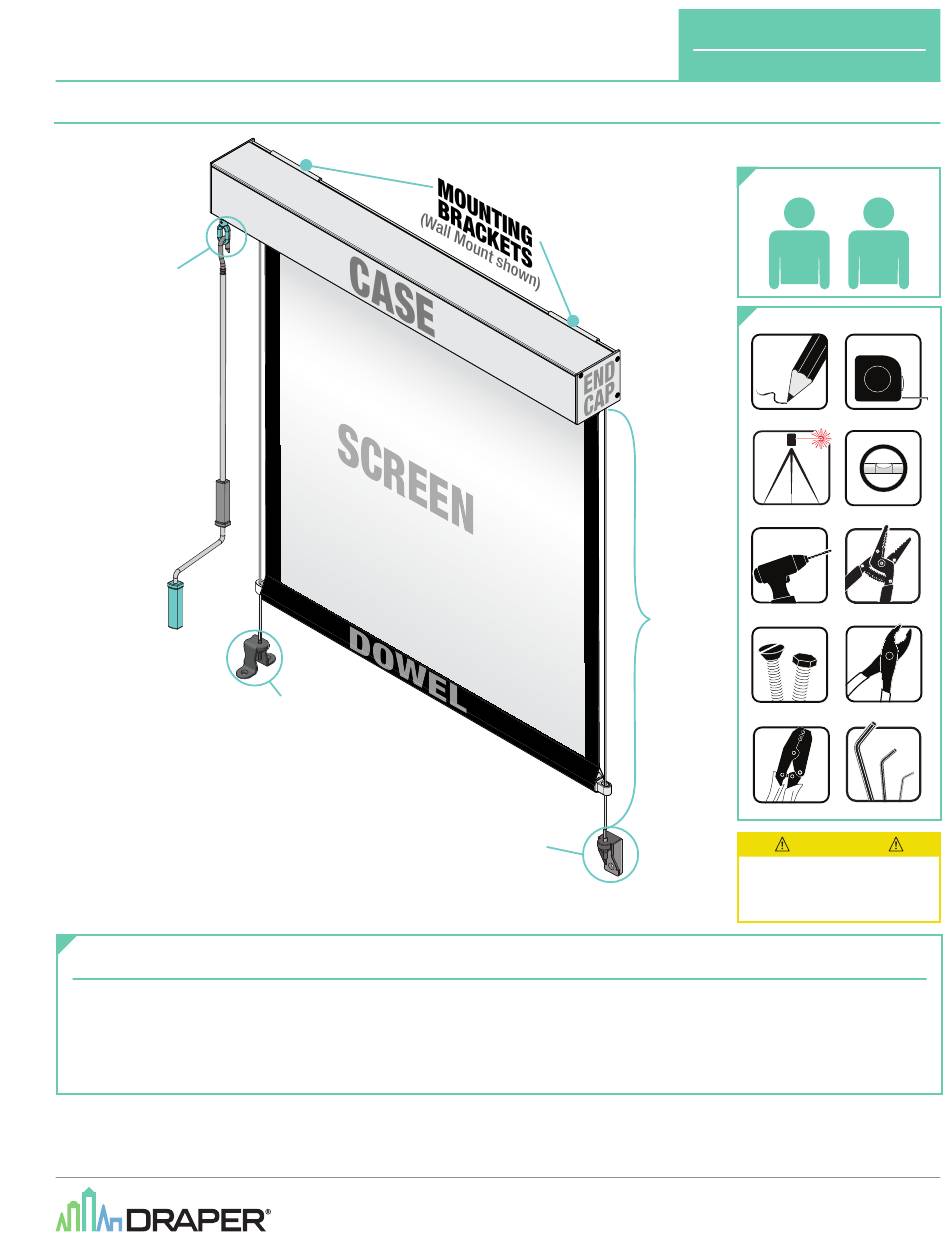

Overview - Components

CRANK
OPERATOR
CRANK
HANDLE
Contents
Overview - Components .......................................................................................1
PLEASE READ - Safety Information ....................................................................2
Section 1 - Prepare for Installation ....................................................................2
CABLE
MOUNT
(Deck Mount
shown)
CABLE MOUNT
(Wall Mount shown)
SIDE
CABLE
Section 4 - Installing Cable Guides ....................................................................4
Section 5 - Component Dimensions ..................................................................5
Section 6 - Assembled Dimensions ...................................................................6
If you have any difficulties installing or servicing your
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
© 2021 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
PERSONNEL REQUIRED
1
2
TOOLS REQUIRED
PENCIL
TAPE MEASURE
LASER LEVEL
LEVEL
POWER DRILL
WIRE STRIPPERS
PLIERS
HARDWARE
(by others)
CRIMPING TOOL
HEX WRENCH
CAUTION
Read and understand
all warnings before
beginning installation.
Nocturne+ C, call your dealer or Draper, Inc.
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: NocturnePlus_C_Inst21
