ShadowBox Clarion
Permanently tensioned projection screen with truly flat
viewing surface for sharper image quality
Screw locations for
assembling frame
TOOLS REQUIRED
PENCIL
SCREWDRIVER
Contents
Overview - Prepare for Installation .....................................................................1
PLEASE READ - Installation Information ...........................................................2
PLEASE READ - Safety Information ....................................................................2
TOP SECTION

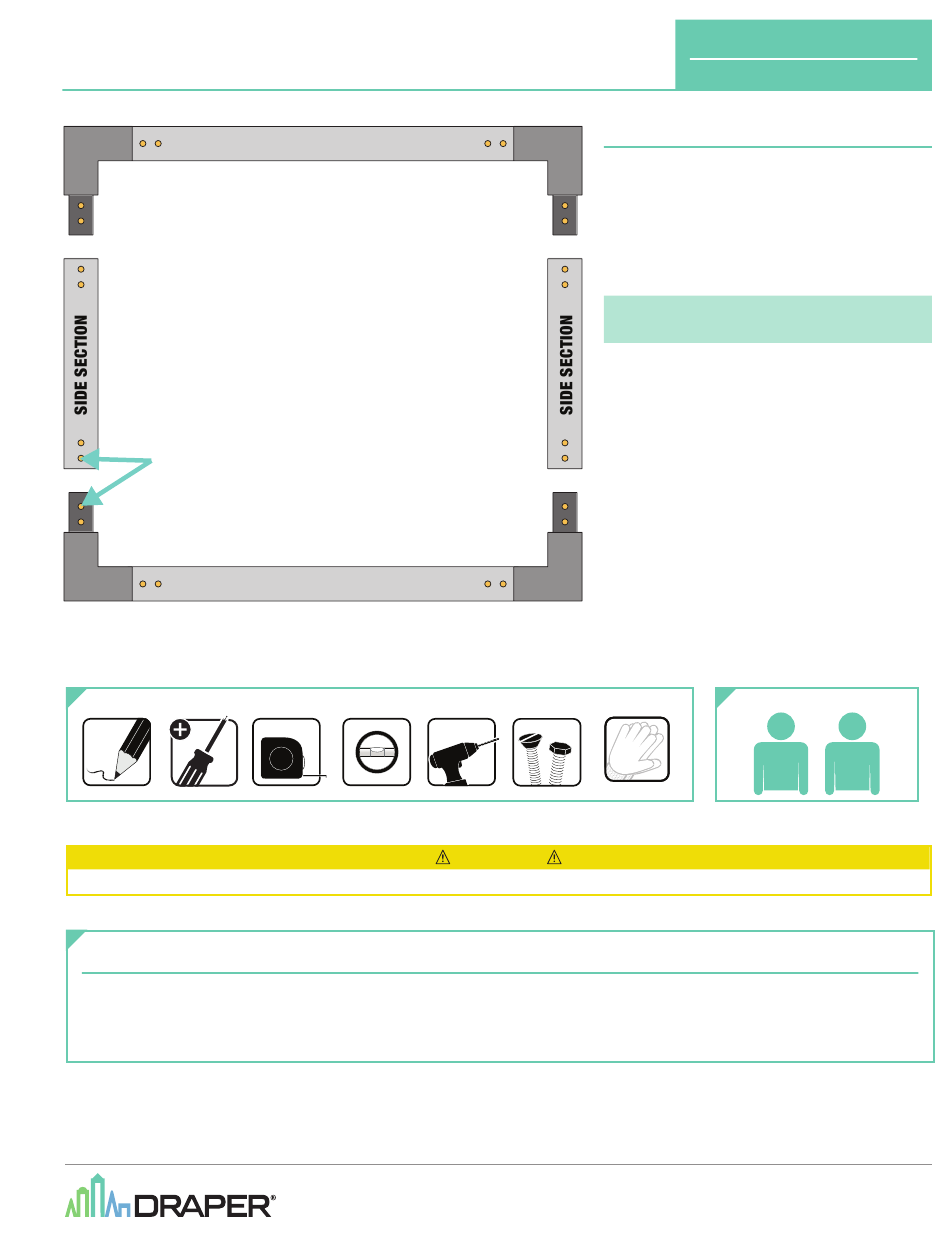

Figure 1
BOTTOM SECTION
TAPE MEASURE
LEVEL
POWER DRILL
Read and understand all warnings
Overview - Prepare for Installation
1. Remove all pieces from the carton.
2
Lay out the sections of the frame by matching up the
numbers located on the back of the frame sections. Snaps
should be facing up.
3. Slide the ends of the castings from the top section into the
side frame sections. Fasten these together using the 1/4"-20
machine screws provided.
4. Repeat this for bottom section of frame
Please Note: Due to the unknown location of wall studs, or
other supporting members, the mounting holes have not
been predetermined.
WHITE GLOVES
HARDWARE
(by others)
CAUTION
before beginning installation.
(P. 2)
Section 1 - Installing Wall Brackets ...................................................................3
Section 2 - Assembling Screen ...........................................................................3
Section 3 - Mounting Frame on Wall Brackets .................................................4
© 2023 All Rights Reserved
INSTRUCTIONS
INSTALLATION & OPERATION
(Fig. 1)
PERSONNEL REQUIRED
If you have any difficulties installing or servicing your
Clarion screen, call your dealer or Draper, Inc.
Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385
draperinc.com | 765.987.7999 | 800.238.7999
|
FORM: Clarion_ShadowBox_Inst23
.
Advertisement
Related Manuals for Draper ShadowBox Clarion
Summary of Contents for Draper ShadowBox Clarion
- Page 1 Section 3 - Mounting Frame on Wall Brackets ..........4 If you have any difficulties installing or servicing your Clarion screen, call your dealer or Draper, Inc. Draper, Inc. | 411 S. Pearl St. Spiceland, IN 47385 draperinc.com | 765.987.7999 | 800.238.7999 © 2023 All Rights Reserved...
- Page 2 Installer must ensure that fasteners used are of adequate strength and suitable for mounting surface chosen. 8. Draper recommends using two people for assembly and installation. When lifting assembled screen, do not lift at only one corner; lift at both corners. Lifting by one corner could result in damage to the screen frame, especially on large screens.
- Page 3 ShadowBox Clarion page 3 of 4 Section 1 - Preparing and Installing Wall Brackets Please Note: Due to the unknown location of wall studs, or other supporting members, the mounting holes have not been predetermined. 1. Determine the desired horizontal distance between the wall brackets.
- Page 4 4. Installers should wash hands before touching the viewing surface. Use extreme care when handling TecVision surfaces. To prevent damaging the TecVision viewing surface, Draper strongly reccommends using the provided white gloves. 5. Remove the viewing surface from the cardboard tube. Unroll the surface from the small cardboard tube.
