Draper Micro Projector Lift Assembly/Installation Instructions

Micro Projector Lift Plenum Housing by Draper

Installing Micro Projector Lift Plenum Housing

The Plenum Housing is shipped pre-assembled in its shortest position. The
height of the plenum can be adjusted by moving the screws to different mount-
ing holes in side panels. You can install the plenum housing in a pre-assembled
state or as separate components, which will require that the plenum housing be
completely disassembled prior to installation.
Please note that if the plenum is to be installed in a space where there is no
access from above the plenum, then it is rec om mend ed that the Micro projector
Lift be installed to the upper section prior to installing the plenum housing.

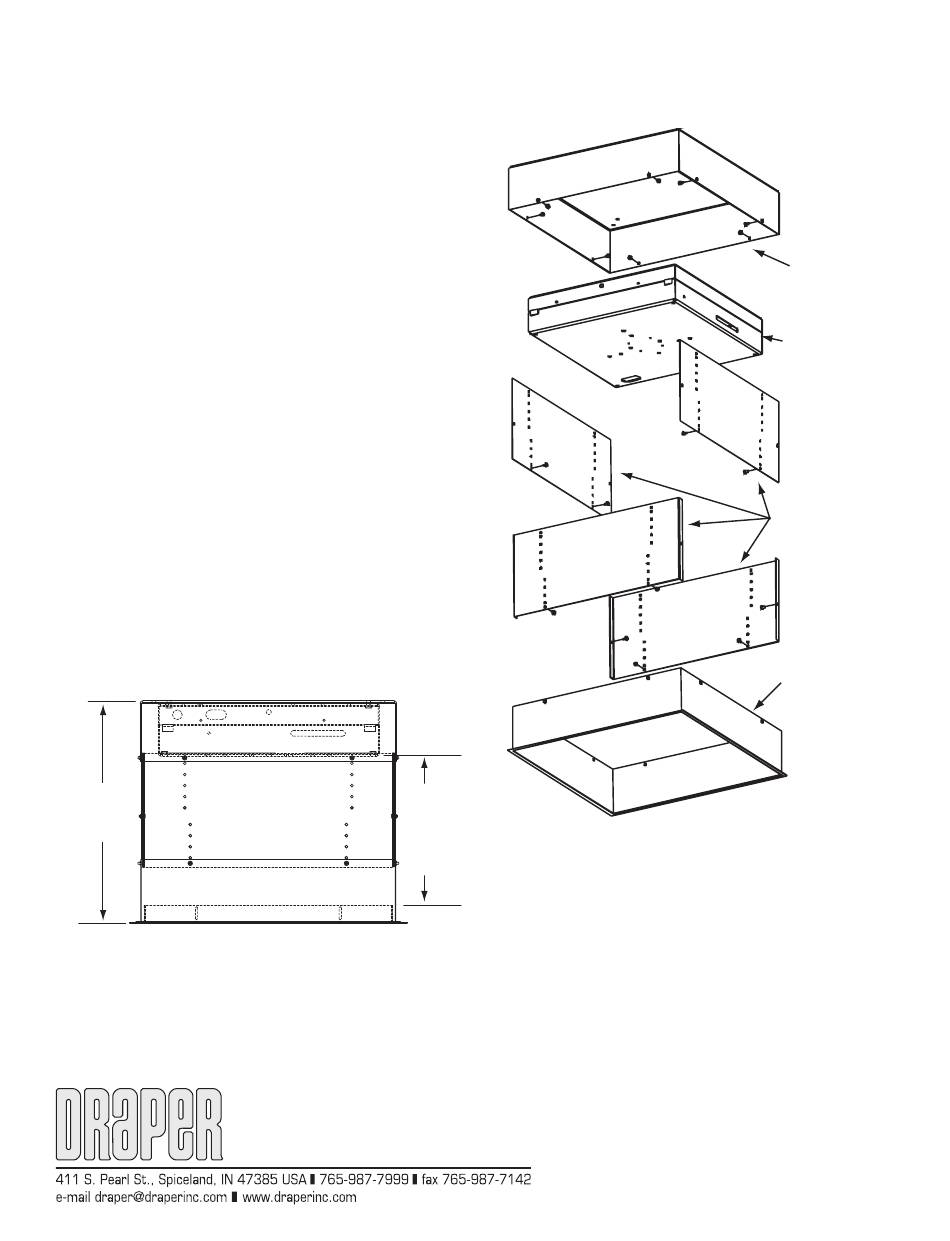

Please refer to drawing below for these instructions.
➀ Install top section of plenum housing using outer four holes located on top
of upper section.
➁ Attach Micro Projector Lift to upper section of plenum housing through the
inner four holes in the upper section with the
5
screws, / " fl at washers, and lock washers provided with plenum housing.
16
The lock washers should be used above the plenum housing (one per
screw); the fl at washers should be used between the plenum housing and
the MPL (three fl at washers per screw).
➂ Attach the two fl at panels of the middle section across from each other
with the clinch nuts to the outside of the housing.
➃ Attach the two middle section panels with the formed ends across from
one another.
➄ Attach lower section of plenum housing.
➅ Use 1" foil tape (roll provided with plenum housing) to cover any unused
screw holes in plenum housing.

Available space in Micro Projector Lift Plenum Housing

Overall
Height
5
20 / " Max.
8
5
12 / " Min.
8
Copyright ©2006 Draper, Inc. Form MicroProjectorLiftPlenum_Inst06
Assembly/Installation Instructions
5 / " –18 x 7 / " hex head
16 8
Available
Projector/
Bracket
Height
13½" Max.
5½" Min.
Print ed in U.S.A.
If you encounter any diffi culties installing your Micro Projector Lift
Plenum Housing, call your dealer or Draper, Inc. in Spiceland, In di ana,
765-987-7999, fax 765-987-7142, or E-mail draper@draperinc.com.
Upper Section
Lift
Middle Section
Lower Section
