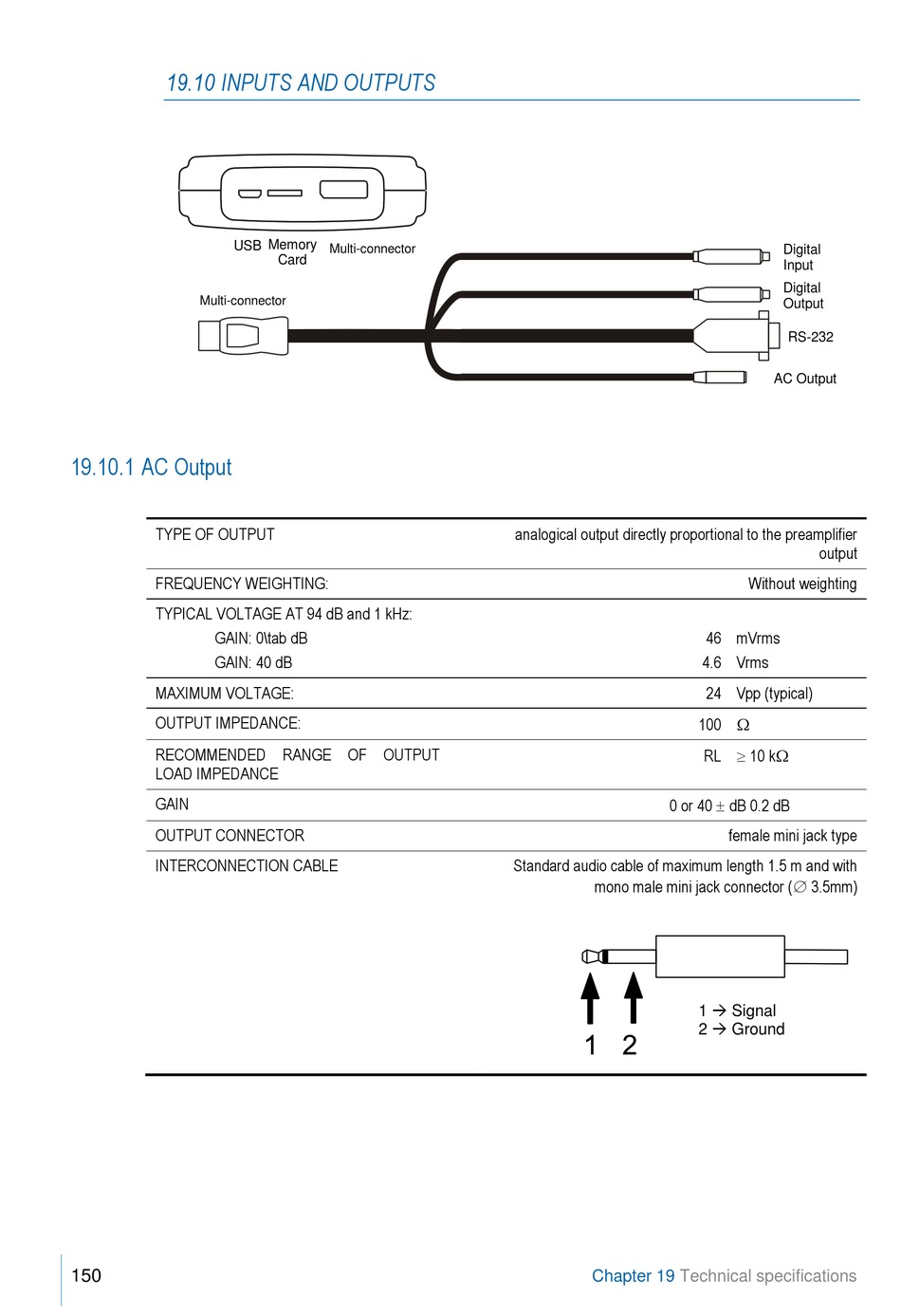

19.10 INPUTS AND OUTPUTS

USB Memory
Multi-connector

19.10.1 AC Output

TYPE OF OUTPUT
FREQUENCY WEIGHTING:
TYPICAL VOLTAGE AT 94 dB and 1 kHz:
GAIN: 0\tab dB
GAIN: 40 dB
MAXIMUM VOLTAGE:
OUTPUT IMPEDANCE:
RECOMMENDED RANGE OF OUTPUT
LOAD IMPEDANCE
GAIN
OUTPUT CONNECTOR
INTERCONNECTION CABLE
150
Multi-connector
Card
analogical output directly proportional to the preamplifier
0 or 40  dB 0.2 dB
Standard audio cable of maximum length 1.5 m and with
mono male mini jack connector ( 3.5mm)
Chapter 19 Technical specifications
Digital
Input
Digital
Output
RS-232
AC Output
output
Without weighting
46 mVrms
4.6 Vrms
24 Vpp (typical)
100 
RL  10 k
female mini jack type
1  Signal
2  Ground
