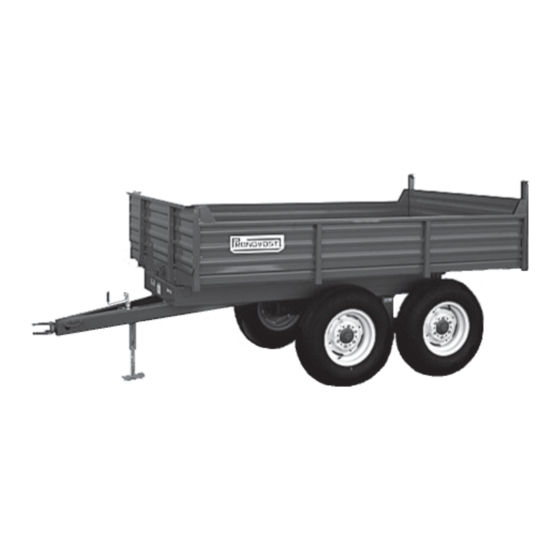

- Page 1 OPERATOR'S / PARTS MANUAL Dump Trailers Models P-509 P-511 No. C1152 06/98...
- Page 2 Copyright © Les Machineries Pronovost Inc., 1999 All rights reserved. Printed in Canada.
-
Page 3: Table Of Contents
Basic Start-up Procedures .................. 9 Maintenance ......................10 Storage ........................11 Specifications ......................12 Parts List ........................13 Dump Trailers P-509 ..................13 Dump Trailers P-511 ..................15 Hub H4000 ...................... 17 Hub H5000 ...................... 18 Cylinder 35TR20 ....................19 Torque Chart ...................... -
Page 5: Introduction
INTRODUCTION CONGRATULATIONS! Thank you for choosing PRONOVOST. We are NOW take a moment to enter the model, serial number confident this equipment will meet your requirements in and the date of purchase of your Trailer in the space terms of quality, performance and reliability. -
Page 6: Safety
SAFETY GENERAL SAFETY WHEN YOU SEE THIS SYMBOL skin. Do not use your hands to locate a leak. SAFETY IN OPERATION 1) WARNING! Do not overload your trailer, do not exceed the load capacity indicated in the specifications on page 12. 2) Be sure there are no obstructions around the equipment and that no one stands near the ATTENTION! -
Page 7: Safety With Maintenance
SAFETY (cont'd) SAFETY WITH MAINTENANCE 2) Be alert while driving on the road. Never carry passengers. 1) Perform maintenance according to SAFETY IN STORAGE recommendations contained in this manual. 2) Before performing any work under the raised 1) If the trailer is to be stored for a certain period of platform, always install the safety support time, install wooden blocks under the axles. -
Page 8: Decals
DECALS SAFETY DECALS MAINTENANCE DECALS The safety decals are affixed wherever special safety The maintenance decals indicate the points requiring precautions are indicated. Locate them on the lubrication. Refer to maintenance section for more equipment and read them carefully. If a decal is details. -
Page 9: Start-Up
START-UP BASIC START-UP PROCEDURES 7) Verify for adequate tightness of all fastening devices. Refer to torque chart on page 20. 1) Lubricate all grease fittings with a good quality 8) Operate the hydraulic system a few times, raising multiuse grease. and lowering the platform in order to remove any trapped air in the system. -
Page 10: Maintenance
MAINTENANCE Before performing any work under the raised 5) Lubricate panel release mechanism, front and rear, platform, always install the safety support every 20 hours of operation. provided. 6) Check tire pressure every 50 hours of operation, 1) Wipe off all grease fittings with a clean cloth adjust according to manufacturer's before adding grease in order to avoid injecting dirt recommendation indicated on the tires. -
Page 11: Storage
STORAGE 1) Store in a cool, dry place. 4) Clean your trailer. 2) Install wooden blocks under the axles to keep the 5) Thoroughly inspect all parts of the trailer. Replace tires off the ground and cover them if left exposed or repair worn or defective parts. -
Page 12: Specifications
SPECIFICATIONS SERVICE AGRICULTURAL AGRICULTURAL MODEL P-509 P-511 Capacity 8000 lbs / 3632 kg 10000 lbs / 4540 kg Interior dimensions of box 65" x 106" / 1651 mm x 2692 m 65" x 106" / 1651 mm x 2692 mm Thickness (bottom of the box) 3/16"... -
Page 13: Parts List
DUMP TRAILER P-509 - 13 -... - Page 14 DUMP TRAILER P-509 REF. PART # DESCRIPTION 120-01141 Main frame ......................110-08961 Cross-beam (from serial number 5541 and up) ............150-00311 Axle 2" ø (welded) ....................51441 Complete hub assembly H-5000 ................PN11L15 Tire 11L15 8-ply with tube ..................R1586 Rim 15"...
-
Page 15: Dump Trailers P-511
DUMP TRAILER P-511 - 15 -... - Page 16 DUMP TRAILER P-511 REF. PART # DESCRIPTION 120-01141 Main frame ......................110-09001 Left tandem frame ....................160-01091 Brass bushing 1 3/4" d.i. x 2" d.e. x 2" lg ..............Std. Grease fitting 1/4" - 28 straight ................110-09002 Right tandem frame ....................150-01851 Axle 1 3/4"...
-
Page 17: Hub H4000
HUB H4000 #51503 REF. PART # DESCRIPTION Std. Cotter pin 5/32" x 1 1/2" ................51528 Dust cap D-4000 2 5/16" ø ................51529 Castle nut 1" NF x 9/16" thick ..............Std. Flat washer 1" ................... 51530 Roller bearing: cone no. LM67048 ..............51531 Roller bearing: cup no. -
Page 18: Hub H5000
HUB H5000 #51441 REF. PART # DESCRIPTION Std. Cotter pin 5/32" x 1 1/2" ................51417 Dust cap 2.570" ø ..................51442 Castle nut 7/8" NF ..................Std. Flat washer 7/8" ..................51416 Roller bearing: cone no. 4T-LM48548 ............. 51415 Roller bearing: cup no. -
Page 19: Cylinder 35Tr20
CYLINDER 35TR20 REF. PART # DESCRIPTION Voir RK35TR125 O-ring ....................Voir RK35TR125 Back-up ring ..................Voir RK35TR125 O-ring ....................Voir RK35TR125 O-ring ....................Voir RK35TR125 O-ring ....................Voir RK35TR125 Back-up ring ..................Voir RK35TR125 Wiper ....................492403 Yoke (for 3 1/2" tube) ................Std. -
Page 20: Torque Chart
TORQUE CHART TORQUE SPECIFICATION TABLE Thread UNC and UNF Grade 2 Grade 5 Grade 8* Bolt size Torque Torque Torque Pound feet Newton meters Pound feet Newton meters Pound feet Newton meters Inches min. max. min. max. min. max. min. max. -
Page 21: Warranty
WARRANTY PRONOVOST warrants this product to the initial All PRONOVOST spare parts purchased are covered purchaser for the period of one year from the date of by a three (3) month warranty. purchase against defects in materials and workmanship. This warranty becomes void and nul if the equipment is... - Page 24 Ce manuel est aussi disponible en français. Veuillez téléphoner. INNOVATION - EXCELLENCE LES MACHINERIES PRONOVOST INC. 260, route 159, Saint-Tite, Quebec, Canada, G0X 3H0 Tel.: (418) 365-7551, Fax: (418) 365-7954...
