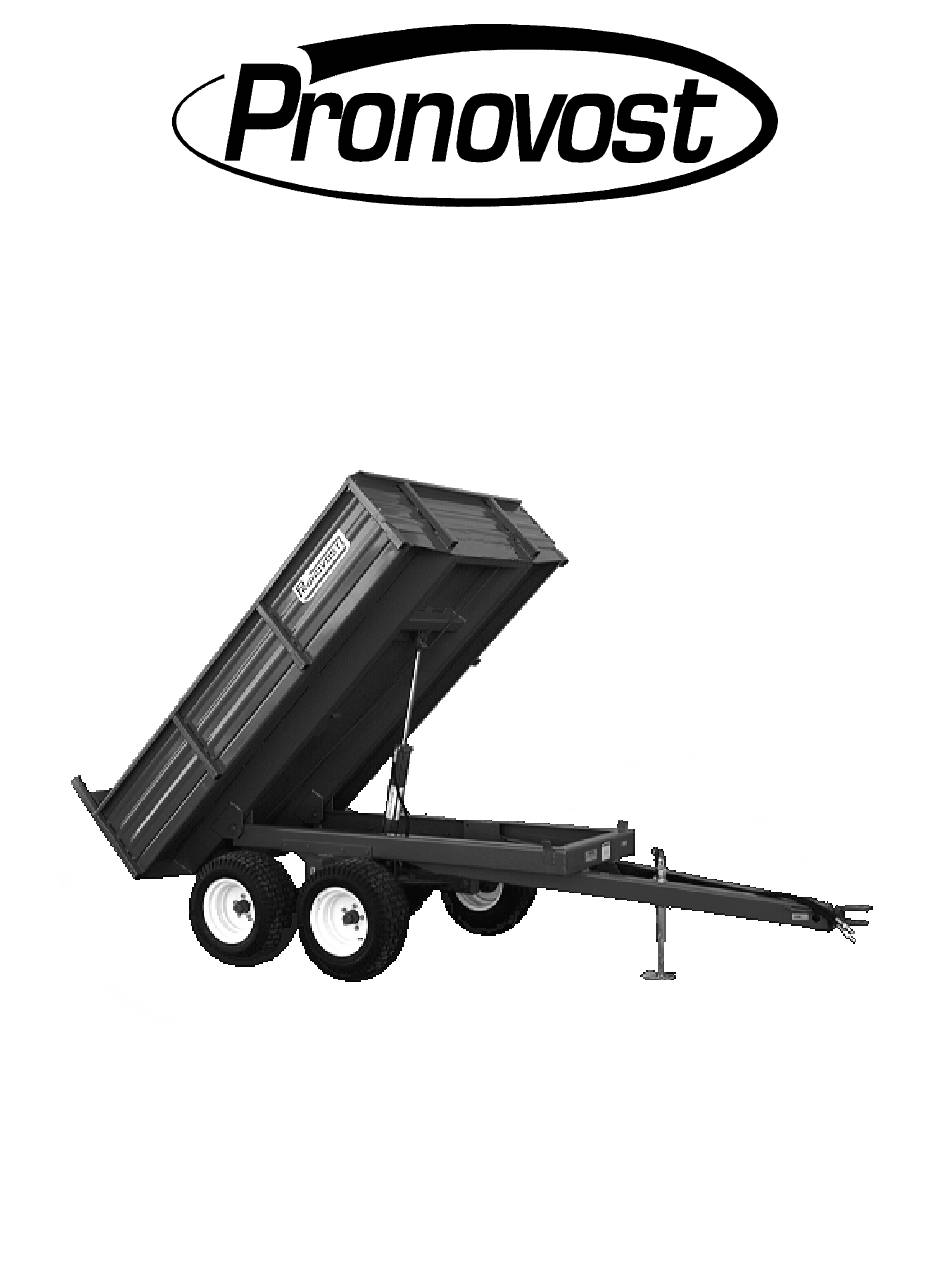

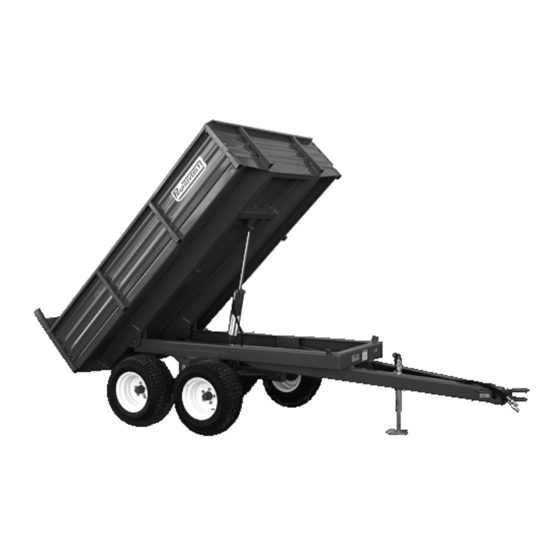

- Page 1 OPERATOR'S / PARTS MANUAL Dump Trailers Models P-505 P-505 P-505 P-505 P-505 No. C1456 02/03...
- Page 2 Copyright © Les Machineries Pronovost Inc., 2003 All rights reserved. Printed in Canada.
-
Page 3: Table Of Contents
Basic Start-up Procedures ................. 9 Maintenance ......................10 Storage ........................11 Specifications ......................12 Parts List ........................13 Dump Trailers P-505 ..................13 Hub H2500 ..................... 15 Cylinder 25TR20 .................... 16 Torque Chart ......................17 Warranty ........................18 - 3 -... -
Page 5: Introduction
INTRODUCTION CONGRATULATIONS! Thank you for choosing PRONOVOST. We are NOW take a moment to enter the model, serial confident this equipment will meet your requirements number and the date of purchase of your Trailer in the in terms of quality, performance and reliability. -
Page 6: Safety
SAFETY GENERAL SAFETY WHEN YOU SEE THIS SYMBOL 5) Hydraulic fluids under pressure can damage your skin. Do not use your hands to locate a leak. SAFETY IN OPERATION 1) WARNING! Do not overload your trailer, do not exceed the load capacity indicated in the specifications on page 12. -
Page 7: Safety With Maintenance
SAFETY (cont'd) SAFETY WITH MAINTENANCE SAFETY IN TRANSPORT 1) Perform maintenance according to 1) On public roads, use proper safety lights and recommendations contained in this manual. check local regulations. 2) Before performing any work under the raised 2) Be alert while driving on the road. Never carry platform, always install the safety support passengers. -
Page 8: Decals
DECALS SAFETY DECALS MAINTENANCE DECALS The safety decals are affixed wherever special safety The maintenance decals indicate the points requiring precautions are indicated. Locate them on the lubrication. Refer to maintenance section for more equipment and read them carefully. If a decal is details. -
Page 9: Start-Up
START-UP BASIC START-UP PROCEDURES 6) Install all hydraulic hoses and fittings compatible with your equipment. 1) Lubricate all grease fittings with a good quality 7) Verify for adequate tightness of all fastening multiuse grease. devices. Refer to torque chart on page 17. 2) Lubricate panel release mechanism, front and rear 8) Operate the hydraulic system a few times, raising with good quality oil. -
Page 10: Maintenance
MAINTENANCE Before performing any work under the raised 5) Lubricate panel release mechanism, front and rear, platform, always install the safety support every 20 hours of operation. provided. 6) Check tire pressure every 50 hours of operation, 1) Wipe off all grease fittings with a clean cloth adjust according to manufacturer's before adding grease in order to avoid injecting recommendation indicated on the tires. -
Page 11: Storage
STORAGE 1) Store in a cool, dry place. 4) Clean your trailer. 2) Install wooden blocks under the axles to keep the 5) Thoroughly inspect all parts of the trailer. Replace tires off the ground and cover them if left exposed or repair worn or defective parts. -
Page 12: Specifications
SPECIFICATIONS SERVICE OFF-ROAD MODEL P-505 Load capacity 5000 lbs / 2270 kg Width x length interior of box in/mm 60 x 94 / 1524 x 2388 Thickness of floor 3/16" / 4.78 mm Side panel height 12G* 14" / 356 mm Front/back panel height 12G* 19"... -
Page 13: Parts List
DUMP TRAILER P-505 170-01523 - 13 -... - Page 14 DUMP TRAILER P-505 (cont'd) REF. PART # DESCRIPTION 120-02011 Main frame ......................110-10022 Left tandem frame (up to serial # 8260) ..............110-10026 Left tandem frame (from serial # 8261 and up) ............160-01091 Brass bushing 1 3/4" i.d. x 2" o.d. x 2" lg ..............
-
Page 15: Hub H2500
HUB H2500 REF. PART # DESCRIPTION Std. Cotter pin 5/32" x 1 3/4" ................53019 Dust cap D-1000 1.980" ø ................. 51529 Castle nut 1" NF x 9/16" thick ..............53058 Roller bearing Timken: cone no. L44649 ............53023 Roller bearing Timken: cup no. L44610 ............53024 Rim screw 1/2"... -
Page 16: Cylinder 25Tr20
CYLINDER 25TR20 REF. PART # DESCRIPTION 1 See #RK25TR O-ring 1/8" x 2¼" x 2½" ................2 See #RK25TR Back-up 2½" o.d. x 3/16 ø ................. 3 See #RK25TR O-ring 3/16" x 2 1/8" x 2½" ............... 4 See #RK25TR O-ring 1/16"... -
Page 17: Torque Chart
TORQUE CHART TORQUE SPECIFICATION TABLE Thread UNC and UNF Grade 2 Grade 5 Grade 8* Bolt size Torque Torque Torque Pound feet Newton meters Pound feet Newton meters Pound feet Newton meters Inches min. max. min. max. min. max. min. max. -
Page 18: Warranty
WARRANTY PRONOVOST warrants this product to the initial All PRONOVOST spare parts purchased are covered purchaser for the period of one year from the date of by a three (3) month warranty. purchase against defects in materials and workmanship. This warranty becomes void and nul if the equipment... - Page 20 Ce manuel est aussi disponible en français. Veuillez téléphoner. INNOVATION - EXCELLENCE LES MACHINERIES PRONOVOST INC. 260, route 159, Saint-Tite, Quebec, Canada, G0X 3H0 Tel.: (418) 365-7551, Fax: (418) 365-7954 www.pronovost.qc.ca...
