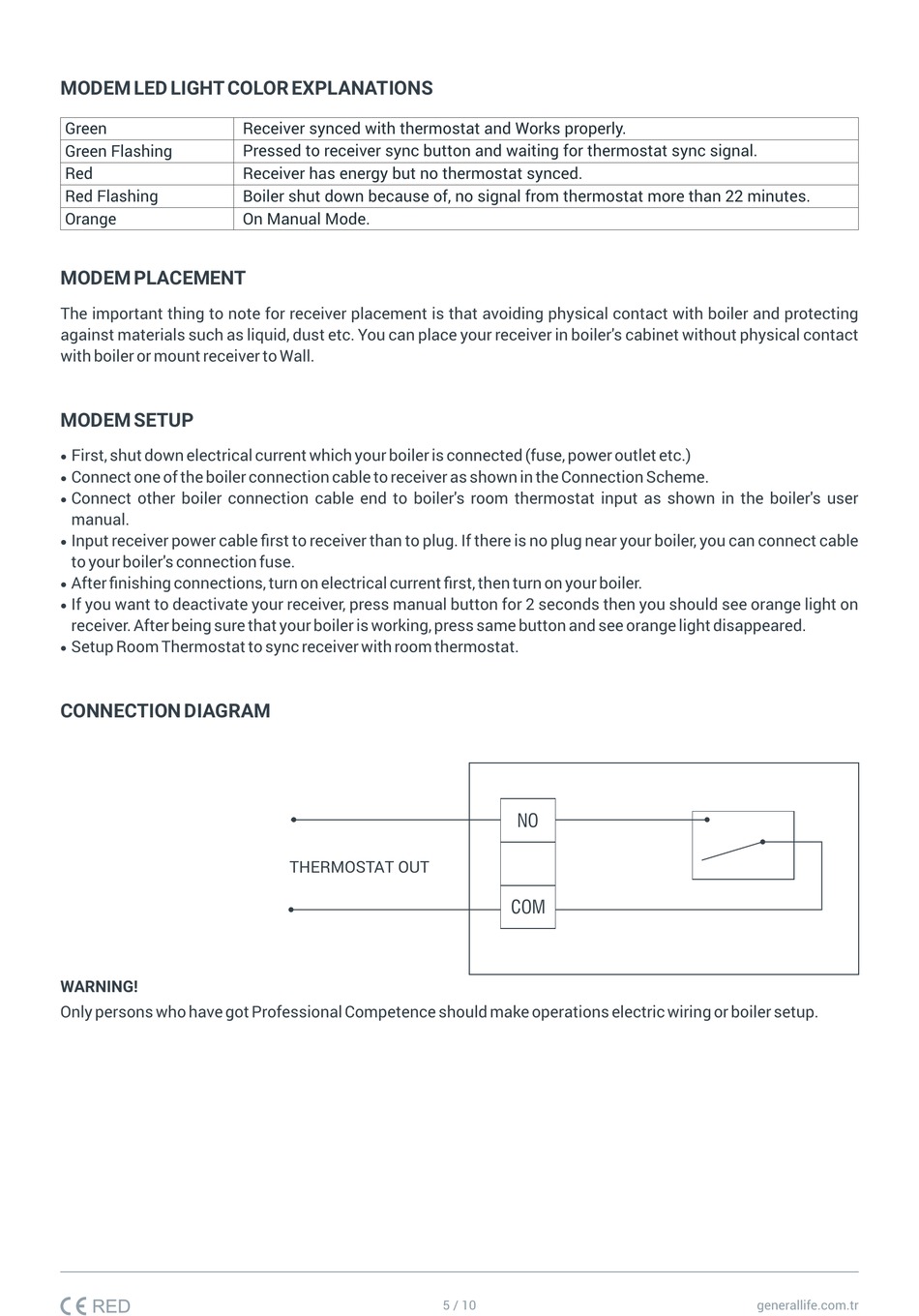

Modem Placement; Modem Setup; Connection Diagram - GENERAL LIFE HT250 SET Manual

MODEM LED LIGHT COLOR EXPLANATIONS
Green
Green Flashing
Red
Red Flashing
Orange

MODEM PLACEMENT

The important thing to note for receiver placement is that avoiding physical contact with boiler and protecting
against materials such as liquid, dust etc. You can place your receiver in boiler's cabinet without physical contact
with boiler or mount receiver to Wall.

MODEM SETUP

First, shut down electrical current which your boiler is connected (fuse, power outlet etc.)

Connect one of the boiler connection cable to receiver as shown in the Connection Scheme.

Connect other boiler connection cable end to boiler's room thermostat input as shown in the boiler's user

manual.
Input receiver power cable first to receiver than to plug. If there is no plug near your boiler, you can connect cable

to your boiler's connection fuse.
After finishing connections, turn on electrical current first, then turn on your boiler.

If you want to deactivate your receiver, press manual button for 2 seconds then you should see orange light on

receiver. After being sure that your boiler is working, press same button and see orange light disappeared.
Setup Room Thermostat to sync receiver with room thermostat.


CONNECTION DIAGRAM

WARNING!
Only persons who have got Professional Competence should make operations electric wiring or boiler setup.
Receiver synced with thermostat and Works properly.
Pressed to receiver sync button and waiting for thermostat sync signal.
Receiver has energy but no thermostat synced.
Boiler shut down because of, no signal from thermostat more than 22 minutes.
On Manual Mode.
THERMOSTAT OUT
NO
COM
5 / 10 generallife.com.tr
