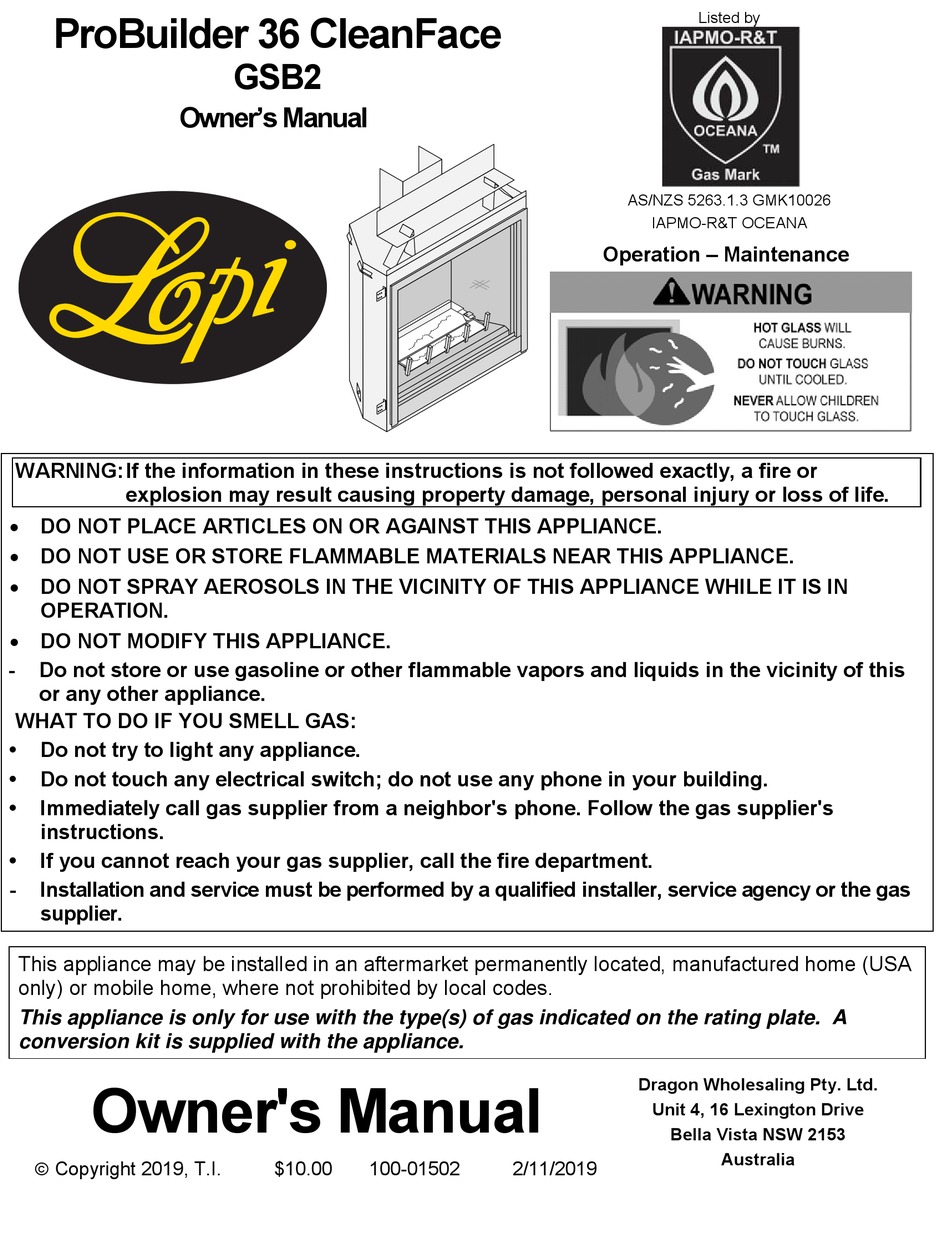

ProBuilder 36 CleanFace
Owner's Manual
WARNING: If the information in these instructions is not followed exactly, a fire or
explosion may result causing property damage, personal injury or loss of life.
 DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
 DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
 DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN
OPERATION.
 DO NOT MODIFY THIS APPLIANCE.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS:
•
Do not try to light any appliance.
•
Do not touch any electrical switch; do not use any phone in your building.
•
Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's
instructions.
•
If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency or the gas
supplier.
This appliance may be installed in an aftermarket permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local codes.
This appliance is only for use with the type(s) of gas indicated on the rating plate. A
conversion kit is supplied with the appliance.
Owner's Manual
 Copyright 2019, T.I.
GSB2
$10.00
100-01502
AS/NZS 5263.1.3 GMK10026
IAPMO-R&T OCEANA
Operation – Maintenance
Dragon Wholesaling Pty. Ltd.
Unit 4, 16 Lexington Drive
Bella Vista NSW 2153
2/11/2019
Listed by
Australia

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ProBuilder 36 CF GSB2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lopi ProBuilder 36 CF GSB2

Summary of Contents for Lopi ProBuilder 36 CF GSB2

  • Page 1 Listed by ProBuilder 36 CleanFace GSB2 Owner’s Manual AS/NZS 5263.1.3 GMK10026 IAPMO-R&T OCEANA Operation – Maintenance WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury or loss of life. ...

  • Page 2: Introduction

    Table of Contents Introduction We welcome you as a new owner of a ProBuilder GSB2 gas fireplace. This manual details operation and maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. Important Information No other ProBuilder gas fireplace has the same serial number as yours.

  • Page 3: Table Of Contents

    Introduction Table of Contents Introduction ........... 2 Log Set Overview ..........13     Rear Log ............14   Important Information ........2   Left Log ............. 14   Installation Warnings ........2   Right Log ............15   Table of Contents .......... 3  ...
  • Page 4 Safety Precautions IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department This unit must be installed by a qualified installer to prevent the possibility of an explosion.
  • Page 5 Safety Precautions Do not place clothing or other Light the heater using the built-in flammable items on or near the igniter. Do not use matches or heater. Because this heater can any other external device to light be controlled by a thermostat your heater.

  • Page 6: Before You Begin

    Operation Before You Begin  Read this entire manual before you use your new fireplace (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Location of Controls There is a door on the lower portion of the screen assembly to provide access to the manual controls on the fireplace.

  • Page 7: Starting The Fireplace For The First Time

    Operation Starting the Fireplace for the First Time  Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. This is normal.

  • Page 8: Adjusting The Flame Height

    Operation Adjusting the Flame Height This fireplace has an adjustable flame to tailor the look and heat output to your specific needs. It is adjusted by turning the flame adjust knob. Adjusting the Blower Speed The blower helps transfer heat from the heater into the room. It will not turn on until the heater is up to temperature (approximately 10 minutes after starting).

  • Page 9: Continuous Pilot / Greensmart™ Pilot Switch

    Operation Continuous Pilot / GreenSmart™ Pilot Switch This fireplace may run with the pilot continuously running or in GreenSmart (intermittent) mode. For most homeowners, the GreenSmart mode is preferred (this saves fuel, doesn’t give off un-needed heat). However, in some situations the homeowner may prefer to switch the fireplace to continuous pilot. The most typical reasons for switching to continuous pilot are: ...

  • Page 10: Glass Frame Removal And Installation

    Maintenance Glass Frame Removal and Installation A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall be installed for the protection of children and other at-risk individuals. If the barrier becomes damaged, the barrier shall be replaced with the manufacturer’s barrier for this appliance.
  • Page 11 Maintenance  Remove the glass frame following the directions below. Open the latches holding the glass frame in place (start with the bottom) - follow the directions shown to the right. Pliers may be used Latch Top of Firebox Glass Lift the glass frame up and pull it forward to remove.
  • Page 12 Maintenance  The latch can come loose from glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. © Travis Industries 2/11/19 - 1502 PB 36 CF Operation (Aust)

  • Page 13: Log Set Installation

    Maintenance Log Set Installation Installation Warnings NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance before installing the log set. If using firebacks, install them prior to installing the log set.  The logs are fragile, especially after being exposed to heat. ...

  • Page 14: Rear Log

    Maintenance Rear Log The rear log has two pockets that insert over two tabs on the back burner (see photos below). Place the log in place and push it back. The log straddles the burner and does not cover any burner holes. Make sure the corner of the log is lined up with the rivet on the burner as shown in the lower right picture.

  • Page 15: Right Log

    Maintenance Right Log The right log has a channel (C) on the bottom that fits over a ridge on the burner and a notch (D) that contacts the grate. Right Front Twig The right front twig has a hole for a locating pin on the bottom and a notch to rest on the grate at one end.

  • Page 16: Right Rear Twig

    Maintenance Right Rear Twig The right rear twig is shown below. It has a hole for a locating pin on the bottom. When in place, the front tip just barely rests on the right log as shown below. © Travis Industries 2/11/19 - 1502 PB 36 CF Operation (Aust)

  • Page 17: Center Log

    Maintenance Center Log The center log has a hole for a locating pin on the bottom and a notch to rest on the grate at one end. Ember Chunk Identification There are (2) ember chunks, that look very similar, included with this log set. It is important that they are on the correct side of the burner or they may cause flame impingement.

  • Page 18: Left Ember Chunk

    Maintenance Left Ember Chunk The left ember chunk and has a flat bottom and charred end. The chunk fits behind the bar, 2 from the left, of the log grate. The charred end should be to the left. Place the ember chunk as shown below. Make sure the chunk is positioned so it does not cover any burner holes.

  • Page 19: Ember Installation

    Maintenance Ember Installation A bag of embers is provided to further enhance the firebox. Place the embers on the firebox floor and on the burner. Do not place embers over any of the burner holes or air channels. Rock Wool Placement The included rock wool is placed on top of the burner to enhance the glow from the burner.

  • Page 20: Maintaining Your Heater's Appearance

    Maintenance Maintaining Your Heater's Appearance The appliance must be completely cool prior to conducting service. Cleaning The Glass The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the surface.

  • Page 21: Yearly Service Procedure

    Maintenance Yearly Service Procedure WARNING: Failure to inspect and maintain the stove may lead to improper combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician.  Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass. Inspect and operate the pressure relief mechanism to verify relief mechanisms are free from obstruction to operate.

  • Page 22: Troubleshooting Table

    Maintenance Troubleshooting Table Problem: Possible Cause: Don't Call for Service Until You: A gas shut off valve is turned off Check all gas shut off valves Pilot Will Not Light The gas control knob isn't turned to "PILOT" See "Starting the Pilot Light" Step C The valve control knob isn't pushed in See "Starting the Pilot Light"...

  • Page 23: Replacement Parts List

    Maintenance Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. GLASS w/FRAME 270-01009 SCREEN BARRIER, FRONT...

  • Page 24: Wiring Diagram

    Maintenance Wiring Diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. Accessory Power Blower Rheostat ThermoDisk Hookup Optional Blower(s) Power In Appliance Ground 3.15A FUSE Base Pilot Sensor Integrated Flame Fireplace Detect Control...

  • Page 25: Safety Label

    Safety Label Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 2/11/19 - 1502 PB 36 CF Operation (Aust)

  • Page 26: Index

    Index Index Adjusting the Blower Speed ....... 8 Maintaining Your Heater's Appearance ... 20 Adjusting the Flame Height ........ 8 Normal Operating Odors ........9 Before You Begin ..........6 Power Outages ..........9 Continuous Pilot / GreenSmart™ Pilot Switch ... 9 Replacement Parts List ........
