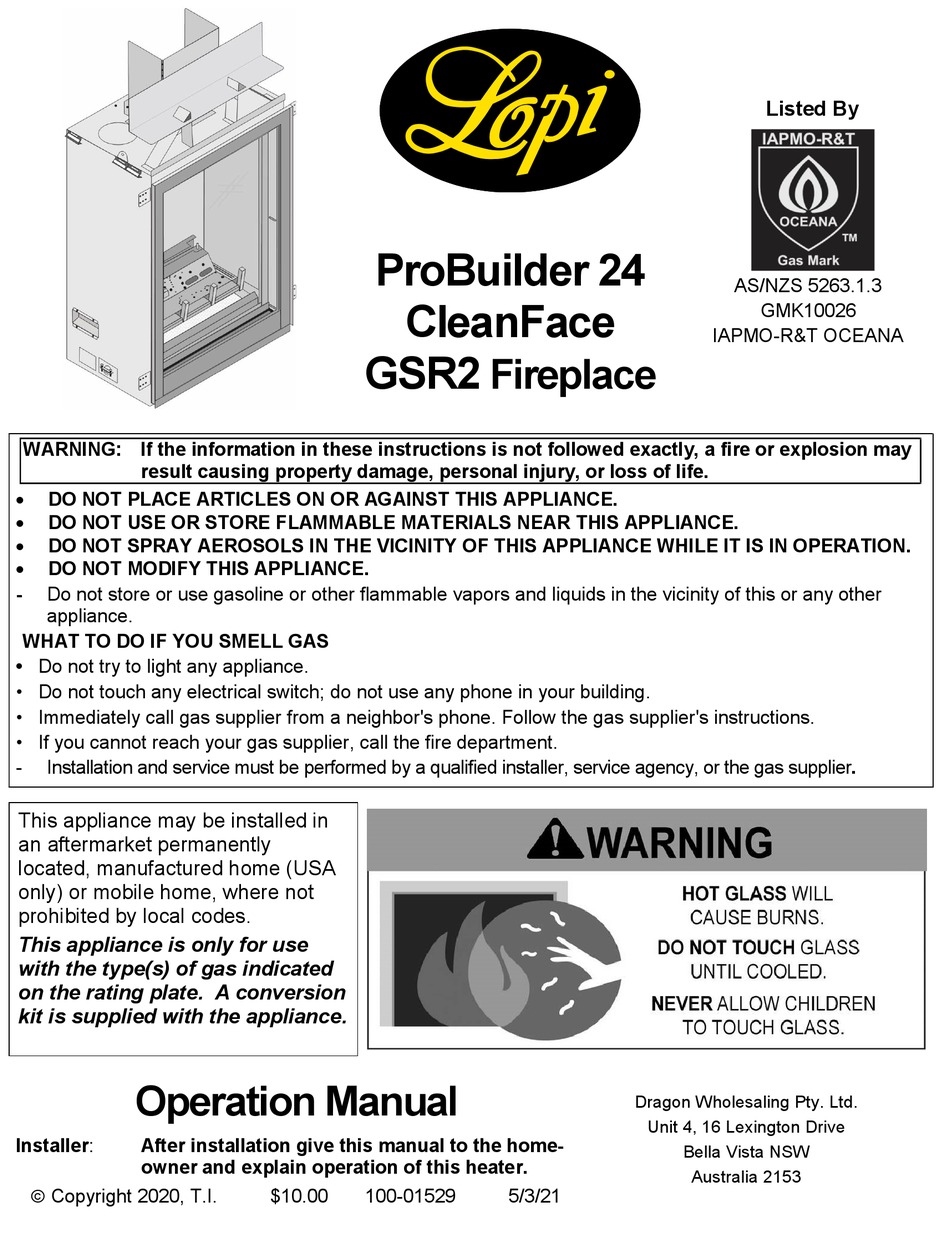

WARNING: If the information in these instructions is not followed exactly, a fire or explosion may
result causing property damage, personal injury, or loss of life.
DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.
-
Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Immediately call gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
This appliance may be installed in
an aftermarket permanently
located, manufactured home (USA
only) or mobile home, where not
prohibited by local codes.
This appliance is only for use
with the type(s) of gas indicated
on the rating plate. A conversion
kit is supplied with the appliance.
Operation Manual
Installer:
After installation give this manual to the home-
owner and explain operation of this heater.
Copyright 2020, T.I.
ProBuilder 24
CleanFace
GSR2
$10.00
100-01529
Fireplace
Dragon Wholesaling Pty. Ltd.
Unit 4, 16 Lexington Drive
5/3/21
Listed By
AS/NZS 5263.1.3
GMK10026
IAPMO-R&T OCEANA
Bella Vista NSW
Australia 2153
Advertisement
Table of Contents
Related Manuals for Lopi ProBuilder 24 CleanFace GSR2
Summary of Contents for Lopi ProBuilder 24 CleanFace GSR2
- Page 1 Listed By ProBuilder 24 AS/NZS 5263.1.3 CleanFace GMK10026 IAPMO-R&T OCEANA GSR2 Fireplace WARNING: If the information in these instructions is not followed exactly, a fire or explosion may result causing property damage, personal injury, or loss of life. DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE. ...
-
Page 2: Introduction
Table of Contents Introduction We welcome you as a new owner of a ProBuilder GSR2 gas fireplace. This manual details operation and maintenance of this fireplace. Please familiarize yourself with the Owner's Manual before operating your heater and save the manual for future reference. Important Information No other ProBuilder gas fireplace has the same serial number as yours. -
Page 3: Table Of Contents
Introduction Table of Contents Introduction ........... 2 Battery Replacement ........14 Important Information ........2 Opening the Battery Box ........ 14 Battery Installation .......... 14 Installation Warnings ........2 Transmitter Battery Installation ..... 14 Table of Contents .......... 3 Child-Proof Feature ........14 Features ............ - Page 4 Safety Precautions IF YOU SMELL GAS: * Do not light any appliance * Extinguish any open flame * Do not touch any electrical switch or plug or unplug anything * Open windows and vacate building * Call gas supplier from neighbor's house, if not reached, call fire department This unit must be installed by a qualified installer to prevent the possibility of an explosion.
- Page 5 Safety Precautions Do not place clothing or other Light the heater using the built-in flammable items on or near the igniter. Do not use matches or heater. Because this heater can any other external device to light be controlled by a thermostat your heater.
-
Page 6: Before You Begin
Operation Before You Begin Read this entire manual before you use your new heater (especially the section "Safety Precautions" on pages 4 & 5). Failure to follow the instructions may result in property damage, bodily injury, or even death. Remote Control Warnings KEEP BATTERIES AND COVER INSTALLED AT ALL TIMES KEEP BATTERIES INSTALLED AT ALL TIMES... -
Page 7: Remote Set-Up
Operation Remote Set-Up Verify the Switch is on “REMOTE” The battery holder has a switch built into it (see Figure 1). This switch must remain in the REMOTE position for the remote to operate. Figure 1 Synchronize the Transmitter to the IFC The transmitter will need to be synchronized to the IFC (Integrated Fireplace Control) before the remote will work correctly. -
Page 8: Location Of Controls
Operation Location of Controls Direct Operation The fireplace may be directly operated from the battery holder. The three positions are shown below: ON (all the way left)– Burner turns on (regardless of transmitter settings). OFF (all the way right) – Burner turns off (regardless of transmitter settings). REMOTE (middle position) –... -
Page 9: Starting The Fireplace For The First Time
Operation Starting the Fireplace for the First Time Burn the heater at a high setting with the blower off for an extended period (up to 48 hours). This will cure the painted surfaces. Fumes from the paint curing and oil burning off the steel will occur. -
Page 10: Remote Operation
Operation Remote Operation When the switch on the battery holder is set to “REMOTE” the transmitter operates the fireplace. Once you understand how the transmitter works, you will be able to operate your fireplace quickly and easily. Display Overview The transmitter display has four main sections (see Figure 3). Figure 3 Listen for the “Beep”... -
Page 11: Manual On-Off / Smart Thermostat / Standard Thermostat
Operation Manual On-Off / Smart Thermostat / Standard Thermostat Use the thermostat button to cycle through the three thermostat settings (see Figure 4 Figure 4 MANUAL ON/OFF – The burner will turn on and off using the remote (see ). -
Page 12: Mode Controls (Flame, Blower, Emberbed Light)
Operation Mode Controls (Flame, Blower, EmberBed Light) Use the mode button to cycle through the rive mode controls (see below). Figure 8 Figure 8 Flame Height Flame height may be controlled using the UP and DOWN buttons when in Flame Height Mode (see Figure below). -
Page 13: Mode Controls - Continued
Operation Mode Controls - continued EmberBed Light (AUX) The emberbed light may be turned on and off using the up and down buttons (see illustration below). You can adjust the brightness of the emberbed light using the built-in rheostat. Display Fahrenheit or Celsius ... -
Page 14: Battery Replacement
Operation Battery Replacement Opening the Battery Box There are (2) locking tabs in the upper corners of face of the battery box. Slide the tabs to the side and the battery tray will pop outward enough to allow you to grab it. Pull the battery tray forward and remove it from the battery box. -
Page 15: Normal Operating Odors
Operation Figure 13 Normal Operating Odors This appliance has several areas that reach high temperatures. Dust or other particles in these areas may burn and create an odor. This is normal during start-up. You may notice the smell is more acute if the appliance was left idle for a long period. - Page 16 Operation Top hook engages Bottom hook this slot in bracket engages this slot in bracket Replacement Barrier Part # 24 ProBuilder 250-05282 © Travis Industries 5/3/21 - 1529 PB 24 CF GSR2 Operation (AUST)
-
Page 17: Glass Removal
Maintenance Glass Removal Replacement Glass Frame Part # 24 CF ProBuilder 250-05285 © Travis Industries 5/3/21 - 1529 PB 24 CF GSR2 Operation (AUST) - Page 18 Maintenance The latch can come loose from the glass frame anchor. This occurs when it is turned 1/4 turn when it is disengaged. Follow the directions below to re-install the latch if it becomes loose. © Travis Industries 5/3/21 - 1529 PB 24 CF GSR2 Operation (AUST)
-
Page 19: Pb 24 Cleanface - Log Installation
Maintenance PB 24 CleanFace - Log Installation Installation Warnings NOTE: Consult the installation manual for order of installation. If using propane (LP), convert the appliance before installing the log set. If using firebacks, install them prior to installing the log set. - Page 20 Maintenance Installation Log #1 Log #1 has two holes that fit over two pins on the back burner (see photos below). Place the log in place and push it back. The log straddles the burner and does not cover any burner holes. ©...
- Page 21 Maintenance Log #2 Log#2 has a groove in the bottom of the left side. The groove fits over a metal ridge on the left end of the bottom burner. Slide the log backward until it contacts the sloped portion of the burner. Make sure the log does not block any burner holes.
- Page 22 Maintenance Log #4 Log #4 has (2) channels that align the log with the log grate. Place the log as shown below. Log #5 Place log #5 as shown below. The hole on the bottom of log #5 fits over the pin on Log #4. ©...
- Page 23 Maintenance Log #6 Place log #6 as shown below. The hole on the bottom of log #6 fits over the pin on Log #5. The charred end points towards the center of the burner. Log #7 Place log #7 as shown below. The charred end of log #7 rests on the burner. The right branch has a notch that aligns the log with the finger of the log grate.
- Page 24 Maintenance Log #8 Place log #8 as shown below. Log #8 has a notch that aligns the log with the finger of the log grate. Log #9 Place log #9 as shown below. The hole on the bottom of log #9 fits over the pin on left end of Log #1. The right end of log #9 rests on Log #7.
- Page 25 Maintenance Log #10 Place log #10 as shown below. There are (2) holes on the bottom of log #10. The round hole fits over the pin on the right end of Log #1 and the slotted hole fits on the pin on log #3. The right end of log #10 rests on Log #8.
-
Page 26: Ember Bed Glass And Ember Material Installation
Maintenance Ember bed Glass and Ember Material Installation Ember bed Glass Installation The Ember-Glo™ lights come standard on the GSR2 units. Make sure the ember skirt is in place. The skirt hooks over the front of the ember platform and slopes outward toward the glass. The skirt helps keep the glass and ember material from falling off the platform when the glass is removed. -
Page 27: Ember Material Installation
Maintenance Ember Material Installation Once the ember glass installation is complete, place a generous amount of ember material on the firebox floor on either side of the firebox. Completely cover any visible metal on the firebox floor. NOTE: Make sure no ember material is placed directly on the burner. HINT: Add a few randomly placed ember chunks over the ember bed glass to produce a more realistic appearance. -
Page 28: Maintaining Your Heater's Appearance
Maintenance Maintaining Your Heater's Appearance The appliance must be completely cool prior to conducting service. Cleaning The Glass The glass may be cleaned with a non- abrasive cleaner. To clean the inside of the glass, simply remove the glass frame, place it on a non-scratching surface, and clean the surface. -
Page 29: Bulb Replacement
Maintenance Bulb Replacement The appliance must be completely cool prior to conducting service. 35 Watt 240 Volt T4 Halogen Bulb (GY6.35 Base) The accent lights in your fireplace provide additional lighting. The bulbs will burn out over time. Replace the halogen bulbs with the following bulbs: To replace, follow the directions below: ... -
Page 30: Yearly Service Procedure
Maintenance Yearly Service Procedure WARNING: Failure to inspect and maintain the stove may lead to improper combustion and a potentially dangerous situation. We recommend the following procedures be done by a qualified technician. Shut off gas to the fireplace and let it cool for 15 minutes. Remove the glass. Inspect and operate the pressure relief mechanism to verify relief mechanisms are free from obstruction to operate. -
Page 31: Troubleshooting Table
Maintenance Troubleshooting Table Problem: Possible Cause: Don't Call for Service Until You: A gas shut off valve is turned off Check all gas shut off valves Pilot Will Not Light The gas control knob isn't turned to "PILOT" See "Starting the Pilot Light" Step C The valve control knob isn't pushed in See "Starting the Pilot Light"... -
Page 32: Replacement Parts List
Maintenance Replacement Parts List Caution: Use only Travis Industries replacement parts. Do not use substitute materials. Warning: Do not operate appliance with the glass front removed, cracked, or broken. Replacement of the glass should be done by a licensed or qualified service person. PB 24CF Part Numbers GLASS w/FRAME 250-05285... -
Page 33: Wiring Diagram
Maintenance Wiring Diagram Caution: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation. © Travis Industries 5/3/21 - 1529 PB 24 CF GSR2 Operation (AUST) -
Page 34: Safety Label
Safety Label The safety (listing) label is attached to the operating tag (chained to the heater near the gas control valve). A copy is shown below © Travis Industries 5/3/21 - 1529 PB 24 CF GSR2 Operation (AUST) -
Page 35: Conditions & Exclusions
Limited Warranty Register your Dragon Wholesaling Limited 7 Year Warranty online at lopi.com.au or complete the enclosed Warranty card and mail it within ten (10) days of the appliance purchase date to: Dragon Wholesaling Pty. Ltd. Unit 4, 16 Lexington Drive Bella Vista NSW 2153 Australia. Dragon Wholesaling warrants this gas appliance (appliance is defined as the equipment manufactured by Travis Industries, Inc.) to be defect-free in material and workmanship to the original purchaser... -
Page 36: Index
Index Index Battery Replacement ........14 Low Battery Indicator ........13 Before You Begin ..........6 Maintaining Your Heater's Appearance ... 28 Bulb Replacement ..........29 Normal Operating Odors ........15 Child-Proof Feature ........14 Pilot Fuel Conservation Timer ......9 Direct Operation ..........
