R e v e r e Fireplace Insert
Owner's
Manual
Masonry Fireplace
Insert
Zero-Clearance
(Metal) Fireplace
Insert
Save these instructions
for future reference

SAFETY NOTICE:

7

Advertisement

Table of Contents
loading

Related Manuals for Lopi Revere

Summary of Contents for Lopi Revere

  • Page 1: Safety Notice

    R e v e r e Fireplace Insert Owner's Manual Masonry Fireplace Insert Zero-Clearance (Metal) Fireplace Insert Save these instructions for future reference SAFETY NOTICE:...
  • Page 2 Introduction Important Information Introduction Mail your Warranty Card Today, and Save Your Bill of Sale.
  • Page 3 General Information Fireplace Insert Installation Preparation for Installation ... 7 Additional Accessories Needed for Installation ... 7 Installation Considerations ... 7 Operating Your Appliance Table of Contents Maintaining Your Appliance Remove Ash (if necessary)...21 Clean the Glass (if necessary) ...21 Door and Glass Inspection ...22 Creosote - Formation and Need for Removal ...2 Touch Up Paint ...23...
  • Page 4 ASHES 36" Type Clay Liner...
  • Page 5 Mobile Home This Manual...
  • Page 6 Weight...380 Lbs. Measure side and top clearances from the top plate. Measure front clearances from the stove face. 21-3/8" 24-1/4" 21-5/8" 5-3/16" 19-3/4" 18-3/4" 13-1/8" - ZC (metal) fireplaces require 1" clearance to the rear. 10" (does not include required hearth)
  • Page 7 Stove Installation (for qualified installers only) SAFETY NOTICE: Please read this entire manual before you install and use your new room heater. Failure to follow instructions may result in property damage, bodily injury, or even death. Contact local building or fire officials about restrictions and installation inspection requirements in your area.
  • Page 8 Minimum Fireplace Size Height (front) Height (rear) Width (front) Width (rear) Depth Hearth Depth* Hearth Width Facing Width Facing Height with mantel shield Mantel Height with mantel shield * This is the distance the insert protrudes from the fireplace opening plus the required 16" of hearth extension.

  • Page 9: Minimum Clearances

    Side Wall Minimum Clearances Sidewall to Insert Side Facing Top Facing with mantel shield Mantel to Insert with mantel shield Hearth (Front) Hearth (Side) Front of Insert Extension onto Hearth Masonry ZC (Metal) Fireplace Fireplace 15" 30" 13" 12" 28-1/2" 12"...
  • Page 10 This distance is the hearth step-up. The leveling bolts should stick out this far from the Fireplace base of the insert. Hearth The leveling bolts go into the holes at the rear corners of the insert.
  • Page 11 Damper See the dimensions to determine the location of the center of the Firebox flue. Block-Off Plate Template 2" Flanges Measurement "A" (for attaching the block-off plate) Measurement "B" See the dimensions to determine the location of the center of the flue. Measurement "C"...
  • Page 12 Install a non-combustible cover plate to prevent water from entering the chimney NOTE: This installation may be used with a masonry or zero clearance fireplace. The requirements in the section "Masonry Fireplace Requirements" or "Zero Clearance Fireplaace Requirements" must be fulfilled prior to installation.
  • Page 13 NOTE: This installation may be used with a masonry or zero clearance fireplace. This illustration depicts a zero clearance insert, all requirements in the section "Zero Clearance Fireplace Requirements" must be fulfilled prior to installation. Combustible Mantle Surround Panels See the section "Insert Placement Requirements"...

  • Page 14: Operating Your Appliance

    Safety Notice: Before Your First Fire Verify the Installation Curing the Paint Door Gasket Over-Firing the Stove Opening the Door Rotate the door handle. Operating Your Appliance Swing the door open. 2 to 4 hours...
  • Page 15 Use the included pull tool to operate the bypass rod Bypass Pulled Out Used for starting and re-loading Bypass Pushed In Used for normal operation...
  • Page 17 Use the air control to change the burn rate. Low Burn High Burn (air control closed) (air control open) ASHES...
  • Page 18 Turn the dial all the way counter- clockwise until it clicks off. BLOWER CONTROL Creaks and Clicks: The 3/16" and 5/16" steel may creak or click when the stove heats up and cools down - this is normal. Blower Sounds: The blower will make a slight "humm"...
  • Page 19 Wood Cut wood to length and Store the wood off the ground in a chop into quarters. covered area. Allow for airflow around the wood to dry the wood. Air Flow Wood Leads Less More Heat Heat Leads More Smoke and Creostoe Air Flow Leads...
  • Page 21 Allow the stove to fully cool. Apply glass cleaner or soapy water to the inside of the glass. Wipe with newspaper or a paper towel. For Stubborn Creosote: Dip newspaper or a paper towel in cool ashes and wipe it on the glass.
  • Page 22 High-Temperature anti-sieze may be used on the door hinges to eliminate squeaks. If the glass is damaged, replace it - see “Replacement Parts” for details. Side View of Door Handle Door Cam Exploded View Door Handle Washers Use a 9/16" Door Frame socket wrench to remove this nut.
  • Page 23 Touch-Up P a i n t Use a vacuum cleaner to remove any buildup on the screens of the blower.
  • Page 24 1/8” Hex Wrench # 20 Torx Driver NOTE: Place the glass gasket around the perimeter of the door retainer. NOTE: Glue the door gasket to the door retainer. glass glass 9/16" Wrench glass...

  • Page 25: Firebox Parts

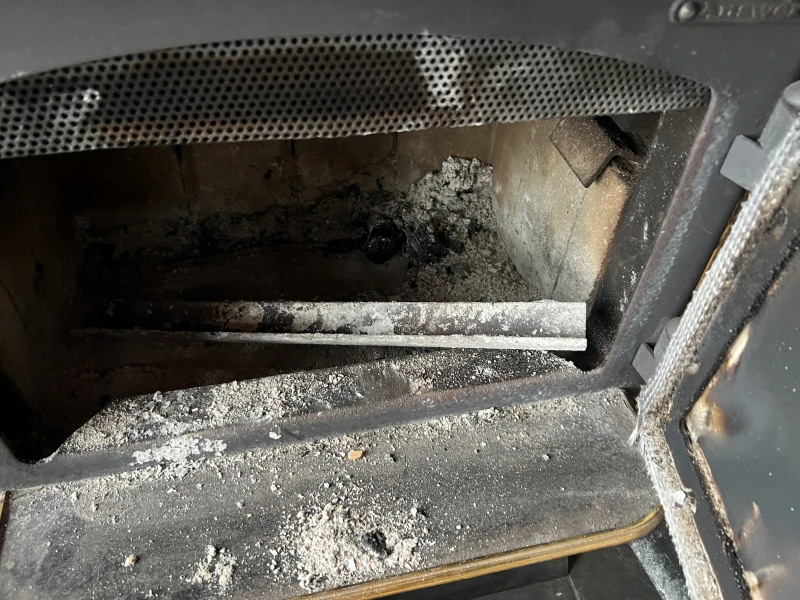

    Firebox Parts...
  • Page 26 Bypass Rod (& Yoke) Baffle Firebrick Front Baffle Support Bypass Damper Bypass Support Front Air Tube Bypass Gasket Support Tabs Center Baffle Support Air Tube Collar Air Tube Remove the left pin on the air tube collar Roll Pin Slide the air tube to the left, swing it down and remove from the firebox.
  • Page 27 Limited 7 Year Exclusions Exclusions Exclusions...

  • Page 28: Listing Label

    CLEARANCE TO COMBUSTIBLES, MASONRY FIREPLACE INSTALLATION INSERT CLEARANCE DIAGRAM MANTEL INSERT HEARTH Note: Replace glass only with 5mm Lopi ceramic OPTIONAL 125 CFM BLOWER PACKAGE Manufactured By: Certified to comply with July 1990 particulate emission standards. 2001 2002 2003 Jan. Feb. Mar. Apr. May June July Aug. Sept. Oct. Nov. Dec.
  • Page 29 Standard Screwdriver Rotate this shaft 1/4 turn clockwise until the door unlatches. Swing the door retianer open. Remove and discard the shipping latch and nut. Shipping Latch Door Shell Door Retainer 9/16" Wrench Door Retainer The indent on the door retainer slides into the clip on the door shell (on both sides).
  • Page 30 Make sure the door retainer is centered on the door shell. You can gauge the alignment by looking at the gaps here. 1/8” Hex Wrench Once the door is aligned, tighten the two set screws on the bottom of the door shell to secure the door retainer.
  • Page 31 The top plate fits into this notch. Convection Front Remove the side convection fronts from the firebox. Insert the studs on the convection fronts through the side panels. Then insert the studs through the holes on the side of the convection channel.
  • Page 32 Top Trim Panel Install the top panel so the two tabs insert into the joggle clips on the top panel Tighten the set screws from the back side with a small standard screwdriver Top Trim "L" Bracket "L" Bracket Right Side Trim Right Side...
  • Page 33 Remove the strain relief by squeezing it from the top and bottom with a pair of slip-joint pliers. Remove the two screws here Use a 3/8" nutdriver to replace the two screws and hold the front blower to the appliance. The wires tuck in here, directly behind the blower cage.
