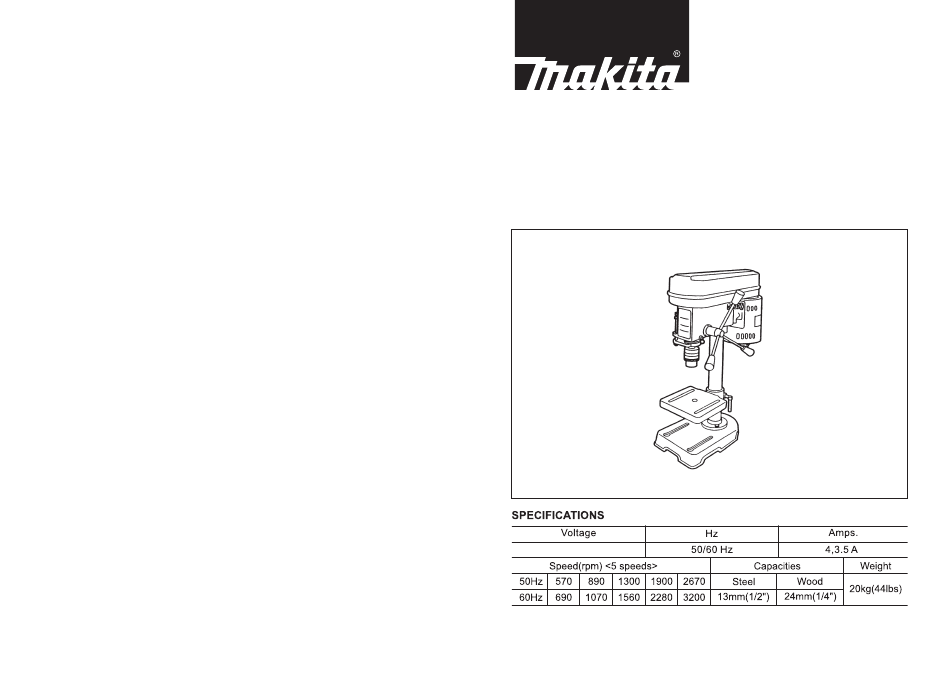

- Page 1 DRILL PRESS MODEL TB131 INSTRUCTION MANUAL 220V~240V...
- Page 2 SAFETY RULES GROUNDING 1. In the event of a malfunction or breakdown, grounding provides a path of least 1. KEEP GUARDS IN PLACE and in working order. 2. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to see that resistance for electric current to reduce the risk of electric shock.
- Page 3 Drill binds A) Excessive pressure on feed handle A) Apply less pressure Special Safety Rules For Drill press: in workpiece B) Loose belt B) Check belt tension 1. Caution: This drill press is intended for use only with drill bits. The use of other C) Loose drill C) Tighten drill with key accessories may be hazardous.
- Page 4 PARTS & ACCESSORIES OPERATION & TROUBLE SHOOTING GUIDE Knob 1. Installing Drills Insert drill into chuck jaws about 1" (25.4mm) Switch Pulley Case long. When using a small drill does not insert it so far that the jaws touch the arbor of the drill. Rod Lock Knob Make sure that the drill is centered in the chuck before tightening the chuck with the key.
- Page 5 5. Quill Spring Adjustment ASSEMBLY 1. Move the stop nuts to lowest position 1. Assembly the Column and lock in place with wrench to prevent Place column assembly on base and align quill dropping while tensioning spring. holes in column support with holes in base. 2.
- Page 6 Speed Adjustment ADJUSTMENT l. Open the pulley caـse aـnd loosـen tـhe bـelt 1. Table Adjustment tension lock handle A. Height Adjustment: To adjust up or down. loosen the clamp bolt Knob Adjusting Rod. then adjust the table to desired position, then tighten clamp bolt securely.
