Mounting the Monitor
The monitor is designed for panel mounting and requires a panel cut-out of 46 x 92 mm
(1.8 x 3.6"). The recommended panel thickness is 2...5 mm (0.08...0.2").
To mount the unit, proceed as follows:
3
1.
Pass the monitor (1) through the front of the panel (2).
2.
Support the monitor and attach mounting fixing brackets onto the
side of the monitor.
3.
Tighten the fixing screw (3) finger tight, against the back of the
panel.
4.
Ensure that the monitor is sitting flush to the front of the panel (2)
and tighten the fixing screws evenly against the back of the panel.
Caution: Do not overtighten the screws as this could cause the case to crack.
Michell Instruments
2
1
Mounting the Monitor

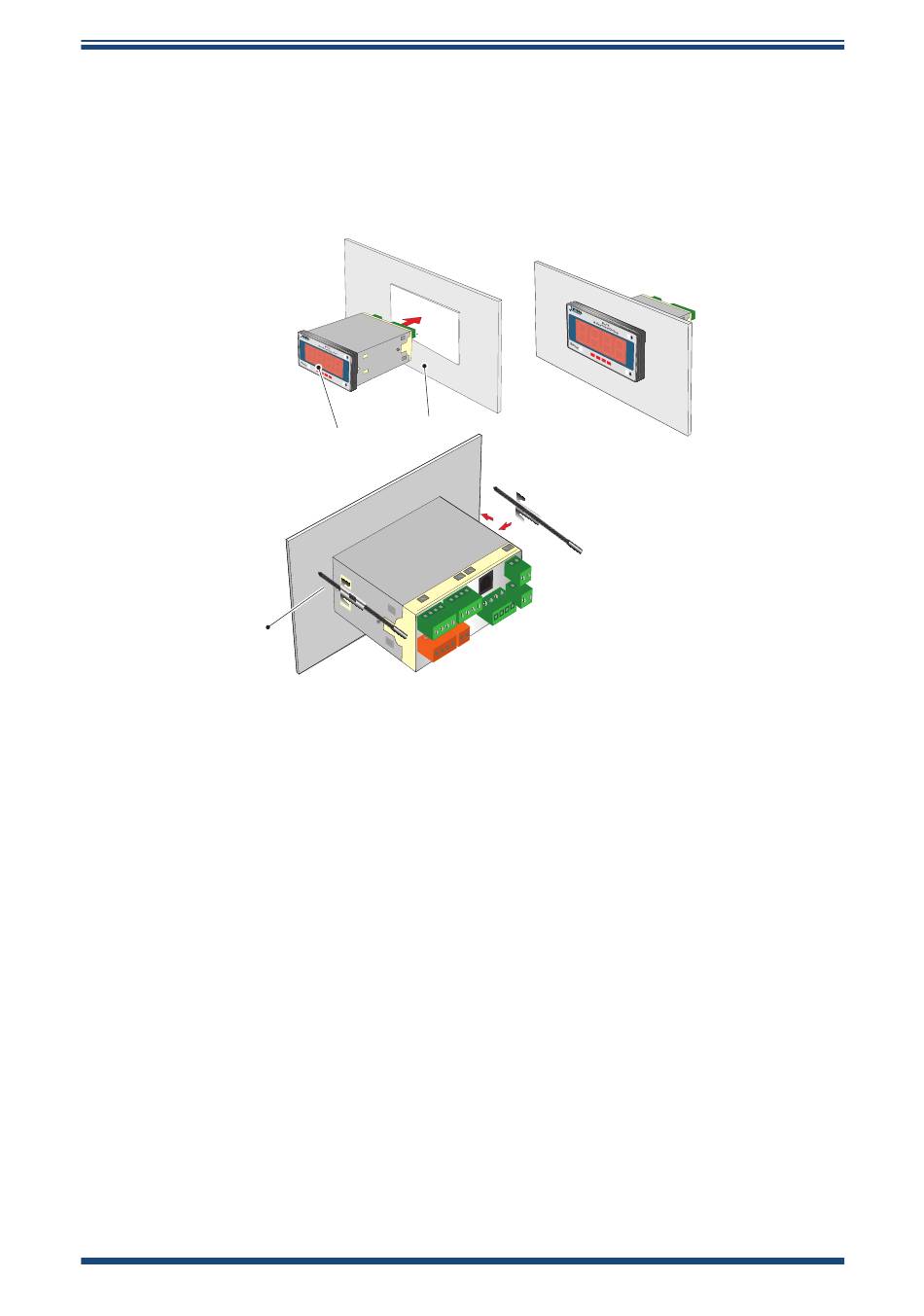

Figure 14
INSTALLATION
13
