Pura Advanced Online Hygrometer User Manual
2.8

Sensor Cables

2.8.1

Self-Assembly

For guidance on type of cable, refer to Section 2.8.2, Cable Selection for Self-Assembled
Cables.

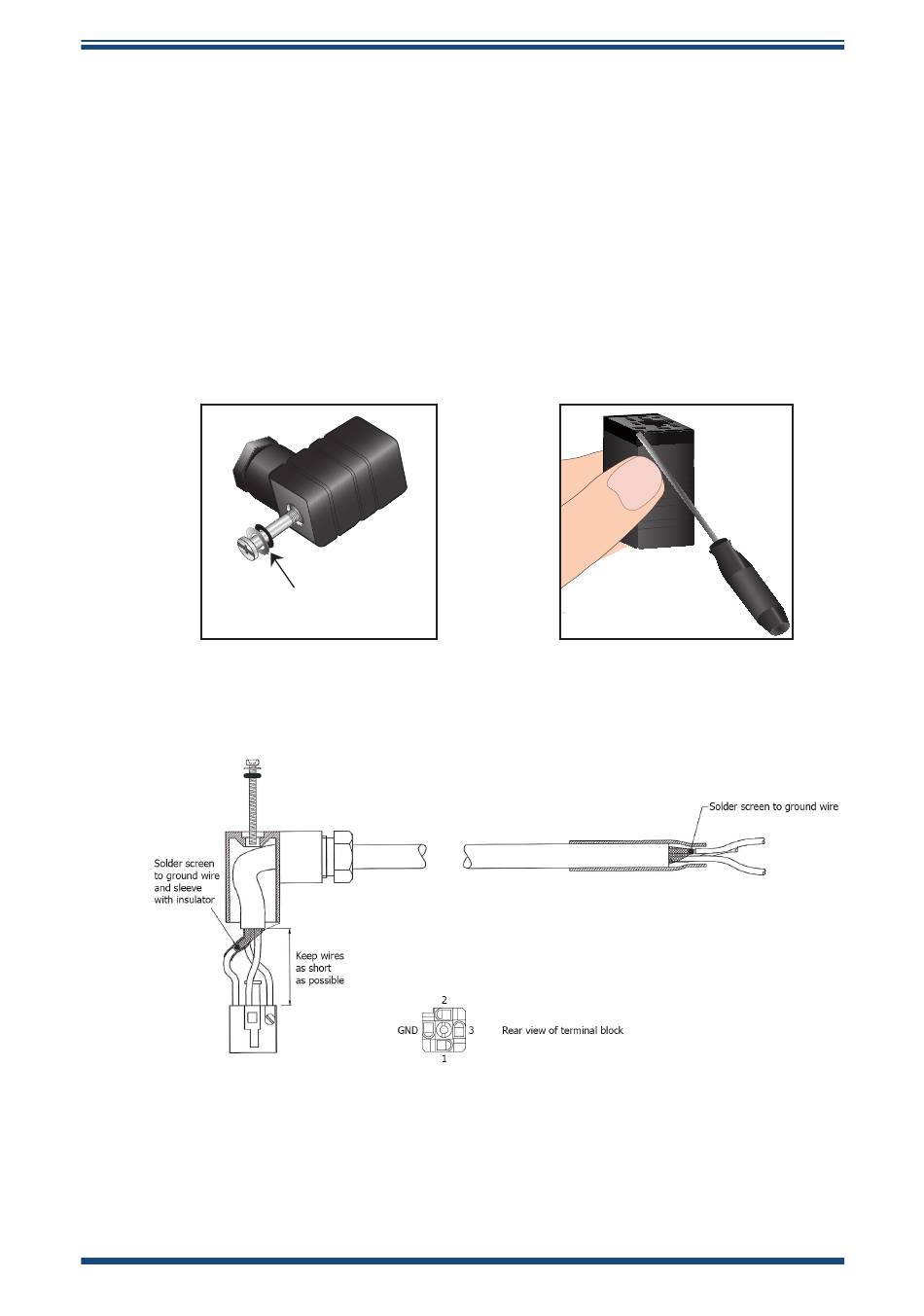

Assembly Instructions
1.
Remove the screw from the rear of the DIN connector housing.
2.
Lever the terminal block from the connector housing by inserting a small
screwdriver in the notch on the front face of the terminal block.
3.
Ensure the small sealing O-ring and washer and retained with the screw.
and washer
4.
Cable should be assembled according to Figure 11 .
2.8.2

Cable Selection for Self-Assembled Cables

It is recommended to use 3-core screened cable. For short runs, a cable with individual
conductor sizes of 24 AWG / 0.21 mm
Michell Instruments
O-ring
Connector Terminal Block Removal
Figure 10
Figure 11
Cable Assembly
would be a typical choice.
2
INSTALLATION
11
