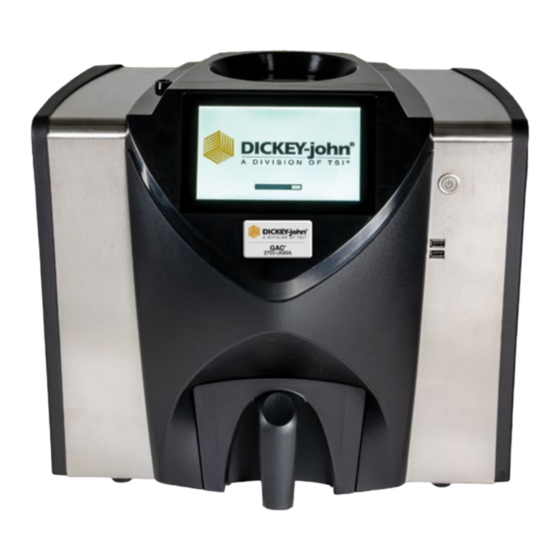

Dickey-John GAC 2700-UGMA Quick Start Manual

Grain analysis computer
Hide thumbs

Advertisement

Quick Links

Download this manual
Quick Start Guide
GAC
2700-UGMA
®
Grain Analysis Computer

Advertisement

loading
Need help?

Need help?

Do you have a question about the GAC 2700-UGMA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dickey-John GAC 2700-UGMA

Summary of Contents for Dickey-John GAC 2700-UGMA

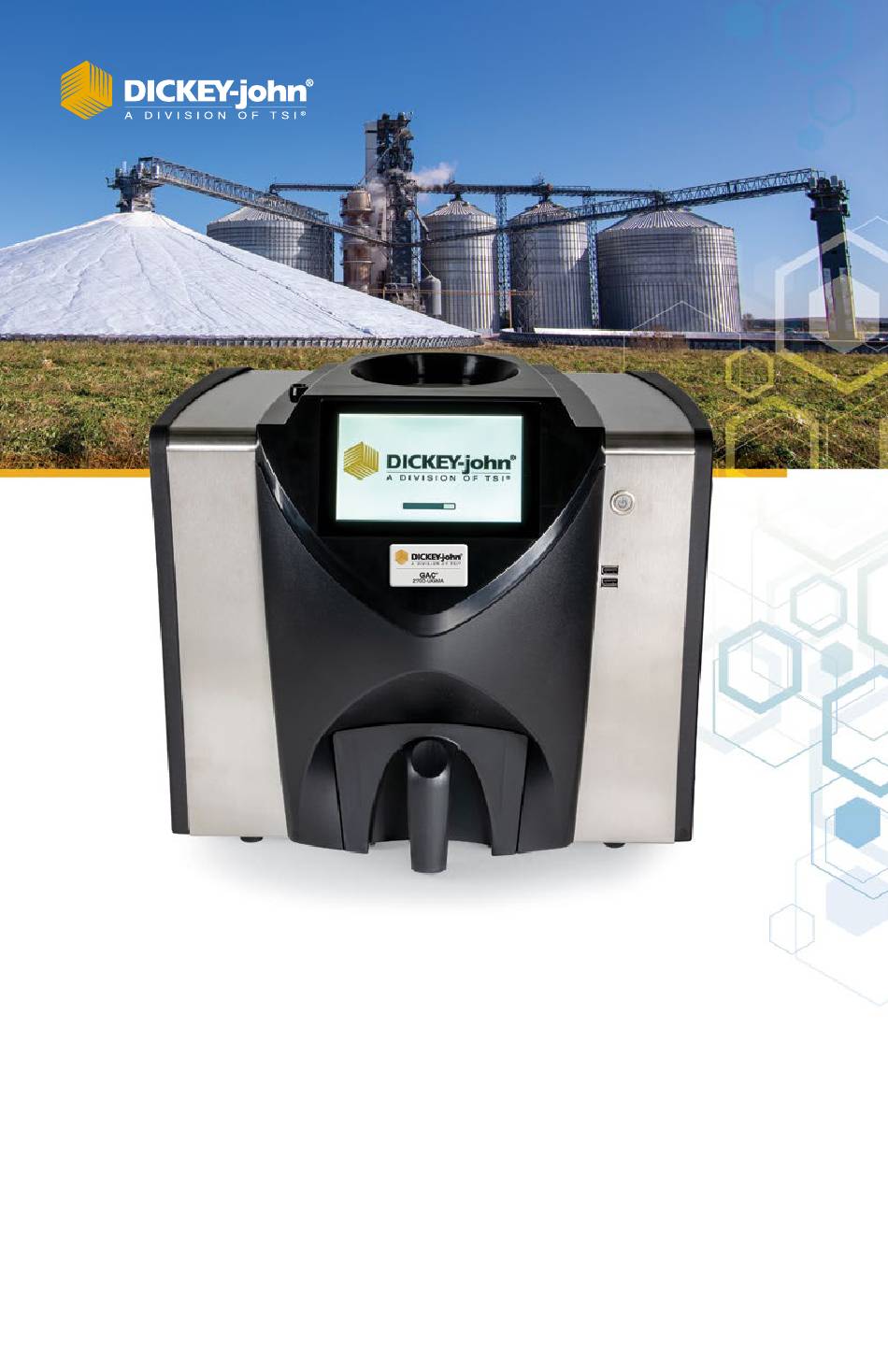

  • Page 1 Quick Start Guide 2700-UGMA ® Grain Analysis Computer...
  • Page 2 O v e r v i e w Thank you for purchasing the GAC 2700-UGMA grain moisture ® analyzer, DICKEY-john’s newest grain moisture analyzer. The GAC ® 2700-UGMA quickly tests grain and automatically calculates moisture content, test weight (bulk density), and temperature of the sample using 149 MHz / UGMA technology.
  • Page 3 U n p a c k i n g Carefully unpack the GAC 2700. Refer to the packing list below to ® verify that all items are present. Contact DICKEY-john if items are ® missing or broken. Retain the packaging for use when shipping the instrument; use of other packaging for shipment may result in damage to the instrument.
  • Page 4 P a c k i n g L i s t Description Model GAC ® 2700-UGMA Grain Moisture Analyzer Quick Start Guide AC Power Cord Allen Wrench Cleaning Brush Grain Drawer S e t t i n g u p t h e G A C ®...
  • Page 5 5. Loosen and then remove the hex bolt from the bracket on the left side wall. 6. Press down on the bracket to release. 7. Slide the bracket toward the bottom of the instrument. 8. Insert the hex bolt into the operating location hold and tighten using the Allen wrench.
  • Page 6 10. Once both brackets are tightened to the operating location, place unit upright. Reverse the process to re-install the brackets for transportation. This locks the weighing mechanism to prevent damage when moving. I n i t i a l S e t u p When powered on for the first time, the GAC 2700 will force ®...
  • Page 7 A d v a n c e d S e t u p Users should also consider using the Settings menu to configure the GAC 2700 to specific application requirements: ® Data export via serial port communication • Data printing •...

  • Page 8: External Cleaning

    M a i n t e n a n c e The GAC 2700 utilizes an RF frequency of 149 MHz to make ® measurements within the machine. It is not a strong signal strength. If potential interference is determined to originate from the GAC 2700 simple corrective steps can be taken;...

  • Page 9: Internal Cleaning

    Figure 1 Grain Hopper Sensors INTERNAL CLEANING Performing continuous tests can result in material accumulation around the critical internal components and adversely affect the measurement. Two types of cleaning are recommended on an as needed basis: • Daily clean • Extensive clean (see Operator’s Manual for instructions) DAILY CLEAN METHOD A daily clean method allows cleaning the cell and door using an automated process.
  • Page 10 C o m m o n E r r o r C o d e s ERROR ERROR CODE Empty Cell Measurement Out of Spec Empty Cell Weight Out of Spec No Products Installed Fill Motor Jammed Invalid Grain Calibration File Moisture Too High Moisture Too Low Instrument Low Temp Limit Exceeded...

  • Page 11: Warranty

    DICKEY-john within 30 days after such defect is discovered, DICKEY-john will (at our option) either replace or repair said part. This warranty does not apply to damage resulting from misuse, neglect, accident, or improper installation or maintenance;...
  • Page 12 Quick Start Guide 2700-UGMA ® Grain Analysis Computer DICKEY-john, the DICKEY-john Logo, and GAC are a registered trademarks of TSI Incorporated 5200 Dickey John Road +1 217-438-3371 ® in the United States and may be Auburn, IL 62615 +1 217-438-6012 fax protected under other country’s...
