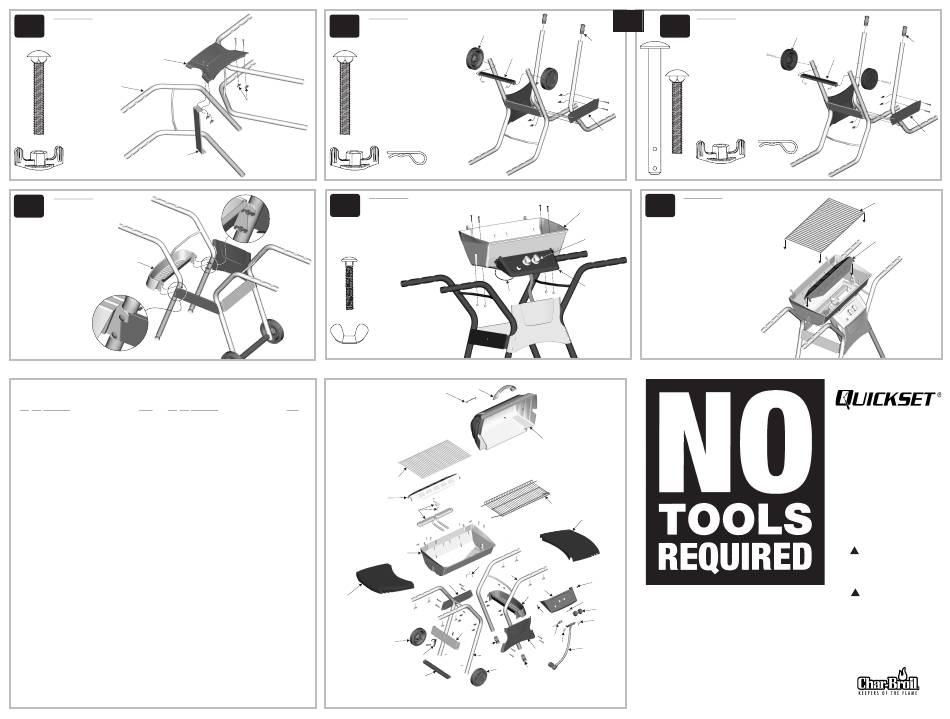

Char-Broil QUICKSET 463861906 Operating Instructions

1
Parts to assemble: A. Lay leg assemblies on their sides.
2 Leg Assembly B. Place front panel on legs.
1 Front Panel C. Braces attach to inside of legs.
1 Side Support Brace D. Secure with carriage bolts and tee knobs.
4 Carriage Bolt, 2" NOTE: Leave tee knobs loose on right side.
4 Plastic Tee Knob
Front Panel
Leg Assembly
Qty. 4
Side Support Brace
(Fits inside legs.)
NOTE: To prevent scratching, lay grill on packing material to assemble.
Qty. 4
3
Parts to assemble:
1 Condiment Basket
A. Stand cart upright.
B. Place condiment basket
hooks over front panel bolts
on inside of front leg.
A
See inset .
C.. Place condiment basket
hooks over back support
Condiment
brace bolts on outside of
Basket
B
brace. See inset .
D.. Fully tighten tee knobs
on both legs.
B
Parts List - Model 463861906
Key Qty. Description Part # Key Qty. Description
A 1 SwingAway. . . . . . . . . . . . . . . . . . . . . . . . . . 4152125 W 1 Grease Clip . . . . . . . . . . . . . . . . . . . . . . . . . 5156607
B 1 Cooking Grate . . . . . . . . . . . . . . . . . . . . . . . 4152741 1 Hardware Bag, Cart . . . . . . . . . . . . . . . . . . . 4254079
C 1 Condiment Basket . . . . . . . . . . . . . . . . . . . . 4154269 2 Hardware Bag, Shelves . . . . . . . . . . . . . . . . 4254050
D 1 Handle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154474
E 2 Side Shelf . . . . . . . . . . . . . . . . . . . . . . . . . . . 4154372
F 2 Leg Extender . . . . . . . . . . . . . . . . . . . . . . . . 4154540
G 2 Wheel Assembly. . . . . . . . . . . . . . . . . . . . . . 4310002
H 1 Back Support Brace . . . . . . . . . . . . . . . . . . . 4500250
I 1 V-Bar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4500291
J 1 Tank Support Bracket . . . . . . . . . . . . . . . . . . 4502093
K 2 Leg Assembly . . . . . . . . . . . . . . . . . . . . . . . . 4502097
L 1 Front Panel. . . . . . . . . . . . . . . . . . . . . . . . . . 4502232
M 1 Side Support Brace . . . . . . . . . . . . . . . . . . . 4502373
N 4 #10x1/2", T-20, Self-Tap Screw . . . . . . . . . . 4080043
O 2 Valve Clip . . . . . . . . . . . . . . . . . . . . . . . . . . . 4151043
P 1 Burner/Collector Assembly . . . . . . . . . . . . . . 4505085
Q 1 Control Panel Assembly . . . . . . . . . . . . . . . . 4530248
R 2 Control Knob . . . . . . . . . . . . . . . . . . . . . . . . 4154470
S 1 Grill Bottom. . . . . . . . . . . . . . . . . . . . . . . . . . 4580468
T 1 Grill Lid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4580190
Optional Assembly Hardware
U 1 Tank Retainer Wire. . . . . . . . . . . . . . . . . . . . 4151018
We realize some customers prefer to use tools.
V 1 Logo Plate . . . . . . . . . . . . . . . . . . . . . . . . . . 4157147 nuts have been provided for you to use.
2
Parts to assemble:
1 Back Support Brace
4 Carriage Bolt, 2"
4 Plastic Tee Knob
2 Wheel Assembly
1 Tank Support Bracket
2 Hitch Pin
2 Leg Extender
A. Turn assembly upside-down.
B. Secure back brace and side brace to left leg
and back brace to right leg with carriage bolts
and tee knobs.
on right side.
Leave these loose.
C . Insert wheel assemblies into legs and bracket.
Bracket fits inside legs.
D. Secure with hitch pin in axle bolt hole closest to leg.
E. Push leg extenders into right legs.
Qty. 4
Qty. 4
4
Parts to assemble:
A 1 Grill Bottom Assembly
4 Carriage Bolt, 1¼"
4 Metal Wing Nut
2 Control Knob
A. Stand cart upright.
B. Make sure ignitor wire is connected
to ignitor.
C. Place grill bottom onto supports. Control
panel overlaps front panel.
D. Secure with carriage bolts and wing nuts.
E. Press control knobs onto valves.
Qty. 4
Qty. 4
Part#
I
E
G
Optional hex
Wheels with attached axle.
Wheel Assembly
Tank
Support
Bracket
NOTE: Leave tee knobs loose
Qty. 2
Ignitor
Wire
D
V
T
B
A
P
S
W
K
H
Q
C
N
M
Q
F
O
L
U K
G
F
J
2
OR Parts to assemble:
Wheels with separate axle bolt.
1 Back Support Brace
4 Carriage Bolt, 2"
4 Plastic Tee Knob
1 Tank Support Bracket
Leg Extender
2 Wheel
2 Axle Bolt
2 Hitch Pin
2 Leg Extender
A. Turn assembly upside-down.
B. Secure back brace and side brace to left leg
and back brace to right leg with carriage bolts
and tee knobs. NOTE: Leave tee knobs loose
on right side.
C . Insert axle bolts through wheels, left legs
and bracket. Bracket fits inside legs.
D. Secure with hitch pins in ends of axle bolts.
E. Push leg extenders into right legs.
Back
Support
Brace
Qty. 4
Qty. 4
Qty. 2
5
Parts to assemble:
1 V Bar
1 Cooking Grate
Grill Bottom
A. Place V bar onto supports at each
end of grill bottom.
B. Place cooking grate onto grill bottom.
Control Knobs
Control Panel
NOTE:
Ceramic briquets are not required.
E
N
Register your grill online at
WWW.GRILLREGISTRATION.COM
N
R
STOP
O
If you have any problems with this product,
Q call 1-800-241-7548
Open 8:00 A. M. To 6:00 P. M. EST
Monday - Friday
Before returning this product to the store.
We can help with damaged or missing parts,
assembly and operation questions.
Printed in USA 463861906 / 7001266 (12-09-05) 2
Wheel Assembly
Tank
Leg Extender
Support
Bracket
Back
Support
Brace
Qty. 2
Cooking Grate
V Bar
463861906
ASSEMBLY MANUAL
THIS GRILL IS FOR
OUTDOOR USE ONLY
CAUTION: Read and follow all safety
statements, assembly instructions,
and use and care directions before
attempting to assemble and cook.
INSTALLER/ASSEMBLER: Leave
these instructions with consumer.
CONSUMER: Keep this manual for
future reference.
WARNING
!
Failure to follow all manufacturer's
instructions could result in serious
personal injury and/or property
damage.
CAUTION
!
Some parts may contain sharp edges
– especially as noted in the manual!
Wear protective gloves if necessary.
If you have any questions or need
assistance during assembly, please
call 1-800-241-7548.
Visit us on the web at:
www.charbroil.com
C O L U M B U S , G A
© 2005 W. C. Bradley Co., All Rights Reserved
