Ecco 200 Series Installation & Operating Instructions

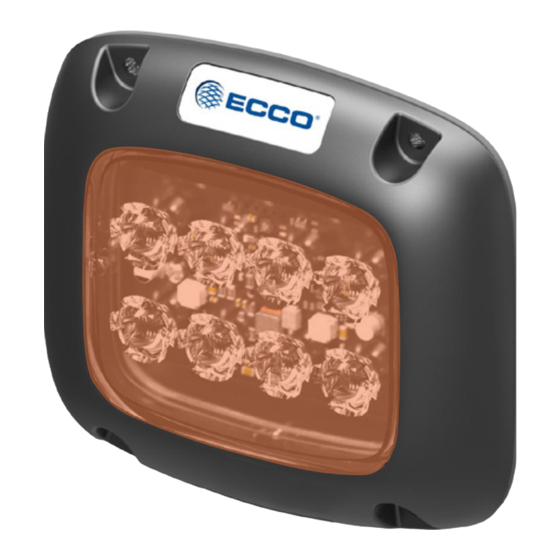

Complying with all Australian bus standards, the 200 series is the new generation
LED School Bus Light. Featuring enhanced styling and improved performance, the
200 Series LED School Bus Lights include default steady burn operation
compatible with existing school bus flashers. Alternating flash pattern are also
programmable with flash rate in accordance with the school bus regulations of 90
FPM for each lamp (or 180 FPM combined).
The low-profile LED lamp has a modern design featuring a super-slim surface
mount profile and a corrosion resistant bezel. The 200 Series is fully sealed
against moisture and dust and operates on 12V and 24V vehicles.
Do not install and/or operate this safety product unless you have read and understand the safety
information contained in this manual.
1. Proper installation combined with operator training in the use, care, and maintenance of emergency warning devices are essential to ensure the
safety of you and those you are seeking to protect.
2. Exercise caution when working with live electrical connections.
3. This product must be properly grounded. Inadequate grounding and/or shorting of electrical connections can cause high current arcing, which can
cause personal injury and/or severe vehicle damage, including fire.
4. Proper placement and installation are vital to the performance of this warning device. Install this product so that output performance of the system is
maximised and the controls are placed within convenient reach of the operator so that they can operate the system without losing eye contact with
the roadway.
5. Do not install this product or route any wires in the deployment area of an air bag. Equipment mounted or located in an air bag deployment area
may reduce the effectiveness of the air bag or become a projectile that could cause serious personal injury or death. Refer to the vehicle owner's
manual for the air bag deployment area. It is the responsibility of the user/operator to determine a suitable mounting location ensuring the safety of
all passengers inside the vehicle particularly avoiding areas of potential head impact.
6. It is the responsibility of the vehicle operator to ensure during use that all features of this product work correctly. In use, the vehicle operator should
ensure the projection of the warning signal is not blocked by vehicle components (i.e., open trunks or compartment doors), people, vehicles or other
obstructions.
7. The use of this or any other warning device does not ensure all drivers can or will observe or react to a warning signal. Never take the
right-of-way for granted. It is your responsibility to be sure you can proceed safely before entering an intersection, driving against traffic, responding
at a high speed, or walking on or around traffic lanes.
8. This equipment is intended for use by authorised personnel only. The user is responsible for understanding and obeying all laws regarding warning
signal devices. Therefore, the user should check all applicable city, state, and federal laws and regulations. The manufacturer assumes no liability
for any loss resulting from the use of this warning device.
Important!
This unit is a safety device and it must be connected
to its own separate, fused power point to assure its continued
operation should any other electrical accessory fail.
Size: Height = 118mm
Width = 130mm
Depth = 21.5mm
Certifications ECE R10, RCM & IP67
BOX includes: 1x 200 series LED Bus Light
1x Installation Manual
1x Mounting Kit
1x Foam Gasket
1 of 4
200 SERIES LED SCHOOL BUS LIGHT
( ± 2mm foam thickness)
INSTALLATION & OPERATING
INSTRUCTIONS
Caution:
When drilling into any vehicle surface, make sure the
area is free from any electrical wires, fuel lines, vehicle upholstery,
etc. that could be damaged
