GE AJCS 06 LZ Owner's Manual page 20

Installation Instructions
Read carefully, then follow step-by-step
4

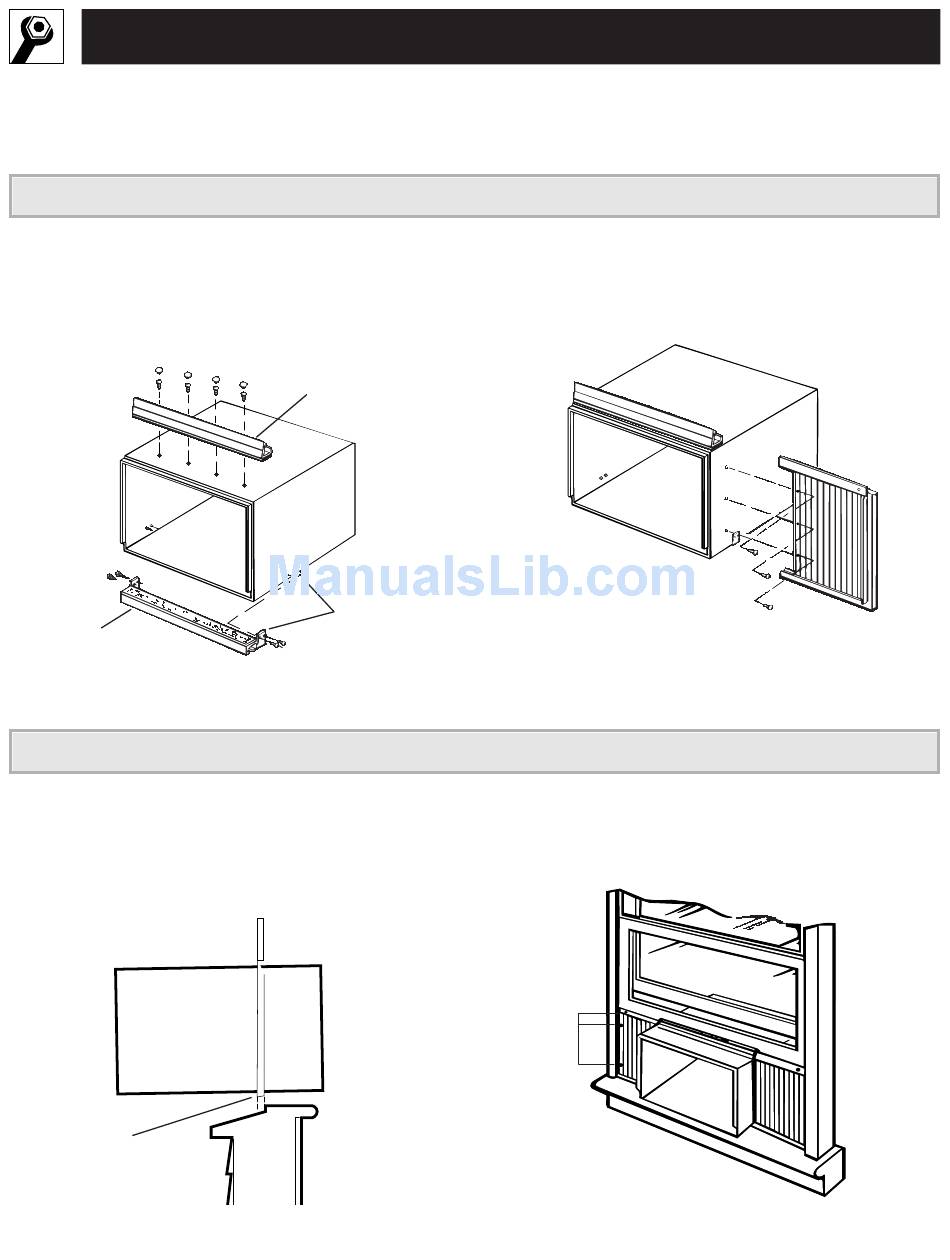

Prepare the Case
1 Install the top mounting rail with type B screws.
2 Attach the sill channel with type B screws.
Align the holes on the bracket of the sill
channel with the holes in the case.
Sill channel
5
Install the Case in the Window
1 Open the window and center the case in the
window. Lower the window behind the top
mounting rail. This should provide a 1/8² tilt
toward the outside.
Case should have
a slight tilt down
to the outside.
Place the sill
channel into
the stool offset.
20
Mounting rail
Align
holes
3 Slide the right and left accordion curtains into
the top mounting rail and sill channel. Secure
with type B screws.
2 Extend curtains and drill pilot holes in the side
of the window and the window sash. Attach the
curtains with 3 screws on each side.
Type A
screws
