ASSEMBLY
INSTRUCTION
2.5 hrs
APPROXIMATE ASSEMBLY TIME
EXCLUDING GLUE SETTING TIME
8 m m
f
REQUIRED ASSEMBLY TOOLS
DESCRIPTION:
Type 112
BOOM
2 PERSON ASSEMBLY
FLOOR AREA
CEILING HEIGHT
2,5M X 2,5M
REQUIRED ASSEMBLY SPACE
M E A
S U R
E
ASSEMBLED DIMENSIONS
2,0M
1/13
Advertisement
Related Manuals for LV Furniture BOOM 112
Summary of Contents for LV Furniture BOOM 112

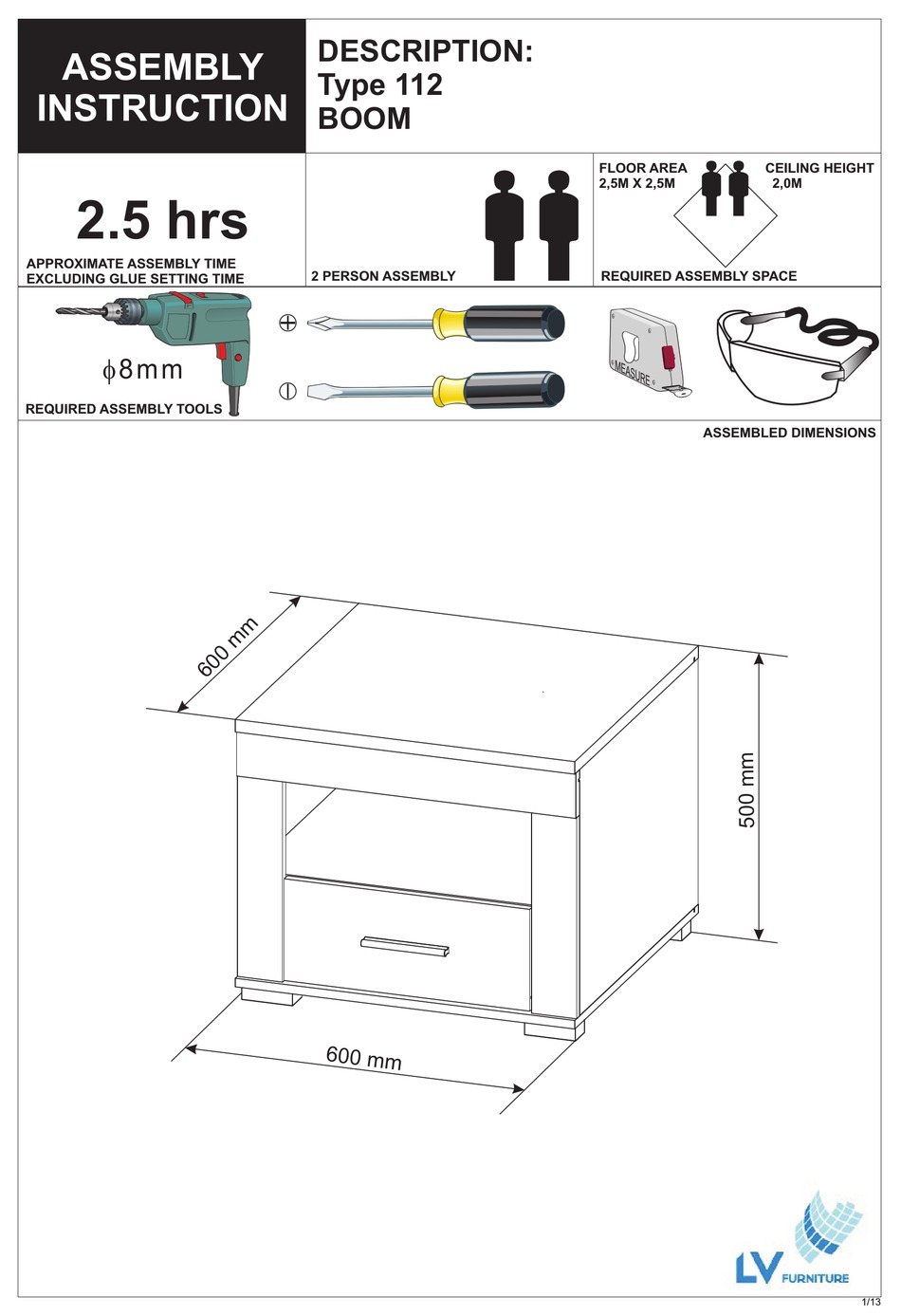

- Page 1 DESCRIPTION: ASSEMBLY Type 112 INSTRUCTION BOOM FLOOR AREA CEILING HEIGHT 2,5M X 2,5M 2,0M 2.5 hrs APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE EXCLUDING GLUE SETTING TIME 8 m m M E A S U R REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS 1/13...
-
Page 2: Part List
PART LIST NO. PARTS LIST (1) LEFT SIDE PANEL (2) RIGHT SIDE PANEL (3) BOTTOM PANEL (4) TOP PANEL (5) LEFT/RIGHT DIVIDER HORIZONTAL DIVIDER (7) BACK PANEL (8) TOP PLINTH LEFT/RIGHT PLINTH (10) DRAWER FRONT (11) DRAWER PANEL (12) DRAWER BOTTOM 2/13... -
Page 3: Hardware List
HARDWARE LIST 3,5x30mm 6x9,5mm 3,5x13mm 8x28mm 15x12mm SCREW SECURING SCREW GRUB SCREW CAM BOLT DOWEL CAM COVER CAM LOCK BRACKET 4x40mm 4x9mm 3x20mm SCREW SQUARE HANDLE GLUE NYLON FOOT SCREW LEVEL QUOIN SCREW 1x Left / 1x Right L=310 BALL RUNNER 3/13... - Page 4 Top Tips before you start! Please check that all parts are present before you start the assembly of your furniture, as once assembled, the furniture is exempt from our home approval policy. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step.
- Page 5 SPECIAL TIPS FOR FITTING CAM-LOCKS AND CAM-PILLARS CAM-LOCK Align with long point of cross WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTILE SECURE WRONG CORRECT Pillar head needs to be in centre CAM-PILLAR Tighten until shoulder is flush with panel.
- Page 6 STEP 1 GLUE ONCE DRAWER IS ASSEMBLED YOU MUST LEAVE FOR 1 HOUR TO ALLOW GLUE TO SET. 6/13...
- Page 7 STEP 2 15x12mm 8x28mm CAM BOLT DOWEL CAM LOCK 7/13...
- Page 8 STEP 3 4x40mm 15x12mm 8x28mm NYLON FOOT SCREW CAM BOLT DOWEL CAM LOCK 180° 8/13...
- Page 9 STEP 4 1x Left / 1x Right 6x9,5mm 8x28mm L=310 3,5x13mm GRUB SCREW DOWEL SCREW BALL RUNNER SQUARE (LEFT) (RIGHT) 2 8 8 3 3 , 5 30,5 2 5 6 2 5 6 9/13...
- Page 10 STEP 5 1/2 TURN CLOCKWISE. STEP 6 1/2 TURN CLOCKWISE. 10/13...
- Page 11 STEP 7 1/2 TURN CLOCKWISE. STEP 8 3x20mm SECURING BRACKET SCREW 90° 3x20mm 11/13...
- Page 12 STEP 9 3,5x13mm SCREW STEP 10 15x12mm CAM LOCK 1/2 TURN CLOCKWISE. 12/13...
- Page 13 STEP 11 3,5x30mm 4x9mm CAM COVER SCREW HANDLE SCREW LEVEL QUOIN 13/13...
