ASSEMBLY
INSTRUCTION
2.5 hrs
APPROXIMATE ASSEMBLY TIME
EXCLUDING GLUE SETTING TIME
8 m m
f
REQUIRED ASSEMBLY TOOLS
338 mm
DESCRIPTION:
Type 037
BOOM
2 PERSON ASSEMBLY
888 mm
FLOOR AREA
2,5M X 2,5M
REQUIRED ASSEMBLY SPACE
M E A
S U R
E
ASSEMBLED DIMENSIONS
CEILING HEIGHT
2,0M
1/14
Advertisement
Related Manuals for LV Furniture BOOM 037
Summary of Contents for LV Furniture BOOM 037

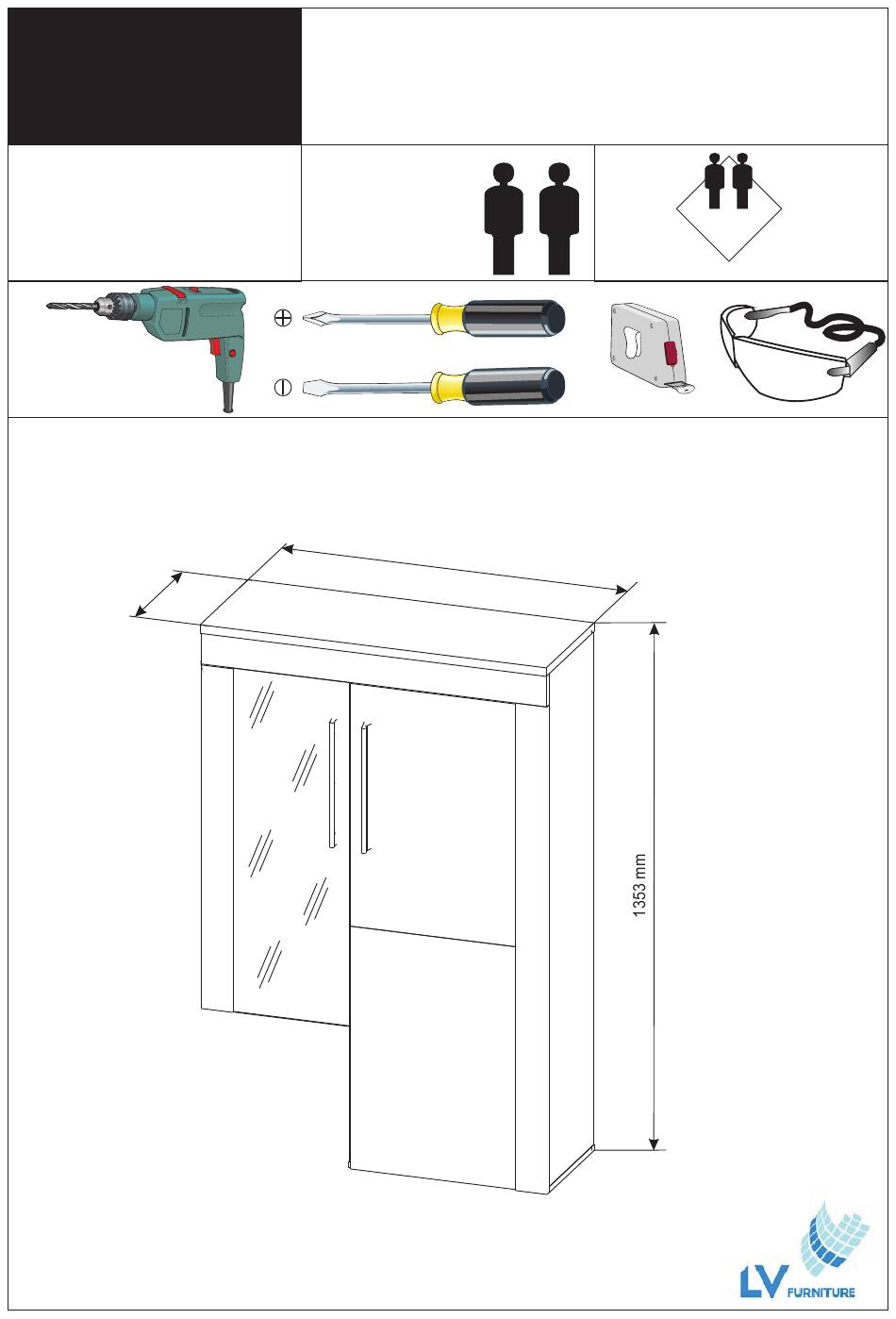

- Page 1 DESCRIPTION: ASSEMBLY Type 037 INSTRUCTION BOOM FLOOR AREA CEILING HEIGHT 2,5M X 2,5M 2,0M 2.5 hrs APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE EXCLUDING GLUE SETTING TIME 8 m m M E A S U R REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS 888 mm 338 mm...
-
Page 2: Part List
PART LIST NO. PARTS LIST NO. PARTS LIST (1) LEFT SIDE PANEL (25) LEFT DOOR W/GLASS (2) RIGHT SIDE PANEL (26) RIGHT DOOR (3) CENTER DIVIDER (40) PLINTH (34) TOP PANEL (5) HORIZONTAL DIVIDER (6) BOTTOM PANEL (7) RIGHT HORIZONTAL DIVIDER (8) SHELF (9) SHELF GLASS (13) LEFT BACK PANEL... -
Page 3: Hardware List
HARDWARE LIST 4x16mm 3,5x30mm 3x20mm 15x12mm 8x28mm SCREW SCREW SCREW SECURING CAM BOLT DOWEL CAM COVER CAM LOCK BRACKET 6,3x13mm 3,5x13mm SCREW SLEEVE NYLON FOOT GRUB SCREW GLASS 4x40mm METAL HANDLE SQUARE SCREW PLATE 3/14... - Page 4 HARDWARE LIST METAL PLATE HINGE PLATE HINGE PLATE 90° HINGE HINGE 3,5x13mm 4x35mm 5x16mm 5x16mm LEVEL QUOIN PLASTIC ANGLE SHELF SHELF GLASS DOWEL SUPPORT SUPPORT 4/14...
- Page 5 Top Tips before you start! Please check that all parts are present before you start the assembly of your furniture, as once assembled, the furniture is exempt from our home approval policy. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step.
- Page 6 SPECIAL TIPS FOR FITTING CAM-LOCKS AND CAM-PILLARS CAM-LOCK Align with long point of cross WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTILE SECURE WRONG CORRECT Pillar head needs to be in centre CAM-PILLAR Tighten until shoulder is flush with panel.
- Page 7 STEP 1 15x12mm 8x28mm 3,5x13mm 6,3x13mm 5x16mm 5x16mm CAM BOLT DOWEL SQUARE CAM LOCK HINGE PLATE SCREW GRUB SCREW SHELF SHELF GLASS SUPPORT SUPPORT 180° 7/14...
- Page 8 STEP 2 4x40mm 8x28mm 6,3x13mm 15x12mm 5x16mm CAM BOLT DOWEL NYLON FOOT GRUB SCREW SCREW HINGE PLATE SHELF GLASS CAM LOCK SUPPORT 180° 8/14...
- Page 9 STEP 3 3,5x30mm 4x16mm 3,5x13mm SCREW SCREW SLEEVE SCREW HANDLE HINGE HINGE GLASS 9/14...
- Page 10 STEP 4 1/2 TURN CLOCKWISE. PLEASE FOLLOW THE MARK ON THE SIDES TO FIX THE SCREWS ACCORSS THE BACK PANNELS. 10/14...
- Page 11 STEP 5 3x20mm SECURING SCREW METAL BRACKET PLATE 1/2 TURN CLOCKWISE. 3x20mm 11/14...
- Page 12 STEP 6 3,5x13mm CAM COVER METAL LEVEL QUOIN SCREW PLATE 3,5x13 LED Lights in type 317/319 12/14...
- Page 13 STEP 7 13/14...
- Page 14 STEP 8 3,5x13mm 4x35mm PLASTIC ANGLE DOWEL “ u s e d r i l l f 8 m m ” 14/14...
