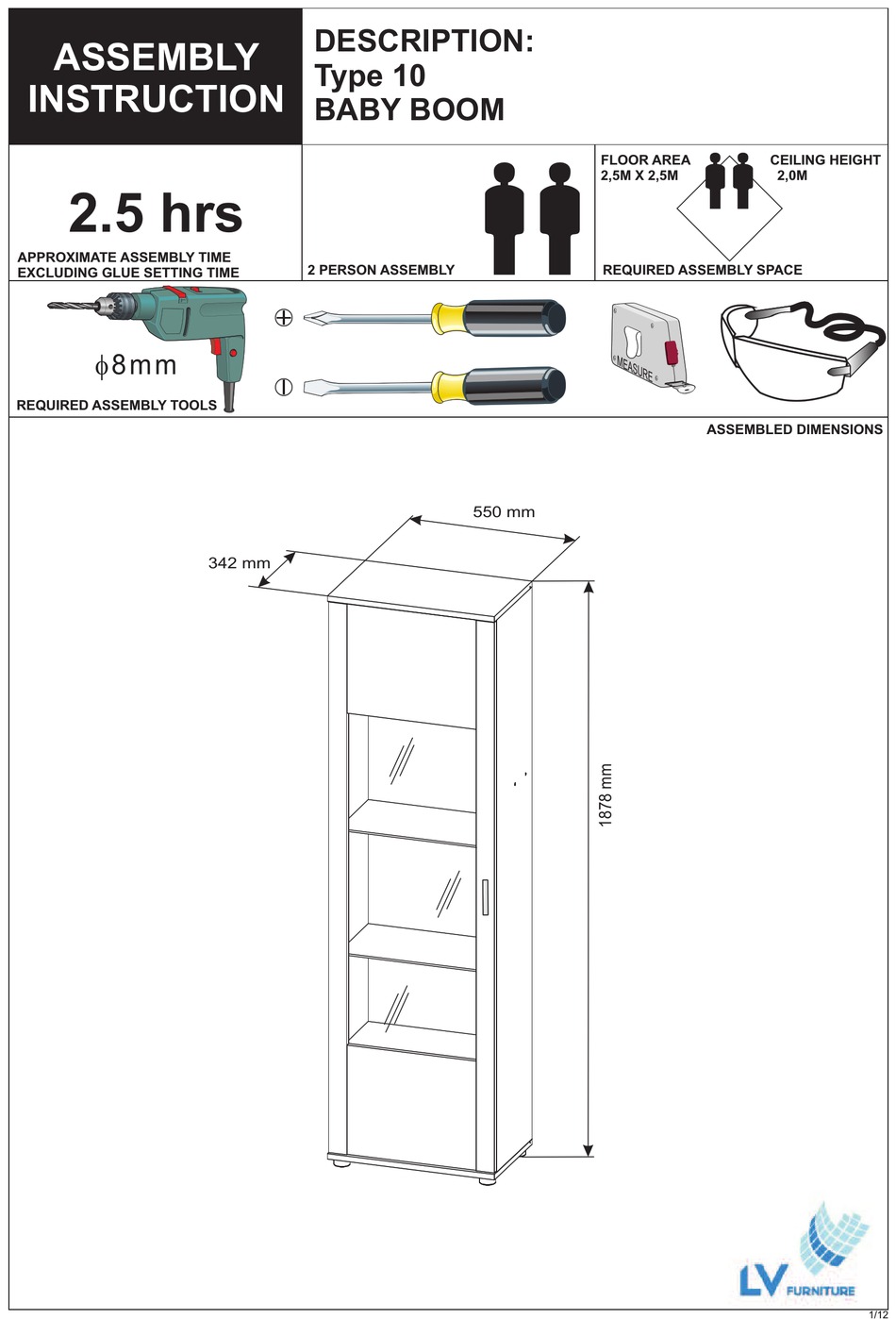

ASSEMBLY
INSTRUCTION
2.5 hrs
APPROXIMATE ASSEMBLY TIME
EXCLUDING GLUE SETTING TIME
f8 m m
REQUIRED ASSEMBLY TOOLS
DESCRIPTION:
Type 10
BABY BOOM
2 PERSON ASSEMBLY
342 mm
FLOOR AREA
2,5M X 2,5M
REQUIRED ASSEMBLY SPACE
M E A
S U R
550 mm
CEILING HEIGHT
2,0M
E
ASSEMBLED DIMENSIONS
1/12
Advertisement
Related Manuals for LV Furniture BABY BOOM 10
Summary of Contents for LV Furniture BABY BOOM 10
- Page 1 DESCRIPTION: ASSEMBLY Type 10 INSTRUCTION BABY BOOM FLOOR AREA CEILING HEIGHT 2,5M X 2,5M 2,0M 2.5 hrs APPROXIMATE ASSEMBLY TIME 2 PERSON ASSEMBLY REQUIRED ASSEMBLY SPACE EXCLUDING GLUE SETTING TIME f8 m m M E A S U R REQUIRED ASSEMBLY TOOLS ASSEMBLED DIMENSIONS 550 mm 342 mm...
- Page 2 PART LIST max. NO. PARTS LIST (1) BOTTOM PANEL (2) TOP PANEL (3) LEFT SIDE PANEL (4) RIGHT SIDE PANEL BACK PANEL (6) GLASS SHELF (7) DOOR (11) GLASS DOOR (12) SHELF 2/12...
- Page 3 HARDWARE LIST 4x30mm 3x20mm 8x28mm 15x12mm SCREW SCREW SECURING DOWEL CAM COVER CAM LOCK CAM BOLT BRACKET 4x22mm 6,3x13mm 3,5x13mm 3x16mm SCREW NYLON FOOT GRUB SCREW SCREW SCREW 5x16mm L-64 GRIP DOOR SHELF GLASS GLASS HANDLE LED LIGHTS SUPPORT 3/12...
- Page 4 HARDWARE LIST HINGE PLATE 3,5x13mm HINGE 4x35mm PLASTIC ANGLE DOWEL 4/12...
- Page 5 Top Tips before you start! Please check that all parts are present before you start the assembly of your furniture, as once assembled, the furniture is exempt from our home approval policy. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the parts required for that step.
- Page 6 SPECIAL TIPS FOR FITTING CAM-LOCKS AND CAM-PILLARS CAM-LOCK Align with long point of cross WHEN FITTING CAMS ENSURE STARTING POSITION IS CORRECT BEFORE YOU INSERT CONNECTING CAM-PILLAR TURN CLOCKWISE UNTILE SECURE WRONG CORRECT Pillar head needs to be in centre CAM-PILLAR Tighten until shoulder is flush with panel.
- Page 7 STEP 1 CAM BOLT 4x22mm CAM BOLT NYLON FOOT SCREW 35mm 35mm 180° 7/12...
- Page 8 STEP 2 15x12mm 8x28mm CAM LOCK DOWEL STEP 3 5x16mm 15x12mm 8x28mm 6,3x13mm SHELF GLASS DOWEL HINGE PLATE GRUB SCREW SUPPORT CAM LOCK CAM BOLT Left Side STEP 4 5x16mm 15x12mm 8x28mm SHELF GLASS DOWEL CAM LOCK SUPPORT CAM BOLT Right Side 8/12...
- Page 9 STEP 5 Left Side Right Side STEP 6 180° 9/12...
- Page 10 STEP 7 3x20mm SECURING SCREW BRACKET STEP 8 3x16mm 3,5x13mm 4x30mm L-64 GRIP DOOR SCREW SCREW GLASS SCREW HANDLE HINGE 3,5x13 70mm 3,0x16 15mm 10/12...
- Page 11 STEP 9 3,5x13mm 4x35mm PLASTIC ANGLE CAM COVER DOWEL LED Lights for type 06 “ u s e d r i l l 8 m m ” 11/12...
- Page 12 STEP 10 12/12...
